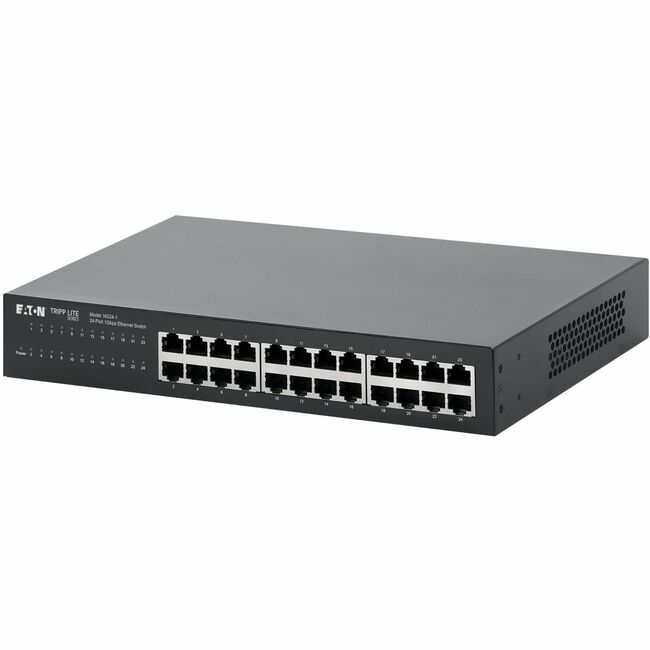

Eaton NG24-1 Tripp Lite Series 24-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Enclosure

Name: Eaton NG24-1 Tripp Lite Series 24-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Enclosure
Brand: Eaton
SKU: NG24-1
Price: 201.48 USD
Availability: InStock

Part Number:

NG24-1

151 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

151 pieces ready to ship - additional units ship in 7-10 business days.

$201.48

USD + Applicable Tax

Eaton Tripp Lite Series 24-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Enclosure - 24 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 17 W Power Consumption - Twisted Pair, Optical Fiber - Black - 1U High - Rack-mountable, Desktop - 5 Year Limited Warranty

Provides a Gigabit Ethernet connection for multiple devices in your small office network, workgroup or data center
Helps you share large bandwidth-intensive files to improve work efficiency
24 twisted-pair auto-negotiable RJ45 ports support auto MDI/MDIX functionality
Unused ports shift into low-power state without interrupting network connection
Consumes just 10W maximum input power to help you save energy costs
Designed for either desktop installation or 1U rack mounting with included hardware
3-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	NG24-1
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	NG24-1
Product Name	NG24-1 24-Port Gigabit Ethernet Unmanaged Switch
Marketing Information	24-Port Unmanaged Gigabit Ethernet Switch for Small Offices and Workgroups The energy-efficient NG24-1 network switch connects up to 24 devices, such as computers, routers, printers and servers, to a Gigabit Ethernet network and allows them to communicate with each other. It's recommended for your small office or data center, workgroup or creative production environment. It helps you share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit (1000 Mbps/1 Gbps) speeds, improving efficiency and cutting costly downtime. Maximum Network Functionality The NG24-1 features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex) and back pressure (half duplex) allow smooth transmission of large files. Complies with IEEE Energy Efficient Ethernet Standards The NG24-1 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It consumes very little input power-just 10W. It also meets IEEE 802.3ab, 802.3i and 802.3u standards. Plug-and-Play Functionality for Easy Use No configuration is required in setting up the unmanaged NG24-1, so you can have your 10/100/1000 Mbps network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The NG24-1 supports MAC address auto-learning and auto-aging for efficient routing. Heavy-Duty Metal Enclosure with Versatile Installation Options This rugged switch features a detachable C13/C14 power cord that connects to a protected UPS or AC wall outlet. The housing contains no fan, resulting in silent operation. The NG24-1 is designed for desktop placement with the included rubber feet or 1U rack mounting using the included brackets.
Product Type	Ethernet Switch

Technical Information

Features	Fanless
Features	Energy Efficient

Interfaces/Ports

Total Number of Network Ports	24
Network (RJ-45)	Yes
Uplink Port	Yes
Modular	Yes
Port/Expansion Slot Details	24 x Gigabit Ethernet RJ-45 Network Portf

Media & Performance

Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Network Technology	1000Base-X
Maximum Data Transfer Rate	128 MB/s Bps

Network & Communication

Layer Supported	2
Networking Standards	IEEE 802.3
Networking Standards	IEEE 802.3u
Networking Standards	IEEE 802.3ab
Networking Standards	IEEE 802.3x
Networking Standards	IEEE 802.3i
Networking Standards	IEEE 802.3az

Management & Protocols

Manageable

Power Description

PoE (RJ-45) Port	No
Input Voltage	120 V AC
Input Voltage	230 V AC
Power Source	AC
Power Source	Power Supply
Power Consumption	16 W
Plug/Connector Type	C14

Physical Characteristics

Product Color	Black
Product Material	Metal
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Form Factor	Desktop
Height	1.7" mm
Width	11" mm
Depth	7" mm
Weight (Approximate)	3.20 lb g

Miscellaneous

Package Contents	NG24-1 24-Port Gigabit Ethernet Unmanaged Switch Detachable C13 to C14 power cord, 5 ft. (1.5 m) 2 x Rack-mounting Brackets 8 x Bracket Screws 4 x Rubber Feet Owner's Manual
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
