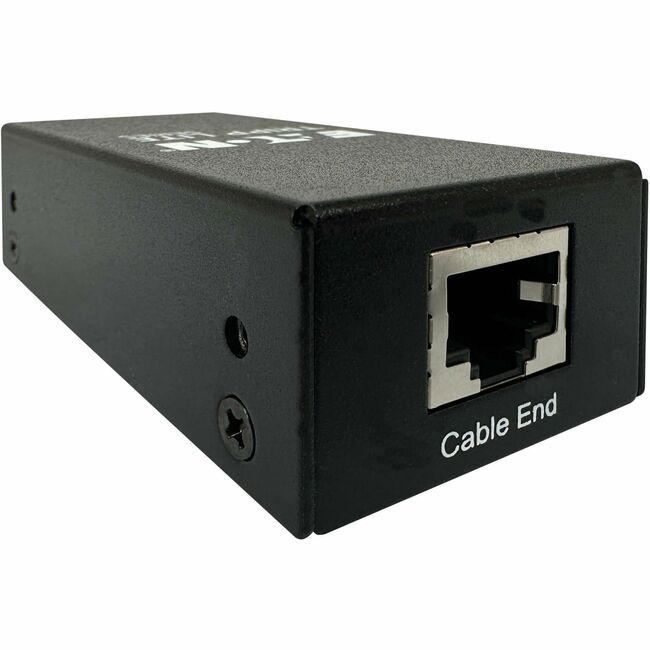

Eaton B110-SP-POEC-10 Tripp Lite series B110-SP-POEC-10 In-Line PoE Surge Protector

Name: Eaton B110-SP-POEC-10 Tripp Lite series B110-SP-POEC-10 In-Line PoE Surge Protector
Brand: Eaton
SKU: B110-SP-POEC-10
Price: 136.8 USD
Availability: InStock

Part Number:

B110-SP-POEC-10

106 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

106 pieces ready to ship - additional units ship in 7-10 business days.

$136.80

USD + Applicable Tax

Tripp Lite series B110-SP-POEC-10 In-Line PoE Surge Protector - Wireless Access Point, Camera - Black - RJ-45 - RJ-45 - 2 kA - Network, RJ-45, PoE, Ethernet, PoE++ - DIN Rail Mountable - TAA Compliant

Easy to connect between Ethernet source and device using standard Cat5e/6/6a cabling
Rapid reaction time under 1 ns helps prevent damage from power surges
Supports PoE to save you expense and effort of powering PoE devices individually
Plug-and-play operation with no software required for easy, immediate installation
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
2-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	B110-SP-POEC-10
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	B110-SP-POEC-10
Product Name	B110-SP-POEC-10 In-Line PoE Surge Protector
Marketing Information	Features \| DIN-Rail Mountable In-Line Surge Protector Keeps Your 10G Ethernet Equipment Safe The B110-SP-POEC-10 protects high-power PoE++ devices from damage caused by electrostatic discharge (ESD), power surges and cable discharge events. Ideal for industrial AV, smart building infrastructure and automation environments, it supports 10 Gbps throughput and IEEE 802.3bt Type 4 power delivery over Cat5e/6/6a cabling for AV-over-IP and high-bandwidth networks. Just install it between your Ethernet source and PoE device using Cat5e/6/6a cables and ground it with the included wire. Supports Power over Ethernet to Save You Money and Give You More Installation Choices This surge protector supports a variety of PoE standards, including IEEE 802.3af (15W), 802.3at (30W) and 802.3bt Type 4 (100W). It supplies power to compatible PoE devices, such as outdoor IP cameras, wireless access points (WAP) on ceilings or rooftops, and digital signage equipment. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. The surge protector is DIN-rail mountable for installation in tight enclosures or structured cabling environments. Your Last Defense Against Intruding Voltage Spikes Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Gas discharge modules on all four twisted pairs protect each wire from surges or spikes by dissipating the voltage transient through a contained plasma gas. The B110-SP-POEC-10 meets the following IEC regulations: IEC 61000-4-2 (8K/15kV), IEC 61000-4-5 2kA (8/20µs), 6kV (8/20µs) and IEC 61000-4-4 (2kV). Ready to Use Right from the Package, So You Can Plug and Play Immediately This in-line surge protector supports data transmission speeds up to 10 Gbps without signal degradation. No software, drivers or external power supply is required. The compact metal housing is designed to endure in applications where static discharge is likely to occur. TAA-Compliant for GSA Schedule Purchases The B110-SP-POEC-10 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Type	PoE Surge Protector

Technical Information

Plug/Connector Type	RJ-45
Receptacles	RJ-45
Dataline Protection	Network
Dataline Protection	RJ-45
Dataline Protection	PoE
Dataline Protection	Ethernet
Dataline Protection	PoE++
Supported Ethernet Speed	1.25 GB Byte

Power Description

Maximum Surge Current

2 kA

Environmental Conditions

Minimum Operating Temperature	32°F (0°C) °F
Maximum Operating Temperature	104°F (40°C) °F
Minimum Storage Temperature	5°F (-15°C) °F
Maximum Storage Temperature	122°F (50°C) °F

Physical Characteristics

Product Color	Black
Product Material	Metal
Product Material	Zinc
Form Factor	DIN Rail Mountable
Height	1" mm
Width	2.5" mm
Depth	3.6" mm
Length	3.61" mm
Weight (Approximate)	4.64 oz g

Miscellaneous

Package Contents	B110-SP-POEC-10 In-Line PoE Surge Protector Grounding Wire, 1 ft. Grounding Wire Screw DIN-rail Clip 2 x Surface-mounting Brackets 2 x Mounting Screws 2 x Screw Snchors Installation instructions
Application/Usage	Wireless Access Point
Application/Usage	Camera
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

2 Year
