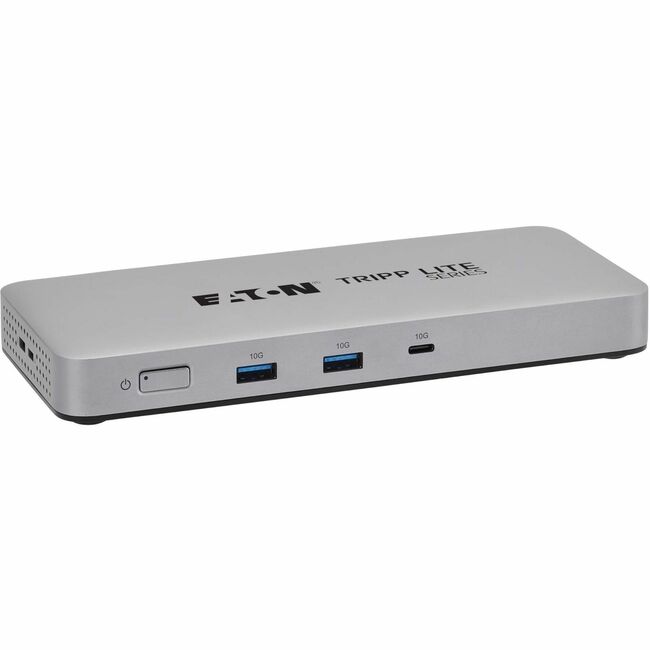

Eaton U442-DOCK25 Tripp Lite series U442-DOCK25 Docking Station

Name: Eaton U442-DOCK25 Tripp Lite series U442-DOCK25 Docking Station
Brand: Eaton
SKU: U442-DOCK25
Price: 423.2 USD
Availability: InStock

Part Number:

U442-DOCK25

488 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

488 pieces ready to ship - additional units ship in 7-10 business days.

$423.20

USD + Applicable Tax

Tripp Lite series U442-DOCK25 Docking Station - for Notebook, Tablet PC, Smartphone, Desktop PC, Headphone, Monitor, HDTV, Printer, Projector, Workstation, MacBook, ... - Charging Capability - 134.40 W Power Supply - USB Type C - 2 Displays Supported - 8K, 4K @ 144Hz, 8K @ 30Hz, 4K @30Hz, 4K @ 60Hz, HD, Full HD - 7680 x 4320, 3840 x 2160, 1280 x 720, 1920 x 1080 - 6 x USB Ports - 1 x USB 2.0 - 3 x USB Type-A Ports - USB Type-A - 3 x USB Type-C Ports - USB Type-C - Network (RJ-45) - DisplayP

Ideal for data-intensive multitasking, 8K video streaming/editing or large file transfers
DisplayPort and USB-C ports support 8K/30 Hz or 4K/144 Hz single-video output
USB 3.2 Gen 2 hub ports support 10 Gbps speeds for fast file transfers between devices
USB4 port supports 96W power delivery for keeping host device fully charged
RJ45 port connects to a wired 2.5 Gbps Ethernet network using compatible Cat6 cabling
3-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	U442-DOCK25
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	Universal
Product Model	U442-DOCK25
Product Name	U442-DOCK25 Docking Station
Marketing Information	Features \| USB4 Docking Station Turns Your Laptop into a Multi-Display Workstation This professional workspace dock dramatically expands the potential of your MacBook or Windows laptop by adding nine ports to its USB4 or Thunderbolt 4 port. Not only does the U442-DOCK25 allow you to transmit 4K/60 Hz video to two displays at the same time or 8K/30 Hz to a single display, but you can also add USB peripherals, connect to a 2.5G Ethernet network and keep your host laptop fully charged and powered during use. USB4 Host Port Supports 40 Gbps Data Transfer Speeds The U442-DOCK25 connects to your laptop via its USB-C host port, which allows the streaming of 4K or 8K video and transfer of large CAD files at speeds up to 40 Gbps. This makes the docking station an excellent tool for filmmakers, editors, gamers, web designers and multi-taskers who use two monitors simultaneously. Transmits 8K/4K Video to 2 Displays Simultaneously One USB-C and two DisplayPort (DP) outputs individually support 8K video resolutions at 30 Hz or 4K at 144 Hz with HDR (High Dynamic Range), 36-bit Deep Color and 4:4:4 chroma subsampling. You can also connect two DP displays or one DP and one USB-C display at the same time and transmit 8K at 30 Hz or 4K at 30 Hz to both. This allows you to mirror the image from the host computer across two external displays or extend the host's desktop across two displays. USB Hub Ports Connect Keyboards, External Storage and Other Peripherals Two USB-C and two USB-A hub ports accept USB peripherals, including keyboards/mice, hard drives and flash drives, and printers. All four ports support fast USB 3.2 Gen 2 data transfer rates up to 10 Gbps and are backward compatible with USB 3.2 Gen 1, USB 2.0 and USB 1.1 devices. PD Charging Port Charges Host Device via AC Wall Charger The USB4 Power Delivery (PD) port supports power output up to 96W, which is more than sufficient for charging and powering the connected source device, such as a MacBook Pro, Windows laptop or Chromebook. Just connect the device's wall charger to both the USB4 PD port and an AC outlet. Accesses a Wired Gigabit Ethernet Network The RJ45 port offers access to a 2.5 Gbps Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a compatible Cat6 Ethernet cable (sold separately) to access your local network. Anti-Theft Locks Protect the Dock When You Aren't Around Both a Kensington security slot (K-Slot) and a Nano security slot (Nano Slot) are featured. Connect a computer/laptop security cable lock (not included) to protect the U442-DOCK25 against theft and ensure peace of mind over your valuable data.
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Number of Displays Supported	2
Supported Resolutions	7680 x 4320
Supported Resolutions	3840 x 2160
Supported Resolutions	1280 x 720
Supported Resolutions	1920 x 1080
Screen Mode Supported	8K
Screen Mode Supported	4K @ 144Hz
Screen Mode Supported	8K @ 30Hz
Screen Mode Supported	4K @30Hz
Screen Mode Supported	4K @ 60Hz
Screen Mode Supported	HD
Screen Mode Supported	Full HD
Device Supported	Notebook
Device Supported	Tablet PC
Device Supported	Smartphone
Device Supported	Desktop PC
Device Supported	Headphone
Device Supported	Monitor
Device Supported	HDTV
Device Supported	Printer
Device Supported	Projector
Device Supported	Workstation
Device Supported	MacBook
Device Supported	Keyboard
Device Supported	Hard Drive
Device Supported	Mouse
Device Supported	Flash Drive

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

Interfaces/Ports

Host Interface	USB Type C
Total Number of USB Ports	6
Number of USB 2.0 Ports	1
Number of USB 3.2 Gen 2 Type-A Ports	2
Number of USB 3.2 Gen 2 Type-C Ports	2
Number of USB Type-C Ports	3
USB Type-C	Yes
USB Type-C Detail	2 x USB-C - USB 3.2 Gen 2 (10 Gbps), 1 x USB-C: 100W (20V 5A) Power Delivery (PD 3.0)
Number of USB Type-A Ports	3
USB Type-A	Yes
Network (RJ-45)	Yes
Number of DisplayPort Outputs	2
DisplayPort	Yes
DisplayPort Version	1.4
USB Power Delivery	96W

Software

Operating System Supported	Windows
Operating System Supported	macOS Big Sur

Power Description

Maximum Power Supply Wattage

134.40 W

Physical Characteristics

Product Color	Silver
Height	0.87" mm
Width	7.48" mm
Depth	3.15" mm
Weight (Approximate)	11.68 oz g

Miscellaneous

Package Contents	U442-DOCK25 Docking Station USB4 Type-C Host Cable, 3.3 ft. (1 m) External Power Supply (Input: 100-240V, 50/60 Hz, 2.5A Max; Output: 21V 6.4A 134.4W Max) with 3.3 ft. (1 m) Cord and NEMA 5-15P Plug Owner's Manual
Kensington Security Slot	Yes
Compatibility	Apple MacBook Pro
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

3 Year
