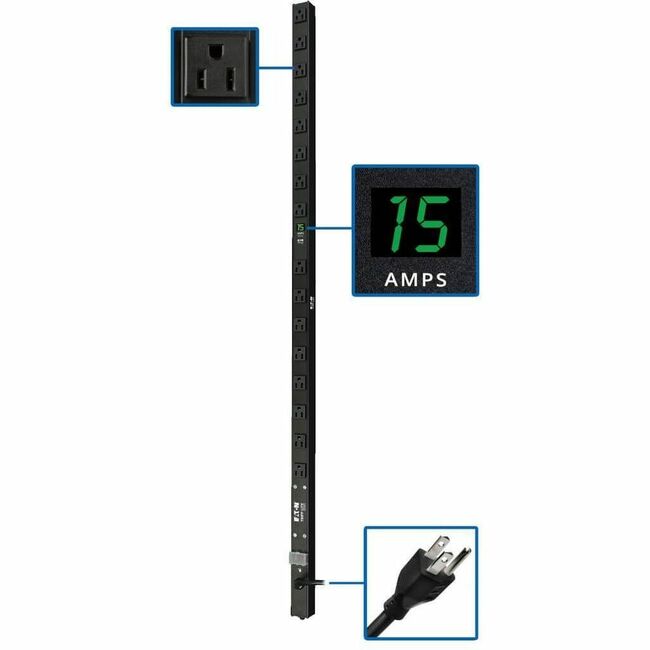

Eaton PDUMV15 Tripp Lite by Eaton PDU 1.4kW Single-Phase Local Metered PDU 120V Outlets (16 5-15R) 5-15P 15 ft. (4.57 m) Cord 0U Vertical 48 in.

Name: Eaton PDUMV15 Tripp Lite by Eaton PDU 1.4kW Single-Phase Local Metered PDU 120V Outlets (16 5-15R) 5-15P 15 ft. (4.57 m) Cord 0U Vertical 48 in.
Brand: Eaton
SKU: PDUMV15
Price: 259.91 USD
Availability: InStock

Part Number:

PDUMV15

585 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

585 pieces ready to ship - additional units ship in 7-10 business days.

$259.91

USD + Applicable Tax

Tripp Lite by Eaton PDU 1.4kW Single-Phase Local Metered PDU 120V Outlets (16 5-15R) 5-15P 15 ft. (4.57 m) Cord 0U Vertical 48 in. - 16 x NEMA 5-15R - 1.8kVA - Zero U Vertical Rackmount

Metered single phase 15A 120V 0U 48in / 122cm vertical rackmount PDU
Two-digit current meter reports output current in amps
Attached 15ft / 4.5m cord with NEMA 5-15P input plug
16 NEMA 5-15R outlets
Toolless button mount and bolt-down bracket installation hardware included

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMV15
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	PDUMV15
Product Name	PDUMV15 PDU Metered 120V 15A 16 Outlet
Marketing Information	Tripp Lite's PDUMV15 metered power distribution unit offers 15 amp, 120V multi-outlet AC power distribution in a convenient 48-inch mountable housing. Digital current meter displays the power consumption of connected equipment. Offers vertical power distribution in rackmount, raceway, and workbench applications. Includes 16 NEMA 5-15R output receptacles, 15 ft. AC line cord, and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory, or factory enviroments. Unfiltered electrical pass-through makes the PDUMV15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Included 16 NEMA5-15R outlets, 15-ft. AC power cord with 5-15P plug, 15 amp circuit breaker in rugged metal case design.PLUG/OUTLETS-Input: NEMA 5-15P/Output: 16 NEMA 5-15RELECTRICAL - 120V AC, 50/60Hz, 15AFORMAT - 48 inch mountable strip format More from the Manufacturer
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	16 x NEMA 5-15R
Protection Type	Overload Protection

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Power Rating (VA)	1800 VA W

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Height	3" mm
Width	48" mm
Depth	1.5" mm
Weight (Approximate)	3.80 lb g

Miscellaneous

Package Contents	PDUMV15 PDU Metered 120V 15A 16 Outlet PDUMV15 Metered Vertical PDU Mounting hardware 6 outlet safety covers Owner's manual with warranty information
Country of Origin	China
Environmentally Friendly	Yes

Warranty

Limited Warranty

2 Year
