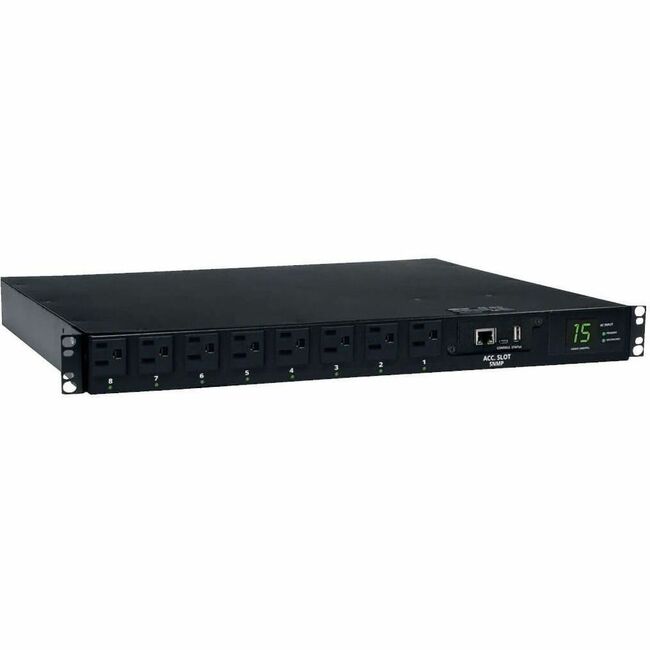

Eaton PDUMH15ATNET Tripp Lite by Eaton PDU 1.4kW Single-Phase Switched Automatic Transfer Switch PDU 2 120V 5-15P 15A Inputs 8 5-15R Outputs 1U TAA

Name: Eaton PDUMH15ATNET Tripp Lite by Eaton PDU 1.4kW Single-Phase Switched Automatic Transfer Switch PDU 2 120V 5-15P 15A Inputs 8 5-15R Outputs 1U TAA
Brand: Eaton
SKU: PDUMH15ATNET
Price: 1053.4 USD
Availability: InStock

Part Number:

PDUMH15ATNET

12 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

12 pieces ready to ship - additional units ship in 7-10 business days.

$1,053.40

USD + Applicable Tax

Tripp Lite by Eaton PDU 1.4kW Single-Phase Switched Automatic Transfer Switch PDU 2 120V 5-15P 15A Inputs 8 5-15R Outputs 1U TAA - 2 12ft Cords, 1U Rack-Mount, TAA"

Single phase 15A 120V Auto Transfer Switch / ATS PDU
Built-in Java-free LX Platform interface for 24/7 remote access
Enables redundant A/B power option for single-corded network devices
Separate primary & secondary inputs connect to any two compatible power sources
1U horizontal rackmount; 2 NEMA 5-15P inputs; 8 NEMA 5-15R outlets
Individually switched outlets; Two digit visual current meter
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMH15ATNET
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	PDUMH15ATNET
Product Name	PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet
Marketing Information	Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. The built-in Java-free HTML5-based LX Platform interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Switched PDU features include individually controllable output receptacles. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Switched
Plug/Connector Type	NEMA 5-15P
Plug/Connector Detail	2 x NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	8 x NEMA 5-15R

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Power Rating (VA)	1800 VA W

Management

Integrated Automatic Transfer Switch (ATS) allows PDU to operate from secondary input source when primary input fails
Sequential outlet power-on prevents inrush-related equipment interaction on startup
Programmable or real-time outlet power control via web/network monitoring and control card

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	1U
Height	1.8" mm
Width	1.8" mm
Depth	14.5" mm
Weight (Approximate)	11 lb g

Miscellaneous

Package Contents	PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet PDU with attached 5-15P input power cord Detachable C13 to NEMA 5-15P 12 ft/3.6m power cord for optional secondary input User manuals with warranty information
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes

Warranty

Limited Warranty

2 Year
