Eaton PDUMNH20 Tripp Lite by Eaton PDU 1.9kW Single-Phase Monitored PDU 120V Outlets (8 5-15/20R) L5-20P/5-20P Adapter 12 ft. (3.66 m) Cord 1U Rack-Mount LX Platform Interface TAA

Name: Eaton PDUMNH20 Tripp Lite by Eaton PDU 1.9kW Single-Phase Monitored PDU 120V Outlets (8 5-15/20R) L5-20P/5-20P Adapter 12 ft. (3.66 m) Cord 1U Rack-Mount LX Platform Interface TAA
Brand: Eaton
SKU: PDUMNH20
Price: 739.8 USD
Availability: InStock

Part Number:

PDUMNH20

20 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

20 pieces ready to ship - additional units ship in 7-10 business days.

$739.80

USD + Applicable Tax

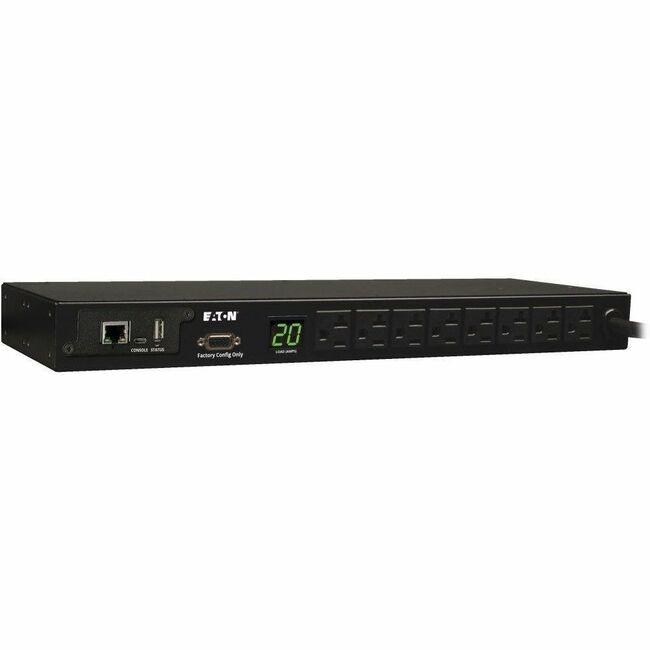

Tripp Lite by Eaton PDU 1.9kW Single-Phase Monitored PDU 120V Outlets (8 5-15/20R) L5-20P/5-20P Adapter 12 ft. (3.66 m) Cord 1U Rack-Mount LX Platform Interface TAA - 16 x NEMA 5-15/20R - 1U Horizontal Rackmount

Monitored 20A 120V PDU, 1U horizontal rackmount format
Reports voltage, frequency & load level via ethernet interface
Visual current meter, Reversible housing
NEMA L5-20P input with included 5-20P plug adapter
8 NEMA 5-15/20R outlets with included cord retention brackets
Temperature, humidity and contact-closure monitoring options
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMNH20
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Model	PDUMNH20
Product Name	PDUMNH20 PDU Monitored 120V 20A 8 Outlet
Marketing Information	Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Monitored
Plug/Connector Type	NEMA L5-20P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	8 x NEMA 5-15/20R

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC

Management

Protocols:

HTTP
HTTPS
PowerAlert Network Management System
SMTP
SNMPv1
SNMPv2
Telnet
FTP
DHCP
BOOTP
NTP

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Rack Height	1U
Height	1.7" mm
Width	17.3" mm
Depth	6.2" mm
Weight (Approximate)	7 lb g

Miscellaneous

Package Contents	PDUMNH20 PDU Monitored 120V 20A 8 Outlet Plug Retention Plates Rack Mounting Brackets Owner's Manual NEMA L5-20R to NEMA 5-20P Adapter
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
