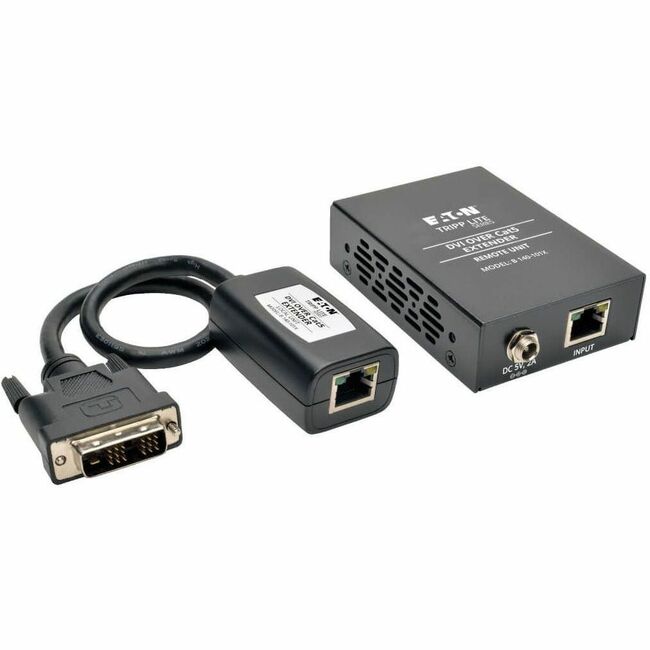

Eaton B140-101X Tripp Lite Series DVI over Cat5/6 Active Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 200 ft. (60 m), TAA

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton B140-101X Tripp Lite Series DVI over Cat5/6 Active Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 200 ft. (60 m), TAA

Part Number:

B140-101X

38 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

38 pieces ready to ship - additional units ship in 7-10 business days.

$333.00

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Eaton Tripp Lite Series DVI over Cat5/6 Active Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 200 ft. (60 m), TAA - 1 Input Device - 1 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - Wall Mountable - TAA Compliant

  • Extender kit comes with transmitter and receiver units
  • Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
  • Extends a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
  • Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
  • Can further expand the range and number of monitors by adding B140-110 repeaters
  • Compatible with all operating systems
  • Plug and play, no software or drivers required
  • Features a built-in Equalization control for adjustment of the video image

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number B140-101X
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Model B140-101X
Product Name DVI over Cat5 Active Extender Kit
Marketing Information

The B140-101X is a DVI Over Cat5 Active Extender Kit that comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-101X is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a the built-in DVI connector on the transmitter unit to a DVI source. Connect the receiver unit to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit in a chain) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..

More from the Manufacturer
Product Type Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology Wired
Number of Input Devices Supported 1
Number of Output Devices Supported 1
Maximum Operating Distance 200 ft mm

Video

Graphics Modes Full HD
Maximum Video Resolution 1920 x 1080

Interfaces/Ports

Network (RJ-45) Yes
DVI In Yes
DVI Out Yes
Number of Network (RJ-45) Ports 2
Number of DVI Inputs 1
Number of DVI Outputs 1

Media & Performance

Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 6

Physical Characteristics

Color Family Black
Product Color Black
Form Factor Wall Mountable

Miscellaneous

Package Contents
  • B140-101X Local Transmitter Unit
  • B140-101X Remote Receiver Unit
  • Screwdriver (used for Equalization control)
  • Mounting Hardware for Receiver Unit
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's Manual
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes

Warranty

Limited Warranty 1 Year
