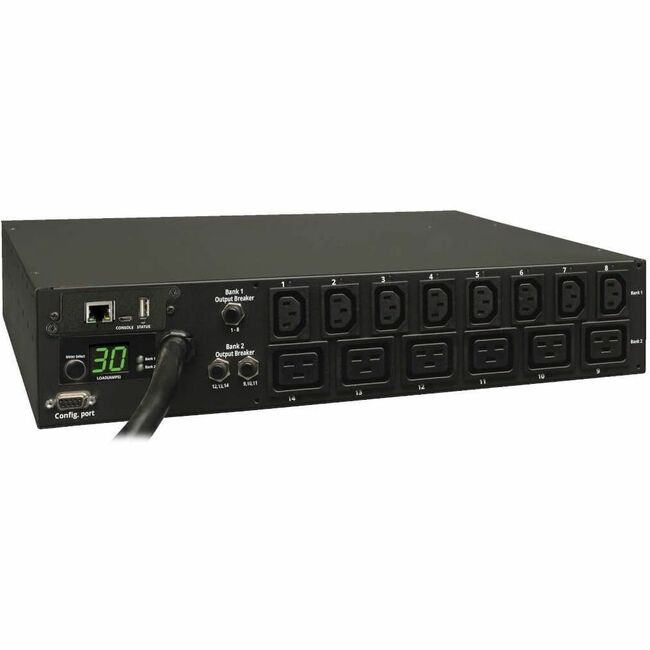

Eaton PDUMH30HV19NET Tripp Lite by Eaton PDU 5.5kW Single-Phase Switched PDU - LX Interface 208/230V Outlets (8 C13 & 6 C19) L6-30P Input 15 ft. (4.57 m) Cord 2U Rack-Mount TAA

Name: Eaton PDUMH30HV19NET Tripp Lite by Eaton PDU 5.5kW Single-Phase Switched PDU - LX Interface 208/230V Outlets (8 C13 & 6 C19) L6-30P Input 15 ft. (4.57 m) Cord 2U Rack-Mount TAA
Brand: Eaton
SKU: PDUMH30HV19NET
Price: 1408.52 USD
Availability: InStock

Part Number:

PDUMH30HV19NET

30 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

30 pieces ready to ship - additional units ship in 7-10 business days.

$1,408.52

USD + Applicable Tax

Tripp Lite by Eaton PDU 5.5kW Single-Phase Switched PDU - LX Interface 208/230V Outlets (8 C13 & 6 C19) L6-30P Input 15 ft. (4.57 m) Cord 2U Rack-Mount TAA - 14 - 2U Rack-mountable

5.8kW 208/240V Switched 30A PDU, 2U horizontal rackmount format
Built-in Java-free LX Platform interface for 24/7 remote access
Reports voltage, frequency & load level via ethernet interface
Visual current meter, Reversible housing
NEMA L6-30P input with attached 15 ft. / 4.5m line cord
14 switched outlets (8 C13, 6 C19) with cord retention brackets
Temperature, humidity and contact closure monitoring options
TAA Compliant

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMH30HV19NET
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Model	PDUMH30HV19NET
Product Name	PDUMH30HV19NET PDU Switched 208V - 240V 30A 14 Outlet
Marketing Information	Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
Product Type	PDU

Technical Information

PDU Type	Switched
Plug/Connector Type	NEMA L6-30P
Receptacle Detail	14

Power Description

Input Voltage	230 V AC
Input Voltage Range	208 V AC - 240 V AC
Output Voltage	208 V AC
Output Voltage	240 V AC

Management

Protocols:

HTTP
HTTPS
PowerAlert Network Management System
SMTP
SNMPv1
SNMPv2
Telnet
FTP
DHCP
BOOTP
NTP

Physical Characteristics

Mount Type	Rack-mountable
Rack Height	2U
Height	3.5" mm
Width	17.5" mm
Depth	12.5" mm
Weight (Approximate)	13.80 lb g

Miscellaneous

Package Contents	PDUMH30HV19NET PDU Switched 208V - 240V 30A 14 Outlet Installable 2U Mounting Brackets
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
