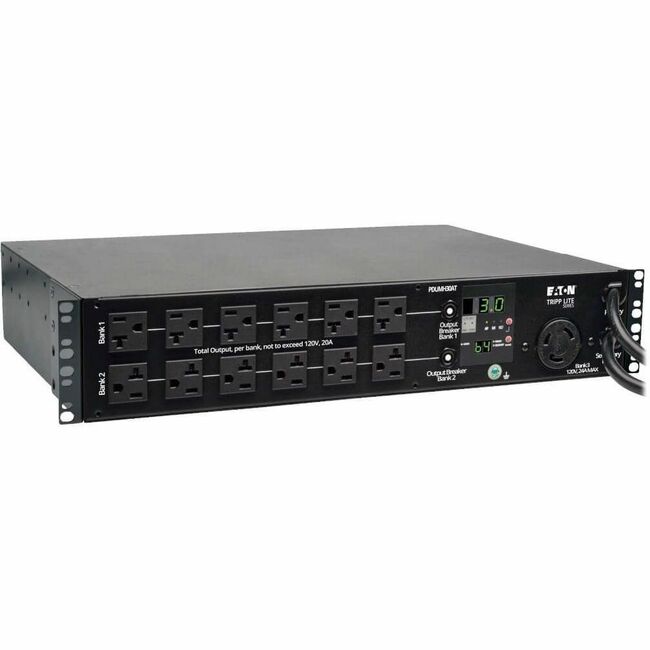

Eaton PDUMH30AT Tripp Lite by Eaton PDU 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU 2 120V L5-30P Inputs 24 5-15/20R & 1 L5-30R Outputs 2U TAA

Name: Eaton PDUMH30AT Tripp Lite by Eaton PDU 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU 2 120V L5-30P Inputs 24 5-15/20R & 1 L5-30R Outputs 2U TAA
Brand: Eaton
SKU: PDUMH30AT
Price: 1189.56 USD
Availability: InStock

Part Number:

PDUMH30AT

27 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

27 pieces ready to ship - additional units ship in 7-10 business days.

$1,189.56

USD + Applicable Tax

Tripp Lite by Eaton PDU 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU 2 120V L5-30P Inputs 24 5-15/20R & 1 L5-30R Outputs 2U TAA - 24 x NEMA 5-15/20R, 1 x NEMA L5-30R - 2UHorizontal Rackmount, Wall Mountable

Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching
Enables redundant A/B power option for single-corded network devices
Separate primary & secondary inputs connect to any two compatible power sources
2U horizontal rackmount; 2 L5-30P inputs; 24 5-15/20R & 1 L5-30R outlets
Digital meter reports voltage, kW load level and output amperage in 4 load segments
TAA Compliant

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMH30AT
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Series	Metered
Product Model	PDUMH30AT
Product Name	Metered PDUMH30AT 25-Outlets PDU
Marketing Information	PDUMH30AT Metered ATS / Auto-Transfer Switch offers 120V 30A dual-input power distribution and visual current metering in a 2U horizontal rackmount installation format. Set of two NEMA L5-30P line cords enable separate primary and secondary input connections. Includes 25 built-in outputs (24 NEMA 5-15/20R and 1 L5-30R). Digital current metering with push-button display control tracks output power consumption in 4 segments: Bank 1 (12 upper 5-15/20R outlets), Bank 2 (12 lower 5-15/20R outlets), L5-30R (single outlet) and total PDU output. Supports 2U installation in 2 or 4 post racks, with additional support for wall-mount and under-counter placement. More from the Manufacturer
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA L5-30P
Plug/Connector Detail	2 x NEMA L5-30P
Receptacle Type	NEMA 5-15/20R
Receptacle Type	NEMA L5-30R
Receptacle Detail	24 x NEMA 5-15/20R
Receptacle Detail	1 x NEMA L5-30R

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 127 V AC
Output Voltage	100 V AC
Output Voltage	120 V AC
Output Voltage	127 V AC

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Wall-mountable
Mount Type	Rack-mountable
Rack Height	2U
Height	3.5" mm
Width	17.5" mm
Depth	12.5" mm
Weight (Approximate)	13.80 lb g

Miscellaneous

Package Contents	Metered PDUMH30AT 25-Outlets PDU Installable Plug-retention Shelves Rackmount Installation Brackets Cable Ties
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
