Eaton PDUMH30HVATNET Tripp Lite by Eaton PDU 5.8kW Single-Phase Switched Automatic Transfer Switch PDU Two 200-240V L6-30P Inputs 16-C13 2-C19 & 1 L6-30R Outlet 2U TAA

Name: Eaton PDUMH30HVATNET Tripp Lite by Eaton PDU 5.8kW Single-Phase Switched Automatic Transfer Switch PDU Two 200-240V L6-30P Inputs 16-C13 2-C19 & 1 L6-30R Outlet 2U TAA
Brand: Eaton
SKU: PDUMH30HVATNET
Price: 1980.76 USD
Availability: InStock

Part Number:

PDUMH30HVATNET

39 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

39 pieces ready to ship - additional units ship in 7-10 business days.

$1,980.76

USD + Applicable Tax

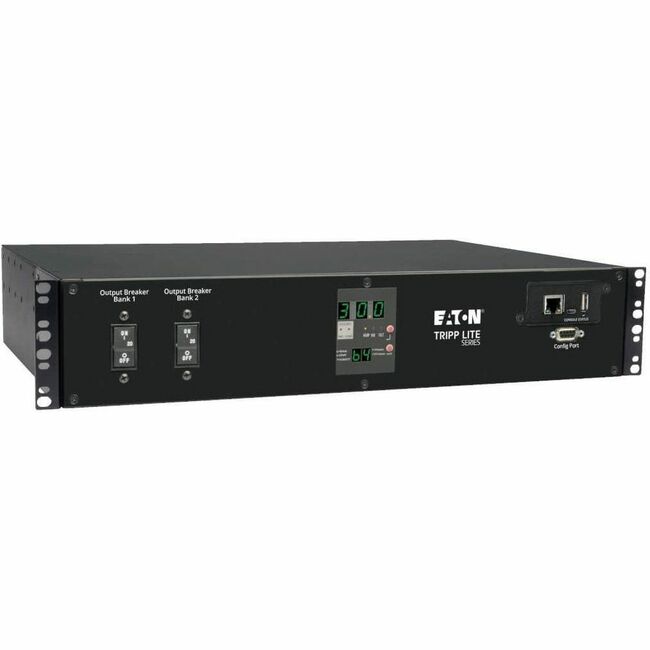

Tripp Lite by Eaton PDU 5.8kW Single-Phase Switched Automatic Transfer Switch PDU Two 200-240V L6-30P Inputs 16-C13 2-C19 & 1 L6-30R Outlet 2U TAA - 1 x NEMA L6-30R, 2 x IEC 60320 C19, 16 x IEC 60320 C13 - 208 V AC - 2U - Horizontal Rackmount"

Single phase 30A 208/240V Auto Transfer Switch / ATS PDU with Solid State Switching
Separate primary & secondary inputs enable redundant-power option for non-redundant network devices
LX Platform Network Interface
2U rackmount, 2 L6-30P inputs, 19 switched outlets (16 C13, 2 C19, 1 L6-30R)
Individually switched outlets, network interface and visual current, voltage and environmental monitoring
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMH30HVATNET
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Series	Switched
Product Model	PDUMH30HVATNET
Product Name	Switched PDUMH30HVATNET 19-Outlets PDU
Marketing Information	Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Switched
Plug/Connector Type	NEMA L6-30P
Plug/Connector Detail	2 x NEMA L6-30P
Receptacle Type	NEMA L6-30R
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Detail	1 x NEMA L6-30R
Receptacle Detail	2 x IEC 60320 C19
Receptacle Detail	16 x IEC 60320 C13

Power Description

Input Voltage

230 V AC

Management

Protocols:

HTTP
HTTPS
PowerAlert Network Management System
SMTP
SNMPv1
SNMPv2
Telnet
SSH
FTP
DHCP
BOOTP
NTP

Physical Characteristics

Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Rack Height	2U

Miscellaneous

Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
