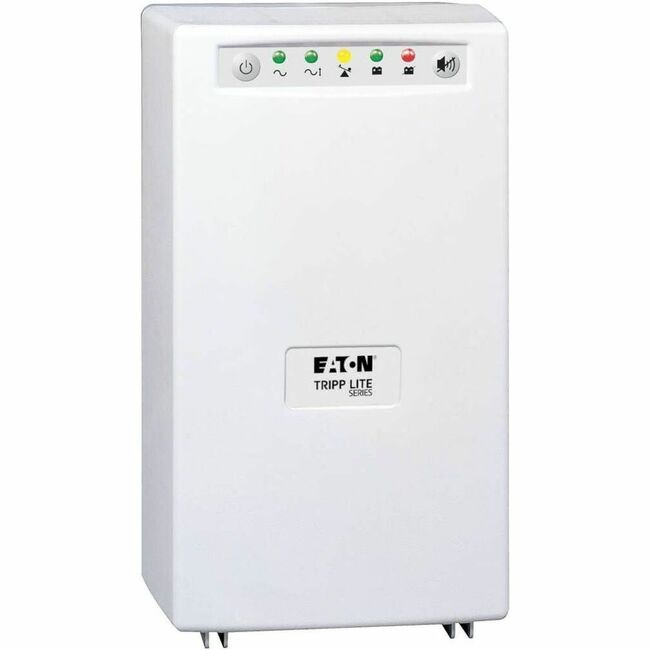

Eaton SMX1200XLHG Tripp Lite Medical-Grade Line-Interactive Tower UPS with 6 outlets and full isolation for reliable power backup

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton SMX1200XLHG Tripp Lite Series SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime

Part Number:

SMX1200XLHG

87 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

87 pieces ready to ship - additional units ship in 7-10 business days.

$1,665.24

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Eaton Tripp Lite Series SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime - 1000VA/750W - 11 Minute Full Load - 6 x IEC 60320 C13

  • Corrects under- and overvoltages from 155V to 274V
  • 6 IEC-320 C13 outlets
  • Front-panel LEDs indicate load, power, voltage and battery statuses
  • Expandable runtime with optional external battery packs
  • 27.5 min. runtime at half load; 11 min. at full load

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number SMX1200XLHG
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Line SmartPro
Product Model SMX1200XLHG
Product Name SmartPro SMX1200XLHG 1000 VA Tower UPS
Marketing Information Tripp Lite's SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load, or 11 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps. This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15 cm (6 in.) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules. The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.
Application Usage

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty

Provides Ideal UPS Backup in Healthcare Facilities

  • Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet
  • Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise


Battery Backup and Full Surge Protection

  • 27.5 minutes runtime for half load (375W); 11 minutes for full load (750W)
  • All six hospital-grade outlets provide surge protection rated to 340 joules
  • EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
  • Resistant to electrostatic discharge


LEDs and Audible Alarms Keep You Aware of Power Status

  • Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
  • Audible alarms alert you to power failure, overload and low battery conditions; the alarm's mute/quiet mode ensures patients are not disturbed


Saves Your Files, Even When You're Away

  • Works with Tripp Lite PowerAlert software (included) to enable safe, unattended system shutdown and files saves during prolonged power failures
  • Connects to your computer via either the DB9 port or USB port
Product Type Line-interactive UPS

Technical Information

Plug/Connector Type IEC 60320 C14
Receptacle Type IEC 60320 C13
Receptacle Detail 6 x IEC 60320 C13

Power Description

Load Capacity (VA) 1000 VA W
Load Capacity (Watt) 750 W
Input Voltage 220 V AC
Input Current 5 A
Output Voltage 230 V AC

Interfaces/Ports

Serial Port Yes
USB Yes

Battery Information

Backup/Run Time (Full Load) 11 Minute Second
Backup/Run Time (Half Load) 27.50 Minute Second
Hot Swappable Yes
Typical Battery Recharge Time 4.50 Hour Second

Physical Characteristics

Height 12.70" mm
Width 7.50" mm
Depth 9.10" mm
Form Factor Tower
Weight (Approximate) 45.50 lb g

Miscellaneous

Package Contents
  • SmartPro SMX1200XLHG 1000 VA Tower UPS
  • PowerAlert Software CD
  • 1 x DB-9 Serial Cable
  • 1 x USB Cable
  • Instruction Manual with Warranty Information
Software Included PowerAlert Software
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty 2 Year
