Eaton PDU3MV6L2120B Tripp Lite Series 5.7kW 3-Phase Local Metered PDU, 208/120V Outlets (21 5-15/20R, 6 L6-20R), L21-20P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA

Name: Eaton PDU3MV6L2120B Tripp Lite Series 5.7kW 3-Phase Local Metered PDU, 208/120V Outlets (21 5-15/20R, 6 L6-20R), L21-20P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA
Brand: Eaton
SKU: PDU3MV6L2120B
Price: 937.8 USD
Availability: InStock

Part Number:

PDU3MV6L2120B

58 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

58 pieces ready to ship - additional units ship in 7-10 business days.

$937.80

USD + Applicable Tax

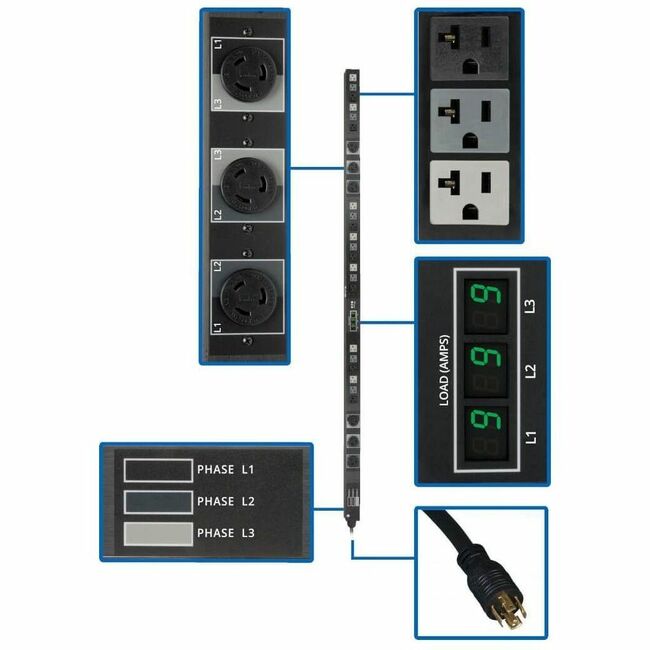

Eaton Tripp Lite Series 5.7kW 3-Phase Local Metered PDU, 208/120V Outlets (21 5-15/20R, 6 L6-20R), L21-20P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA - 6 x NEMA L6-20R, 21 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount

Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
Reports input current per-phase via built in current meters
NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)
Toolless button-mount installation; cord retention brackets included
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDU3MV6L2120B
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Series	Metered
Product Model	PDU3MV6L2120B
Product Name	3-Phase Metered PDU
Marketing Information	Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. More from the Manufacturer
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA L21-20P
Receptacle Type	NEMA L6-20R
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	6 x NEMA L6-20R
Receptacle Detail	21 x NEMA 5-15/20R

Power Description

Input Voltage	230 V AC
Output Voltage	120 V AC
Output Voltage	208 V AC
Power Rating (Watt)	5700 W

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Height	70" mm
Width	1.9" mm
Depth	2.2" mm
Weight (Approximate)	12.57 lb g

Miscellaneous

Package Contents	3-Phase Metered PDU Cord Retention Brackets Rack Mounting Brackets User Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
