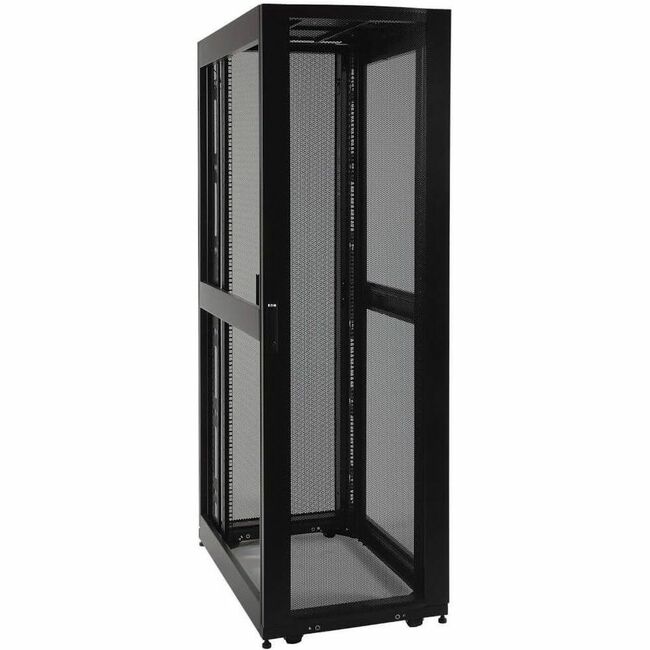

Eaton SR42UBMDEXP Tripp Lite Series 42U SmartRack Mid-Depth Expansion Rack - side panels not included

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton SR42UBMDEXP Tripp Lite Series 42U SmartRack Mid-Depth Expansion Rack - side panels not included

Part Number:

SR42UBMDEXP

5 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

5 pieces ready to ship - additional units ship in 7-10 business days.

$2,178.41

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Eaton Tripp Lite Series 42U SmartRack Mid-Depth Expansion Rack - side panels not included - 42U Rack Height x 19" Rack Width - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity

  • 42U SmartRack enclosure with doors and NO side panels. 'EXP' version is an expansion model for when several cabinets are bayed together
  • 36" (927mm) depth (with mounting depth increments from 4 to 31") and standard 24" (600mm) width
  • 4 interior vertical posts with unthreaded square hole openings
  • Ships fully assembled
  • Massive front to rear ventilation capacity
  • 3000 lb stationary / 2250 lb rolling load capacity
  • Locking, removable, reversible front and rear doors
  • Rolls through standard 7 foot doorways

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number SR42UBMDEXP
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Line SmartRack
Product Model SR42UBMDEXP
Product Name 42U Mid-Depth SmartRack Expansion Rack (No Side Panels Included)
Marketing Information

Part of our new line of mid-depth racks, the SR42UBMDEXP is an expansion model with a depth of 36" (927mm) and width of 24" (600 mm). An expansion cabinet is ideal when several cabinets are bayed together. It has doors and a roof but no side panels. Its integrated baying tabs make it easy to combine multiple enclosures in rows fro data center application. The SR45UBMDEXP is also compatible with hot aisle/cold aisle configurations.

The SR42UBMDEXP houses 3000lbs of standard 19-inch rack equipment in 42U. Offers vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-E compliant 19" equipment. Its front and rear pairs of vertical rails are adjustable in quarter-inch increments from 4 to 31 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of these adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

The top panel of the SR42UBMDEXP is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR42UBMDEXP is open-bottom.

All components of the SR42UBMDEXP are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

To simplify deployment, the SR42UBMDEXP comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

The SR42UBMDEXP comes with a 5-year product warranty. As part of the SmartRack family, the SR42UBMDEXP is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.
Product Type Rack Cabinet

Physical Characteristics

Color Family Black
Product Color Black
Dynamic/Rolling Weight Capacity 2250 lb g
Static/Stationary Weight Capacity 3000 lb g
Height 78.5" mm
Width 26.6" mm
Depth 36" mm
Rack Height 42U
Rack Width 19" mm
Weight (Approximate) 186 lb g

Miscellaneous

Package Contents
  • 42U Mid-Depth SmartRack Expansion Rack (No Side Panels Included)
  • 50 x M6 Cage Nuts
  • 50 x M6 Screws
  • Stabilizing Brackets
  • 2 x Door keys
  • 50 x M6 Washers
  • Owner's Manual
Assembly Required No
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty 5 Year
