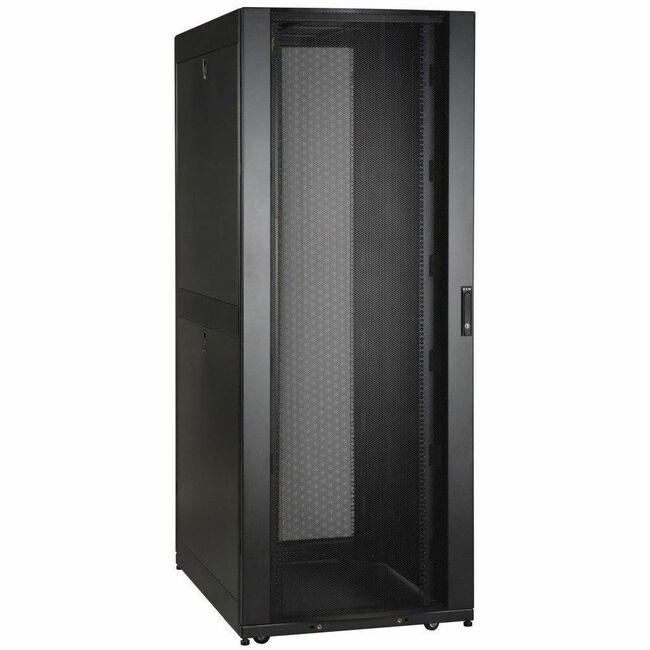

Eaton SR42UBWDSP1 Tripp Lite Series 42U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with doors, side panels & shock pallet packaging

Name: Eaton SR42UBWDSP1 Tripp Lite Series 42U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with doors, side panels & shock pallet packaging
Brand: Eaton
SKU: SR42UBWDSP1
Price: 3494.83 USD
Availability: InStock

Part Number:

SR42UBWDSP1

5 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

5 pieces ready to ship - additional units ship in 7-10 business days.

$3,494.83

USD + Applicable Tax

Eaton Tripp Lite Series 42U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with doors, side panels & shock pallet packaging - 42U Rack Height x 19" Rack Width - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity

Ships fully assembled on shock pallet with loading ramps
30" (750mm) wide and 42" (1050mm) deep SmartRack enclosure with doors and side panels
4 interior vertical posts with unthreaded square hole openings
Massive front to rear ventilation capacity
3000 lb stationary / 2250 lb rolling load capacity
Locking, removable, reversible front and rear doors
Locking, removable side panels keyed alike with doors
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SR42UBWDSP1
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SR42UBWDSP1
Product Name	SmartRack SR42UBWDSP1 Rack Cabinet
Marketing Information	Wide version of our standard 42U SmartRack Enclosure but ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. The pallet's protective cushion safeguards the enclosure and the precision components it contains during re-shipping. Reinforced pallets and reusable packaging provide the flexibility to fully configure rack enclosures in a centralized location and safely re-ship them to remote sites, saving significant service costs. They also allow the freedom to custom-configure enclosures with network and server hardware along with UPS systems, PDUs, KVM switches and a variety of other devices prior to final installation. At the desired location the SR42UBWDSP1 can be easily maneuvered with its preinstalled casters and can be secured by adjusting the preinstalled levelers. The SR42UBWDSP1 is 750mm wide (29.5") compared to the standard 600mm wide (23.6") This extra width allows for high density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling. The SR42UBWDSP1 houses 3000lbs of standard 19-inch rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 42 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. The top panel of the SR42UBWDSP1 is vented to help remove warm air from the enclosure and draw in cool air by convection. the top panel includes ports for cable routing, and can be quickly removed without tools. The facilitate cable access, the SR42UBSP1 is open-bottom. All components of the SR42UBWDSP1 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires. The SR42UBWDSP1 comes with a 5-year product warranty. As part of the SmartRack family it is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirements.
Product Type	Rack Cabinet

Physical Characteristics

Dynamic/Rolling Weight Capacity	2250 lb g
Static/Stationary Weight Capacity	3000 lb g
Height	78.5" mm
Width	29.6" mm
Depth	43" mm
Rack Height	42U
Rack Width	19" mm
Weight (Approximate)	222.67 lb g

Miscellaneous

Package Contents	SmartRack SR42UBWDSP1 Rack Cabinet 4 x Side Panels 4 x Side Panel Locks 2 x Door and Side Panel Keys 50 x M6 Screws 50 x M6 Washers 50 x M6 Cage Nuts Owner's Manual Mounting Hardware Stabilizing Bracket
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
