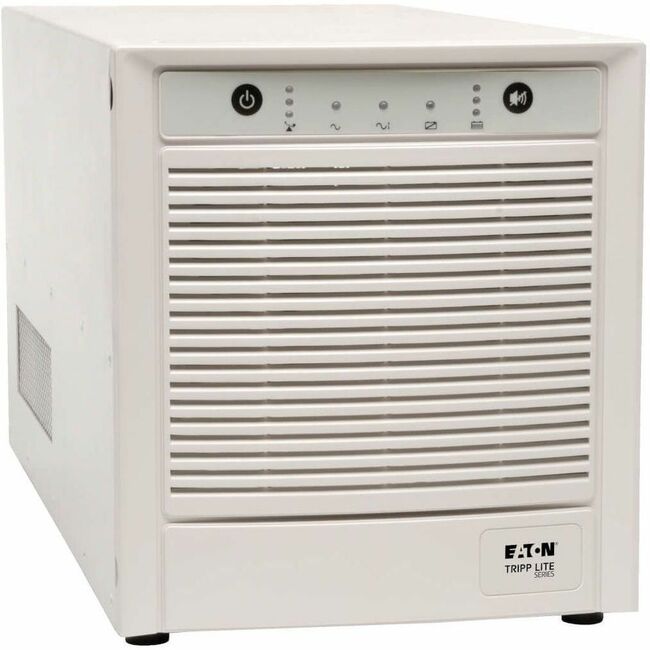

Eaton SMART2500XLHG Tripp Lite by Eaton UPS SmartPro 120V 2.2kVA 1.92kW UL 60601-1 Medical-Grade Line-Interactive UPS Extended Run SNMPWEBCARD Option Full Isolation USB DB9 Serial

Name: Eaton SMART2500XLHG Tripp Lite by Eaton UPS SmartPro 120V 2.2kVA 1.92kW UL 60601-1 Medical-Grade Line-Interactive UPS Extended Run SNMPWEBCARD Option Full Isolation USB DB9 Serial
Brand: Eaton
SKU: SMART2500XLHG
Price: 3789.84 USD
Availability: InStock

Part Number:

SMART2500XLHG

111 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

111 pieces ready to ship - additional units ship in 7-10 business days.

$3,789.84

USD + Applicable Tax

Tripp Lite by Eaton UPS SmartPro 120V 2.2kVA 1.92kW UL 60601-1 Medical-Grade Line-Interactive UPS Extended Run SNMPWEBCARD Option Full Isolation USB DB9 Serial - 2200 VA/1920 W - 120 V AC - 4.40 Minute - Tower - 4.40 Minute - 4 x IEC 60320 C13, 4 x NEMA 5-15/20R"

2200VA Line interactive, extended run tower UPS
Battery backup for patient care area
UL 60601-1 listing 3rd edition
Built in Isolation transformer, reducing cumulative shock cumulative shock potential to less than 100 microamps

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SMART2500XLHG
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartPro
Product Model	SMART2500XLHG
Product Name	SMART 2500XLHG Medical Grade Tower UPS System
Marketing Information	UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete, compliant power protection with Tripp Lite's SMART2500XLHG SmartPro® Medical UPS System. The SMART2500XLHG provides a high load capacity 2200VA/1920W, full UL 60601-1 3rd edition compliance. Protects connected medical equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. It features a USB port, input locking clamp, equipotential earth bonding lug, 4 NEMA 5-15/20R outlets, and 4 IEC C13 outlets for universally adaptable outlet options. The SMART2500XLHG offers a complete power protection solution for clinical labs, diagnostic imaging, ophthalmology, medical equipment, imaging and other devices requiring medical grade protection. With built-in Faraday shielding, the SMART2500XLHG provides full line isolation and reduces the cumulative leakage current of connected equipment to less than 100 µA for optimal safety in patient care areas. Full isolation also provides continuous noise filtering and enhanced common mode surge suppression. Featuring advanced line-interactive operation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts and optional external battery packs (BP48V24-2U and BP48V60RT-3U) provide extended runtime tailored to your application. The SMART2500XLHG features a USB communication port that works with included PowerAlert software to provide UPS and site power monitoring plus automatic file saves and safe unattended shutdown of connected equipment in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART2500XLHG in this type of application will void the battery warranty More from the Manufacturer
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	IEC 60320 C20
Receptacle Type	IEC 60320 C13
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	4 x IEC 60320 C13
Receptacle Detail	4 x NEMA 5-15/20R
Transfer Time	4 ms Second

Power Description

Load Capacity (VA)	2200 VA W
Load Capacity (Watt)	1920 W
Input Voltage	120 V AC
Output Voltage	120 V AC

Interfaces/Ports

Serial Port	Yes
USB	Yes

Battery Information

Backup/Run Time (Full Load)	4.40 Minute Second
Backup/Run Time (Half Load)	13 Minute Second
Hot Swappable	Yes
Typical Battery Recharge Time	4.50 Hour Second

Physical Characteristics

Height	9.27" mm
Width	8.90" mm
Depth	19.09" mm
Form Factor	Tower
Weight (Approximate)	73.30 lb g

Miscellaneous

Package Contents	SMART 2500XLHG Medical Grade Tower UPS System Poweralert Software CD Warranty Information Instruction Manual USB Cable DB9 Cable
Software Included	PowerAlert Software
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
