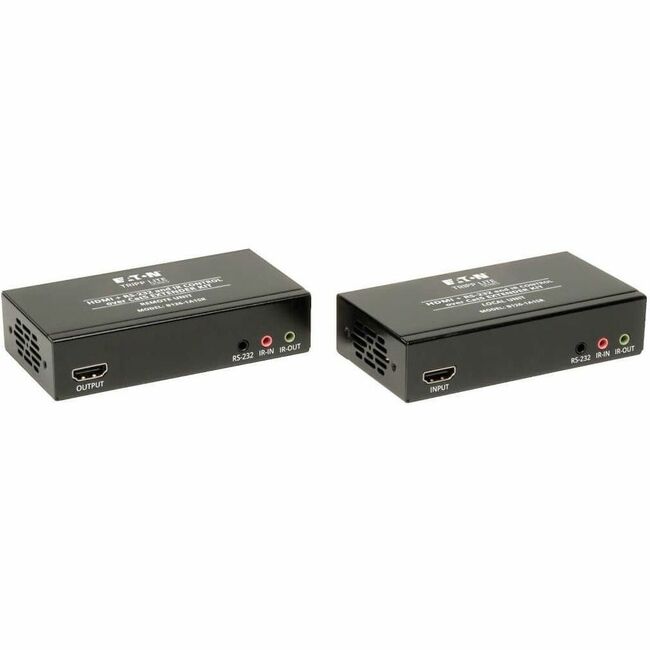

Eaton B126-1A1SR Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver, 4K, Serial and IR Control, Up to 328 ft. (100 m), TAA

Name: Eaton B126-1A1SR Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver, 4K, Serial and IR Control, Up to 328 ft. (100 m), TAA
Brand: Eaton
SKU: B126-1A1SR
Price: 664.47 USD
Availability: InStock

Part Number:

B126-1A1SR

172 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

172 pieces ready to ship - additional units ship in 7-10 business days.

$664.47

USD + Applicable Tax

Eaton Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver, 4K, Serial and IR Control, Up to 328 ft. (100 m), TAA - 3840 x 2160 4Kx2K UHD 1080p @ 24/30 Hz Up to 328 ft.

Extends a 3840 x 2160 (4K x 2K) signal up to 328 ft. (100 m)
Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
Controls RS-232 serial devices at baud rates up to 115 Kbps
Works with all operating systems and HDMI video sources
Plug and play-no software or drivers to install

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	B126-1A1SR
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	B126-1A1SR
Product Name	HDMI + IR + Serial RS232 over Cat5 / 6 Active Extender Kit
Marketing Information	Extender kit features a transmitter unit and a receiver unit to extend your HDMI audio and video when the source is located farther than conventional cables allow. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. You can extend a 3840 x 2160 (4K x 2K) Ultra High Definition (UHD) signal at 24/30Hz up to 328' with a single Cat6a cable, up to 230' with a 24 AWG solid-wire Cat6 cable, and up to 150' with a 26 AWG solid-wire Cat5e cable (N001- and N002-Series). For extending computer video resolutions of 1920 x 1200 at 60 Hz or high-definition video resolutions of 1080p at 60 Hz up to 328', use a single 24 AWG solid-wire Cat5e/6 cable. You can also control RS-232 serial devices, such as touch-screen displays or scanners, at baud rates up to 115 Kbps. Kit supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video and HDCP. More from the Manufacturer
Packaged Quantity	1 Each
Product Type	Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology	Wired
Maximum Operating Distance	328 ft mm

Video

Graphics Modes	4K
Maximum Video Resolution	3840 x 2160

Interfaces/Ports

Network (RJ-45)	Yes
HDMI In	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	2
Number of HDMI Inputs	1
Number of HDMI Outputs	1

Media & Performance

Twisted Pair Cable Standard

Category 6

Physical Characteristics

Color Family	Black
Product Color	Black
Transmitter Height	2" mm
Transmitter Width	6.20" mm
Transmitter Depth	11.30" mm
Receiver Height	2" mm
Receiver Width	6.20" mm
Receiver Depth	11.30" mm
Form Factor	Wall Mountable
Form Factor	Rack-mountable
Form Factor	Pole-mountable

Miscellaneous

Package Contents	Local Transmitter and Remote Receiver Units 2 x Sets of IR-IN Cables 2 x Sets of IR-OUT Cables 3.5 mm Male-to-DB9-Female Adapter Cable 3.5 mm Male-to-DB9-Male Adapter Cable 2 x Sets of External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A) 2 x Sets of Mounting Hardware Kits Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	1 Year
Additional Warranty Information	1 year limited warranty
