Tripp Lite by Eaton series UPS SmartOnline 2000VA 1800W 120V Double-Conversion UPS - 7 Outlets Extended Run Network Card Included LCD USB DB9 2U Rack/Tower - 2U Tower/Rack/Wall Mountable - 7.7 Minute Stand-by - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC Output - 6 x NEMA 5-15/20R, 1 x NEMA L5-20R
- Updated design for 2023
- Protects equipment against blackouts, brownouts, transient surges and line noise
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Included WEBCARDLXE network card enables full remote access and control 24/7
- Menu-driven LCD keeps you up to date with status info and other vital analytics
General Information
| Manufacturer |
Eaton Corporation |
| Manufacturer Part Number |
SU2200RTXLCDN |
| Manufacturer Website Address |
http://www.eaton.com |
| Brand Name |
Tripp Lite series |
| Product Line |
SmartOnline |
| Product Model |
SU2200RTXLCDN |
| Product Name |
SmartOnline SU2200RTXLCDN 2000VA Rack/Tower UPS |
| Marketing Information |
Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU2200RTXLCDN provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT, sold separately).
Pre-Installed LXE Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA Outlets Protect Your Connected Components
One L5-20R and six 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Clear LCD Interface Keeps You Informed at a Glance
The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation. More from the Manufacturer
|
| Product Type |
Double Conversion Online UPS |
Technical Information
| Plug/Connector Type |
NEMA 5-15P |
| Receptacle Type |
NEMA 5-20R |
| Receptacle Type |
NEMA L5-20R |
| Receptacle Detail |
6 x NEMA 5-20R |
| Receptacle Detail |
1 x NEMA L5-20R |
| Overload Protection |
Yes |
| Transfer Time |
0 ns Second |
| EMI/RFI Noise Filter |
Yes |
| Phase |
Single Phase |
| Energy Saving |
High efficiency economy mode operation; Individually controllable load banks |
| Application/Usage |
Education |
| Application/Usage |
Healthcare |
| Application/Usage |
Military |
| Application/Usage |
Government |
| Application/Usage |
IT Equipment |
| Application/Usage |
Mission Critical Equipment |
Power Description
| Load Capacity (VA) |
2000 VA W |
| Load Capacity (Watt) |
1800 W |
| Input Voltage |
120 V AC |
| Output Voltage |
100 V AC |
| Output Voltage |
110 V AC |
| Output Voltage |
115 V AC |
| Output Voltage |
120 V AC |
| Output Voltage |
127 V AC |
| Input Frequency |
60 Hz |
| Output Frequency |
60 Hz |
| Waveform Type |
Pure Sine Wave |
| Surge Energy Rating |
190 J |
| Input Power Factor |
0.99 |
| Output Power Factor |
0.9 |
Display & Graphics
Management
| Network Management |
SNMP |
| Alarm |
Remote Shutdown |
| Alarm |
UPS StartUp |
| Alarm |
Power Failure |
| Alarm |
Overload |
| Alarm |
UPS Fault |
| Alarm |
Low Battery |
Controls/Indicators
| Status Indicators |
4 x status-indicating LEDs |
Interfaces/Ports
Battery Information
| DC System Voltage |
72 V DC |
| Battery Characteristics |
Valve-regulated |
| Battery Chemistry |
Lead Acid |
| Backup/Run Time (Full Load) |
7.70 Minute Second |
| Backup/Run Time (Half Load) |
20.20 Minute Second |
| Hot Swappable |
Yes |
| Typical Battery Recharge Time |
3 Hour Second |
| Replaceable Battery |
Yes |
Environmental Conditions
| Maximum Operating Elevation |
9842.52 ft mm |
| Storage Temperature |
32°F (0°C) - 104°F (40°C) °F |
| Minimum Operating Temperature |
32°F (0°C) °F |
| Maximum Operating Temperature |
104°F (40°C) °F |
| Sound Emission |
47 dB |
Physical Characteristics
| Height |
3.41" mm |
| Width |
17.33" mm |
| Depth |
23.82" mm |
| Rack Height |
2U |
| Form Factor |
Rack/Tower |
| Weight (Approximate) |
61.51 lb g |
Miscellaneous
| Package Contents |

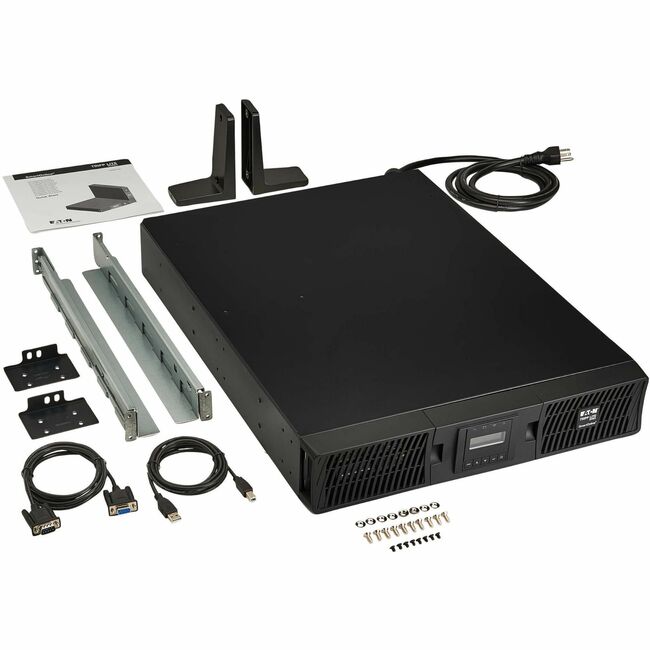

SmartOnline SU2200RTXLCDN 2000VA Rack/Tower UPS WEBCARDLXE Network Management Card USB Cable DB9 RS232 Cable Rack-mounting Hardware Tower Support Stands Safety Instructions Quick Start Guide
|
| Energy Star |
Yes |
| Country of Origin |
Philippines |
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
