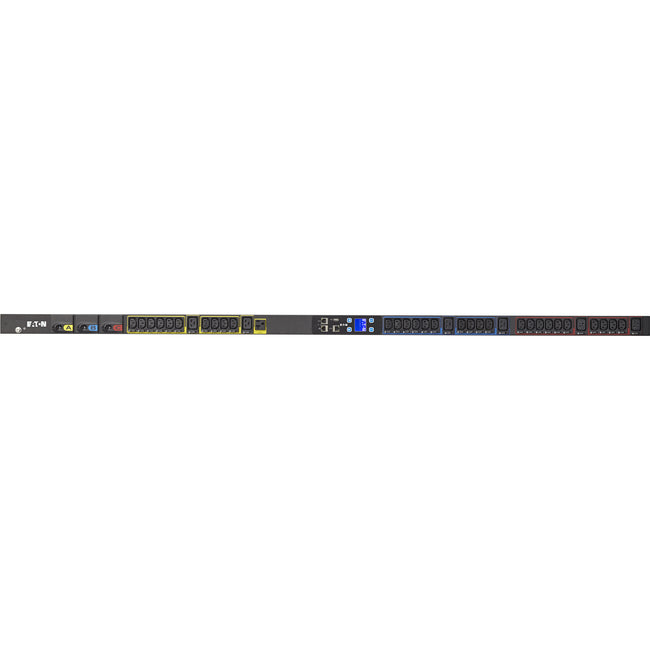

Eaton EMI310-10 Metered Input Rack PDU 8.64 kW max 120/208V 24A 0U Three-Phase PDU

Name: Eaton EMI310-10 Metered Input Rack PDU 8.64 kW max 120/208V 24A 0U Three-Phase PDU
Brand: Eaton
SKU: EMI310-10
Price: 1616.44 USD
Availability: InStock

Part Number:

EMI310-10

8 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

8 pieces ready to ship - additional units ship in 7-10 business days.

$1,616.44

USD + Applicable Tax

Eaton Metered Input Rack PDU 8.64 kW max 120/208V 24A 0U Three-Phase PDU - NEMA L21-30P - 30 x IEC 60320 C13, 6 x IEC 60320 C19, 1 x NEMA 5-20R - 120 V AC, 230 V AC - 8640 W - Network (RJ-45) - 38U - Rack-mountable

New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
High density units support up to 25 1U/2U servers or three blade server chassis
Easy read digital ammeter reduces local monitoring time
Clearly labeled circuits simplify load balancing
Reading available via Ethernet connection over a network
UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	EMI310-10
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Line	ePDU
Product Name	ePDU 37-Outlets PDU
Marketing Information	Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets. IEC outlet grip plug retention secures plugs in place using standard cables Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation High operating temperature (140F / 60C) for containment or hot network closet environments Hot-swap meter for servicability of without removing power to the rack +/- 1% billing grade accuracy for high accuracy reporting of energy usage Daisy chain of IP addresses allows four devices to share one network connection
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA L21-30P
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C19
Receptacle Type	NEMA 5-20R
Receptacle Detail	30 x IEC 60320 C13
Receptacle Detail	6 x IEC 60320 C19
Receptacle Detail	1 x NEMA 5-20R

Power Description

Input Voltage	120 V AC
Input Voltage	230 V AC
Input Voltage Range	120 V AC - 208 V AC
Power Rating (Watt)	8640 W
Input Current	24 A

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mount Type	Rack-mountable
Rack Height	38U
Cord Length	10 ft mm
Height	66.5" mm
Width	2.1" mm
Depth	2.1" mm
Weight (Approximate)	18.30 lb g

Miscellaneous

Country of Origin

Morocco

Warranty

Limited Warranty

3 Year
