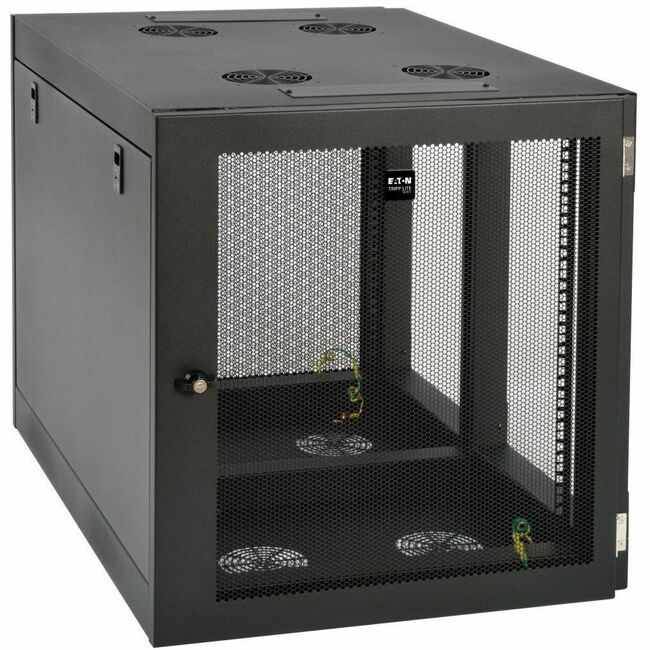

Eaton SRW12UHD Tripp Lite by Eaton SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Small Rack Enclosure

Name: Eaton SRW12UHD Tripp Lite by Eaton SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Small Rack Enclosure
Brand: Eaton
SKU: SRW12UHD
Price: 1064.54 USD
Availability: InStock

Part Number:

SRW12UHD

258 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

258 pieces ready to ship - additional units ship in 7-10 business days.

$1,064.54

USD + Applicable Tax

Tripp Lite by Eaton SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Small Rack Enclosure - For Server - 12U Rack Height x 19" Rack Width x 32.50" Rack Depth - Wall Mountable - Black - 500 lb Static/Stationary Weight Capacity

Maximum load capacity of 500 lb.
Locking steel cabinet vented at sides, top and bottom
Flow-through ventilation keeps equipment cool
Secures 12U of 19 in. rack equipment up to 32.5 in. deep

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRW12UHD
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRW12UHD
Product Name	SmartRack Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet
Marketing Information	The SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 500 pounds.Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels. The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.The SRW12UHD comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments. More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Application/Usage	Server
Features	Vented Top
Features	Removable Door
Features	Removable Side Panel
Features	Adjustable Mounting Rails

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Static/Stationary Weight Capacity	500 lb g
Height	26.5" mm
Width	24.8" mm
Depth	36.2" mm
Rack Height	12U
Rack Width	19" mm
Rack Depth	32.50" mm
Weight (Approximate)	101.40 lb g

Miscellaneous

Package Contents	SmartRack Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet 20 x M6 Cage Nuts 20 x M6 Equipment Mounting Screws 20 x M6 Washers 20 x 12-24 Equipment Mounting Screws 1 x Key Set Owner's Manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
