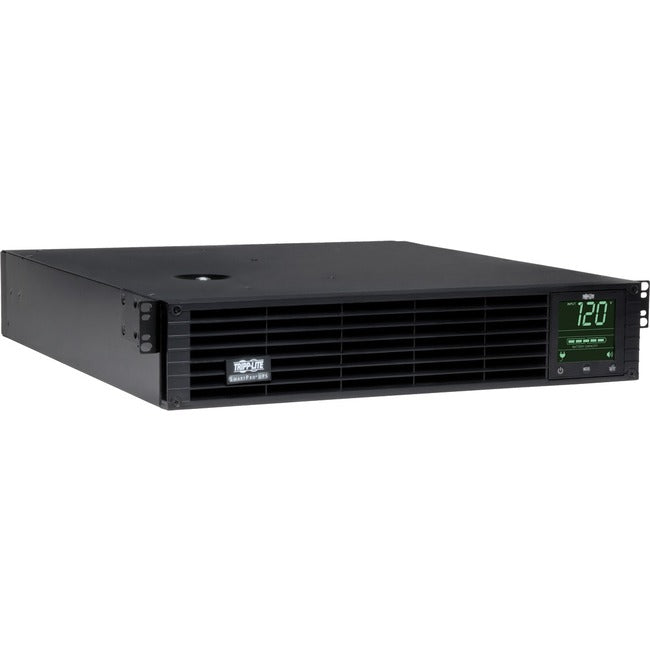

Eaton Tripp Lite Series TAA-Compliant SmartPro 120V 3kVA 2.25kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Extended Run, Pre-Installed WEBCARDLX Network Interface, LCD, USB, DB9 Serial - 2U Rack-mountable, Tower - 3.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 8 x NEMA 5-15/20R, 1 x NEMA L5-30R - TAA Compliant
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 3kVA / 3000VA / 2250W line interactive 2U rack/tower UPS
- 120V nominal output during brownouts to 83V and overvoltages to 145V
- Interactive LCD, USB, RS232, EPO and Pre-installed SNMPWEBCARD interface
- Hot-swap batteries, 98% efficiency, Sine wave output, 2 switchable load banks
- NEMA L5-30P input, 8 NEMA 5-15/20R & 1 L5-30R outlets
General Information
| Manufacturer |
Eaton Corporation |
| Manufacturer Part Number |
SM3000RM2UNTAA |
| Manufacturer Website Address |
http://www.eaton.com |
| Brand Name |
Tripp Lite series |
| Product Line |
SmartPro |
| Product Model |
SM3000RM2UNTAA |
| Product Name |
SmartPro SM3000RM2UNTAA 3000 VA Tower/Rack-mountable UPS |
| Marketing Information |
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring and auto-shutdown software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules. More from the Manufacturer
|
| Product Type |
Line-interactive UPS |
Technical Information
| Plug/Connector Type |
NEMA L5-30P |
| Receptacle Type |
NEMA 5-15/20R |
| Receptacle Type |
NEMA L5-30R |
| Receptacle Detail |
8 x NEMA 5-15/20R |
| Receptacle Detail |
1 x NEMA L5-30R |
| Cord Length |
10 ft mm |
Power Description
| Load Capacity (VA) |
3000 VA W |
| Load Capacity (Watt) |
2250 W |
| Input Voltage |
120 V AC |
| Input Current |
24 A |
| Output Voltage |
120 V AC |
| Waveform Type |
Pure Sine Wave |
| Surge Energy Rating |
570 J |
| Circuit Breaker |
Yes |
Management
| Network Management |
SNMP Manageable |
| Alarm |
UPS StartUp |
| Alarm |
Power Failure |
| Alarm |
Low Battery |
| Alarm |
Overload |
| Alarm |
UPS Fault |
| Alarm |
Remote Shutdown |
Interfaces/Ports
Battery Information
| Backup/Run Time (Full Load) |
3.50 Minute Second |
| Backup/Run Time (Half Load) |
10 Minute Second |
| Hot Swappable |
Yes |
Environmental Conditions
| Maximum Operating Temperature |
104°F (40°C) °F |
Physical Characteristics
| Height |
3.50" mm |
| Width |
17.50" mm |
| Depth |
19.50" mm |
| Rack Height |
2U |
| Form Factor |
Rack-mountable |
| Form Factor |
Tower |
| Weight (Approximate) |
62.80 lb g |
Miscellaneous
| Package Contents |
- SmartPro SM3000RM2UNTAA 3000 VA Tower/Rack-mountable UPS
- USB, Serial & EPO Cabling
- 4 x Post Rackmount Installation Kit
- Instruction Manual
|
| Software Included |
PowerAlert Software |
| Country of Origin |
Taiwan |
| TAA Compliant |
Yes |
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
Warranty
