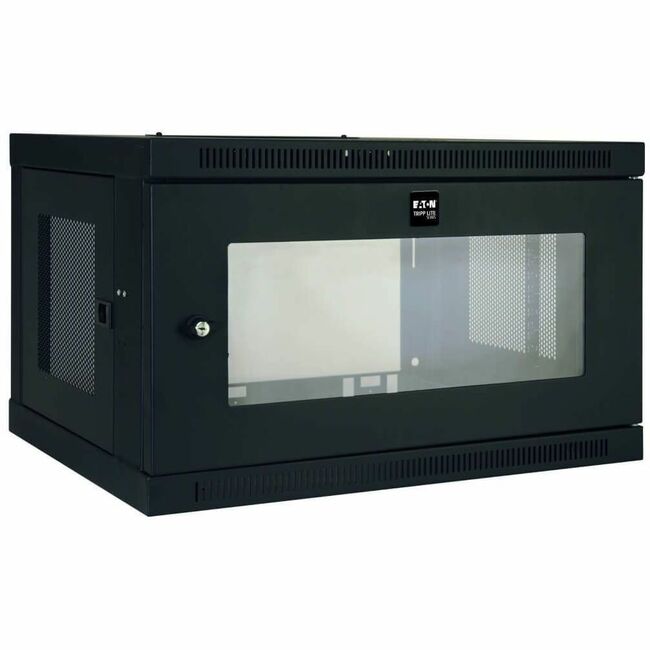

Eaton SRW6UG Tripp Lite by Eaton SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure with Clear Acrylic Window

Name: Eaton SRW6UG Tripp Lite by Eaton SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure with Clear Acrylic Window
Brand: Eaton
SKU: SRW6UG
Price: 388.41 USD
Availability: InStock

Part Number:

SRW6UG

50 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

50 pieces ready to ship - additional units ship in 7-10 business days.

$388.41

USD + Applicable Tax

Tripp Lite by Eaton SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure with Clear Acrylic Window - For VoIP Device - 6U Rack Height16.50" Rack Depth - Rack-mountable, Wall Mountable - Black - Plexiglass, Steel - 200 lb Maximum Weight Capacity

Maximum load capacity of 200 lb.
Front door includes shatter-resistant clear acrylic window
Locking steel cabinet vented at sides, top and bottom
Secures 6U of 19 in. rack equipment up to 16.5 in. deep
Mounts to wall or rolls on floor (with optional SRCASTER)

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRW6UG
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRW6UG
Product Name	SRW6UG Wallmount Rack Enclosure
Marketing Information	The SRW6UG SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.The front door and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW6UG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels. More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Application/Usage

VoIP Device

Physical Characteristics

Form Factor	Rack-mountable
Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Plexiglass
Product Material	Steel
Maximum Weight Capacity	200 lb g
Height	14.5" mm
Width	23.5" mm
Depth	17.5" mm
Rack Height	6U
Rack Depth	16.50" mm
Weight (Approximate)	29 lb g

Miscellaneous

Package Contents	SRW6UG Wallmount Rack Enclosure 12 x M6 screws 12 x M6 cage nuts 12 x M6 washers 12 x 12-24 screws 2 x Keys Owner's Manual
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
