Eaton PDUMV30HV2 Tripp Lite by Eaton PDU 5.8kW Single-Phase Local Metered PDU 200-240V Outlets (8 C19 and 40 C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical TAA 70 in.

Name: Eaton PDUMV30HV2 Tripp Lite by Eaton PDU 5.8kW Single-Phase Local Metered PDU 200-240V Outlets (8 C19 and 40 C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical TAA 70 in.
Brand: Eaton
SKU: PDUMV30HV2
Price: 747.0 USD
Availability: InStock

Part Number:

PDUMV30HV2

4 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

4 pieces ready to ship - additional units ship in 7-10 business days.

$747.00

USD + Applicable Tax

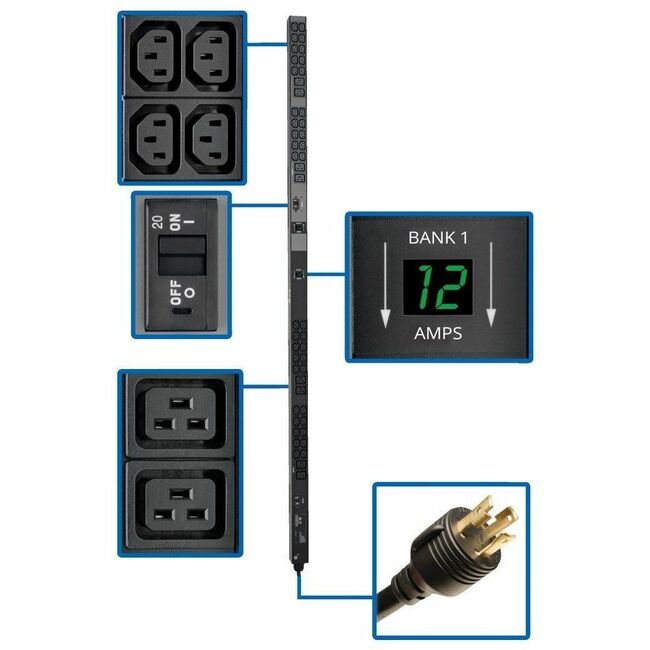

Tripp Lite by Eaton PDU 5.8kW Single-Phase Local Metered PDU 200-240V Outlets (8 C19 and 40 C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical TAA 70 in. - NEMA L6-30P - 8 x IEC 60320 C19, 40 x IEC 60320 C13

Ideal for server rooms, network closets and data centers
Dual load banks with 24 outlets each (4 C19 and 20 C13)
Dedicated 20A circuit breakers protect output
NEMA L6-30P input plug with 10-ft. (3 m) cord
Ready for immediate toolless 0U installation

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMV30HV2
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	Metered
Product Model	PDUMV30HV2
Product Name	Metered PDUMV30HV2 48-Outlet PDU
Marketing Information	The 70-inch (178-centimeter) PDUMV30HV2 30A 208/240V 5.8kW Single-Phase Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers. Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification. An ideal PDU for server rooms, network closets and data centers, the PDUMV30HV2's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The NEMA L6-30P input plug with 10-foot (3-meter) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground. More from the Manufacturer
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Detail	8 x IEC 60320 C19
Receptacle Detail	40 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	230 V AC
Output Voltage	230 V AC
Power Rating (Watt)	5800 W
Input Current	30 A

Physical Characteristics

Mounting Orientation	Vertical
Rack Height	0U
Height	70" mm
Width	2.2" mm
Depth	2.5" mm
Weight (Approximate)	12.35 lb g

Miscellaneous

Package Contents	PDUMV30HV2 48-Outlet PDU Plug-lock inserts (8 C20, 40 C13) Spare installation buttons, 2.9mm/4.6 mm Ground screw Mounting hardware Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
