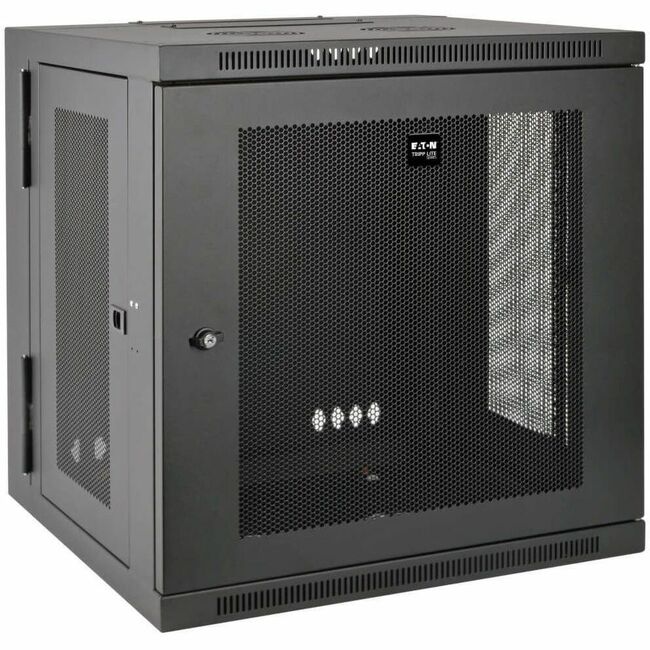

Eaton SRW12USDP Tripp Lite by Eaton 12U Wall Mount Rack Enclosure Server Cabinet Swinging Hinged Door Deep

Name: Eaton SRW12USDP Tripp Lite by Eaton 12U Wall Mount Rack Enclosure Server Cabinet Swinging Hinged Door Deep
Brand: Eaton
SKU: SRW12USDP
Price: 1007.84 USD
Availability: InStock

Part Number:

SRW12USDP

1134 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

1134 pieces ready to ship - additional units ship in 7-10 business days.

$1,007.84

USD + Applicable Tax

Tripp Lite by Eaton 12U Wall Mount Rack Enclosure Server Cabinet Swinging Hinged Door Deep - For UPS - 12U Rack Height x 19˘ Rack Width x 24.50˘ Rack Depth - Wall Mountable - Black - 200 lb Maximum Weight Capacity - 200 lb Static/Stationary Weight Capacity

Maximum load capacity of 200 lb.
Swings away from wall on hinge for easy back-door access
Locking steel cabinet vented at sides, front, top and bottom
Flow-through ventilation keeps equipment cool
Secures 12U of 19 in. rack equipment up to 24.5 in. deep

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRW12USDP
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRW12USDP
Product Name	SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back
Marketing Information	The SRW12USDP SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling. More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Application/Usage

UPS

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Maximum Weight Capacity	200 lb g
Static/Stationary Weight Capacity	200 lb g
Height	25.1" mm
Width	23.6" mm
Depth	25.5" mm
Rack Height	12U
Rack Width	19" mm
Rack Depth	24.50" mm
Weight (Approximate)	63.50 lb g

Miscellaneous

Package Contents	SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back 20 x M6 Screws 20 x M6 Cage Nuts 20 x M6 Washers 20 x12-24 Screws 2 x Keys Owner's Manual
Assembly Required	No
Country of Origin	Vietnam
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
