Eaton SRW12USDPG Tripp Lite by Eaton SmartRack 12U UPS-Depth Wall-Mount Small Rack Enclosure Clear Acrylic Window Hinged Back

Name: Eaton SRW12USDPG Tripp Lite by Eaton SmartRack 12U UPS-Depth Wall-Mount Small Rack Enclosure Clear Acrylic Window Hinged Back
Brand: Eaton
SKU: SRW12USDPG
Price: 992.83 USD
Availability: InStock

Part Number:

SRW12USDPG

72 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

72 pieces ready to ship - additional units ship in 7-10 business days.

$992.83

USD + Applicable Tax

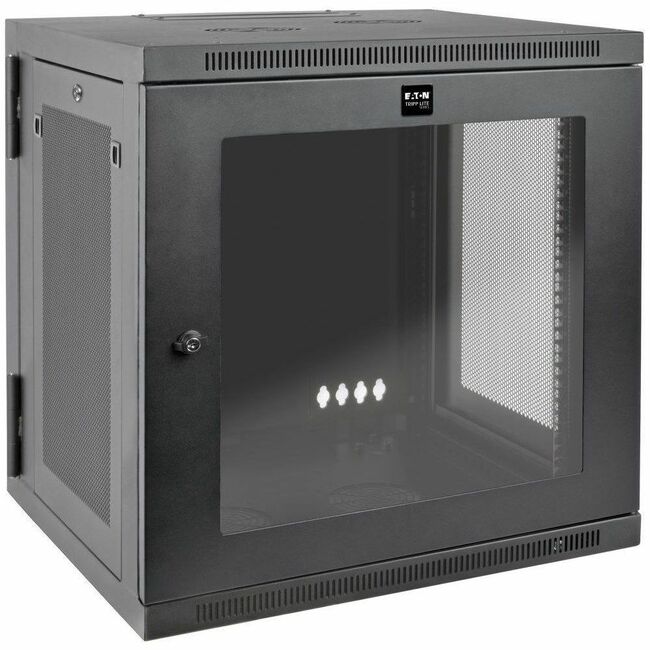

Tripp Lite by Eaton SmartRack 12U UPS-Depth Wall-Mount Small Rack Enclosure Clear Acrylic Window Hinged Back - For UPS - 12U Rack Height x 19" Rack Width x 24.50" Rack Depth - Wall Mountable - Black, Clear - Steel, Acrylic - 200 lb Maximum Weight Capacity - 200 lb Static/Stationary Weight Capacity

Maximum load capacity of 200 lb.
Swings away from wall on hinge for easy back-door access
Front door includes shatter-resistant clear acrylic window
Locking steel cabinet vented at sides, top and bottom
Secures 12U of 19 in. rack equipment up to 24.5 in. deep

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SRW12USDPG
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SRW12USDPG
Product Name	SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet
Marketing Information	The SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12USDPG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling. More from the Manufacturer
Product Type	Rack Cabinet

Technical Information

Application/Usage

UPS

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Dual Color
Product Color	Black
Product Color	Clear
Product Material	Steel
Product Material	Acrylic
Maximum Weight Capacity	200 lb g
Static/Stationary Weight Capacity	200 lb g
Height	25.1" mm
Width	23.6" mm
Depth	25.5" mm
Rack Height	12U
Rack Width	19" mm
Rack Depth	24.50" mm
Weight (Approximate)	64 lb g

Miscellaneous

Package Contents	SRW12USDPG SmartRack 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet 20 x M6 Screws 20 x M6 Cage Nuts 20 x M6 Washers 20 x 12-24 Screws 2 x Keys Owner's Manual
Assembly Required	No
Country of Origin	Vietnam
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
