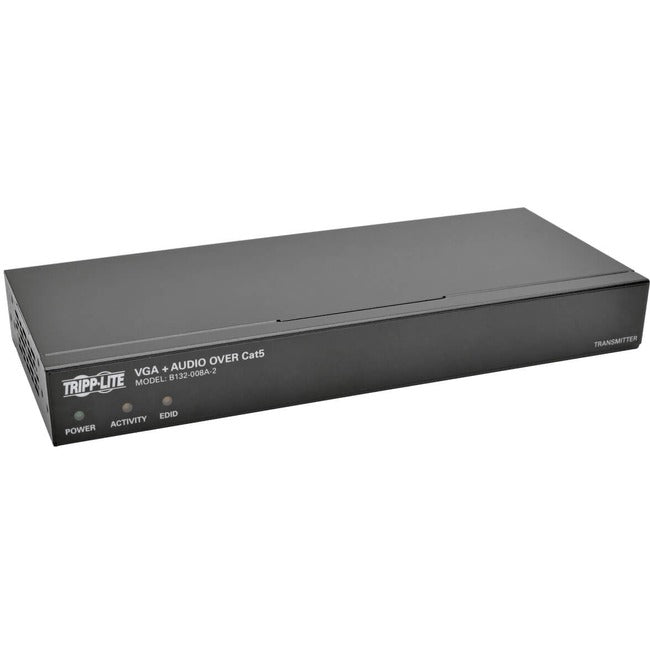

Eaton B132-008A-2 Tripp Lite Series 8-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA

Name: Eaton B132-008A-2 Tripp Lite Series 8-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA
Brand: Eaton
SKU: B132-008A-2
Price: 216.9 USD
Availability: InStock

Part Number:

B132-008A-2

5 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

5 pieces ready to ship - additional units ship in 7-10 business days.

$216.90

USD + Applicable Tax

Eaton Tripp Lite Series 8-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA - 1 Input Device - 1000 ft Range - 8 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Category 6 - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant

Requires Tripp Lite remote receivers (sold separately)
Extends 1024 x 768 @ 60 Hz audio/video signal up to 1,000 ft.
Extends 1920 x 1440 @ 60 Hz audio/video signal up to 500 ft.
Daisy-chain up to 6 units to extend signal to 49 displays
Plug and play-no software or drivers to install

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	B132-008A-2
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	B132-008A-2
Product Name	B132-008A-2 8-Port VGA + Audio over Cat5/6 Extender Splitter
Marketing Information	The B132-008A-2 8-Port VGA + Audio over Cat5/Cat6 Extender/Splitter works with a B132-100A or B132-100A-WP-1 remote receiver to split a VGA audio/video signal into nine separate signals-one local and eight remote. It's ideal for digital signs, trade shows and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. The B132-008A-2 uses VGA cable(such as Tripp Lite's P504-Series) to connect to the source and displays and Cat5e/6 cable to transmit to the remote receivers. For best results, use 24 AWG solid-wire N022-01K-GY(Cat5e) or N222-01K-GY(Cat6) cable. When used with Tripp Lite's B132-Series active remote receivers, the B132-008A-2 can extend a 1920 x 1440(60 Hz) signal up to 500 feet and a 1024 x 768(60 Hz) signal up to 1,000 feet. By daisy-chaining up to six units, one audio/video source can transmit to as many as 49 displays-48 remote and one local. Add up to three B132-110A remote repeaters to each channel to fully extend the signal range or add more displays. You can extend a 1920 x 1440(60 Hz) signal up to 500 feet or a 1024 x 768(60 Hz) signal up to 1,000 feet from the first repeater in the chain to the last receiver. The B132-008A-2 also delivers high-quality audio and copies EDID information from a connected display to ensure optimal compatibility. Easy to set up with no Software Or Drivers To Install. Mounts To A Wall, Rack Or Pole Using The Included Hardware. More from the Manufacturer
Product Type	Video Extender Receiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Maximum Operating Distance	1000 ft mm

Video

Maximum Video Resolution

1920 x 1440

Interfaces/Ports

Network (RJ-45)	Yes
VGA In	Yes
VGA Out	Yes
Number of Network (RJ-45) Ports	8
Number of VGA Inputs	1
Number of VGA Outputs	1

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Physical Characteristics

Color Family	Black
Product Color	Black
Receiver Height	1.20" mm
Receiver Width	9.30" mm
Receiver Depth	3.90" mm
Form Factor	Wall Mountable
Form Factor	Rack-mountable
Form Factor	Pole-mountable
Receiver Weight (Approximate)	1.50 lb g

Miscellaneous

Package Contents	B132-008A-2 8-Port VGA + Audio over Cat5/6 Extender Splitter External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A) VGA + Audio Daisy-Chain Cable, 1 ft. Mounting Hardware Owner'S Manual
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

1 Year
