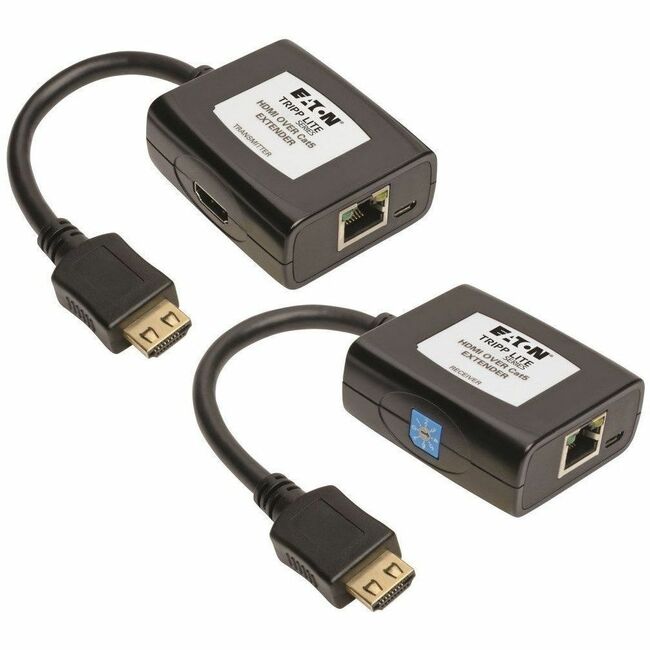

Eaton B126-1A1-U Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver for Video/Audio, USB Powered, Up to 125 ft. (38 m), TAA

Name: Eaton B126-1A1-U Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver for Video/Audio, USB Powered, Up to 125 ft. (38 m), TAA
Brand: Eaton
SKU: B126-1A1-U
Price: 286.97 USD
Availability: InStock

Part Number:

B126-1A1-U

62 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

62 pieces ready to ship - additional units ship in 7-10 business days.

$286.97

USD + Applicable Tax

Eaton Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver for Video/Audio, USB Powered, Up to 125 ft. (38 m), TAA - 1 Input Device - 1 Output Device - 125 ft Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant

Supports high-definition video resolutions up to 1080p (@ 60 Hz)
Supports stereo audio and HDCP
Works with all operating systems and HDMI sources
Plug and play-no software, drivers or external power supply
Built-in equalization control lets you adjust monitor image

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	B126-1A1-U
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	B126-1A1-U
Product Name	HDMI over Cat5/Cat6 Active Extender Kit, 1080p @ 60 Hz, USB Powered
Marketing Information	The B126-1A1-U HDMI over Cat5/Cat6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to an HDMI projector, monitor or television. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow. The transmitter's built-in HDMI cable connects to the audio/video source, and the receiver's built-in HDMI cable connects to the display. Cat5e/6 cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Each unit is powered by an included USB Micro-B to USB-A cable, which must be connected between the unit and a USB port on the source device, display or USB wall charger. You can also connect an optional HDMI monitor to the transmitter's local port with a user-supplied HDMI cable, such as Tripp Lite's P568-Series. The B126-1A1-U can extend a 1080p (@ 60 Hz) signal up to 125 feet with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at each remote display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources. Features Extends HDMI Audio/Video Signals to an HDMI Display Extends a 1080p (@ 60 Hz) signal up to 125 ft. Ideal for digital signs, trade shows, presentations, classrooms, churches and retail settings Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series) Supports stereo audio and HDCP Built-in equalization control lets you adjust the image on the remote display Easy to Set Up and Use Plug-and-play engineering-no software, drivers or external power supply Powered via included USB cables Units connect quickly to source and display with built-in HDMI cables Optional local HDMI monitor connects to transmitter with user-supplied HDMI cable LEDs indicate when units are receiving power and a signal from the source Works with all operating systems and HDMI sources TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases System Requirements Computer, Blu-ray™ player or other source with HDMI port Display with HDMI port More from the Manufacturer
Product Type	Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	125 ft mm

Video

Graphics Modes	Full HD
Maximum Video Resolution	1920 x 1080

Interfaces/Ports

Network (RJ-45)	Yes
HDMI In	Yes
HDMI Out	Yes
USB	Yes
Number of Network (RJ-45) Ports	2
Number of USB Ports	2
Number of HDMI Inputs	1
Number of HDMI Outputs	1

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Miscellaneous

Package Contents	Transmitter Unit Receiver Unit 2 x USB Micro-B to USB-A Cables, 3 ft. Screwdriver for Adjusting Equalization Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes

Warranty

Limited Warranty

1 Year
