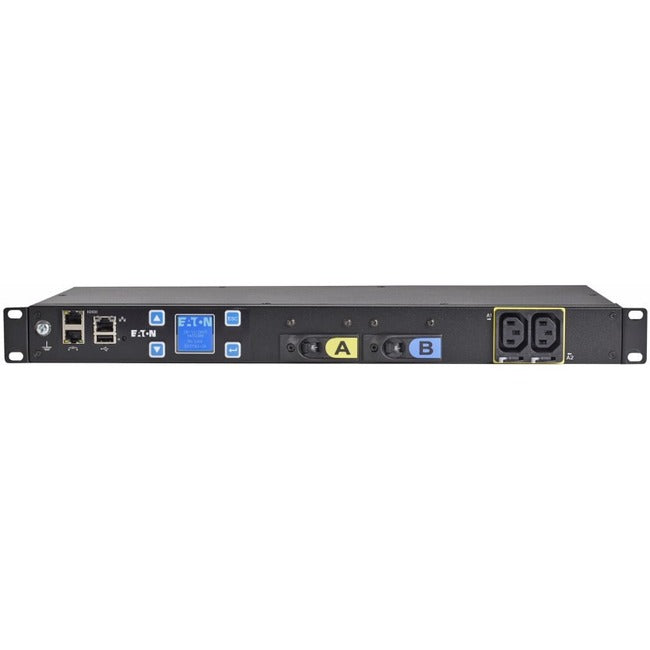

Eaton EMIT04-10 Metered Input Rack PDU 5.76 kW max 200-240V 24A 1U Single-Phase PDU

Name: Eaton EMIT04-10 Metered Input Rack PDU 5.76 kW max 200-240V 24A 1U Single-Phase PDU
Brand: Eaton
SKU: EMIT04-10
Price: 1361.6 USD
Availability: InStock

Part Number:

EMIT04-10

2 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

2 pieces ready to ship - additional units ship in 7-10 business days.

$1,361.60

USD + Applicable Tax

Eaton Metered Input Rack PDU 5.76 kW max 200-240V 24A 1U Single-Phase PDU - NEMA L6-30P - 8 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 5760 W - Network (RJ-45) - 1U - Horizontal

PDU is reliable for power protection and management solutions
IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
230 V AC input voltage for optimal performance with maximum usability
230 V AC output voltage for maximum dependability and added productivity

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	EMIT04-10
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Line	ePDU
Product Series	Metered
Product Model	EMIT04-10
Product Name	ePDU Metered EMIT04-10 12-Outlet PDU
Marketing Information	Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA L6-30P
Plug/Connector Detail	1 x NEMA L6-30P
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C19
Receptacle Detail	8 x IEC 60320 C13
Receptacle Detail	4 x IEC 60320 C19

Power Description

Input Voltage	230 V AC
Output Voltage	230 V AC
Power Rating (Watt)	5760 W
Input Current	24 A

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mounting Orientation	Horizontal
Rack Height	1U
Height	19" mm
Width	1.7" mm
Depth	8" mm

Miscellaneous

Package Contents	ePDU Metered EMIT04-10 12-Outlet PDU SPK021 - INSTALLATION SPK013 - NETWORK
Country of Origin	United States

Warranty

Limited Warranty

3 Year
