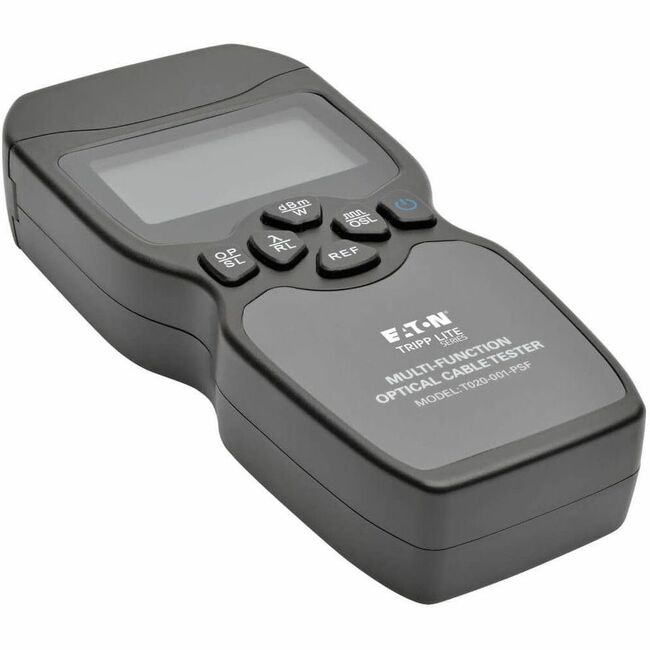

Eaton T020-001-PSF Tripp Lite by Eaton Multi-Function Optical Fiber Cable Tester with Power Meter Light Source and Visual Fault Locator

Name: Eaton T020-001-PSF Tripp Lite by Eaton Multi-Function Optical Fiber Cable Tester with Power Meter Light Source and Visual Fault Locator
Brand: Eaton
SKU: T020-001-PSF
Price: 1282.14 USD
Availability: InStock

Part Number:

T020-001-PSF

160 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

160 pieces ready to ship - additional units ship in 7-10 business days.

$1,282.14

USD + Applicable Tax

Tripp Lite by Eaton Multi-Function Optical Fiber Cable Tester with Power Meter Light Source and Visual Fault Locator - Frequency Measurement, Fiber Optic Cable Testing, Optical Power Testing, Cable Fault Testing, Power Monitoring, Cable Signal Testing, Power Level Testing, Power Monitoring, LAN Cable Testing, Network Testing, Insertion Loss Measurement, ... - USB - Optical Fiber, Coaxial, Twisted Pair - 3Number of Batteries Supported - AA - Battery Included - Battery Rechargeable

FC connectors with optional SC, ST and LC adapters available
Light source supports 1310 and 1550 nm wavelengths
Power meter supports 850, 1300, 1310, 1490, 1550 and 1625 nm
Auto-off function saves battery power
USB Micro-B port for charging rechargeable AA batteries

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	T020-001-PSF
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	T020-001-PSF
Product Name	T020-001-PSF Multi-Function Optical Fiber Cable Tester
Marketing Information	The all-in-one T020-001-PSF Multi-Function Optical Fiber Cable Tester is an essential tool for cable installers or anyone working in telecom or LAN environments. The combination power meter/light source/visual fault locator allows you to test fiber optic cables for breaks, insertion loss and optical power loss. It features FC connectors with optional SC, ST and LC adapters available. The power meter supports 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm and 1625 nm wavelengths, while the light source supports 1310 nm and 1550 nm wavelengths. The visual fault locator features multiple frequency settings for continuous and flashing modes. The easy-to-read LCD interface displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status. Three AA batteries are included, and the auto-off function preserves battery power. If you're using rechargeable AA batteries, the USB Micro-B port charges them via connection to a USB wall charger or a computer's USB port. When not in use, the T020-001-PSF can be stored in its handy carrying case. More from the Manufacturer
Product Type	Testing Device

Technical Information

Device Function	Frequency Measurement
Device Function	Fiber Optic Cable Testing
Device Function	Optical Power Testing
Device Function	Cable Fault Testing
Device Function	Power Monitoring
Device Function	Cable Signal Testing
Device Function	Power Level Testing
Device Function	LAN Cable Testing
Device Function	Network Testing
Device Function	Insertion Loss Measurement
Device Function	Optical Power Loss
Device Function	Visual Fault Locator

Interfaces/Ports

HDMI	No
DVI	No
VGA	No
USB	Yes
Serial Port	No
Serial V.35 Interface	No
Audio Line Out	No
PoE (RJ-45) Port	No
Network (RJ-45)	No

Media & Performance

Media Type Supported	Optical Fiber
Media Type Supported	Coaxial
Media Type Supported	Twisted Pair

Battery Information

Number of Batteries Supported	3
Battery Size Supported	AA
Battery Included	Yes
Battery Rechargeable	Yes

Miscellaneous

Package Contents	T020-001-PSF Multi-Function Optical Fiber Cable Tester 3 x AA Batteries Cleaning Swabs Carrying Case Owner's Manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
