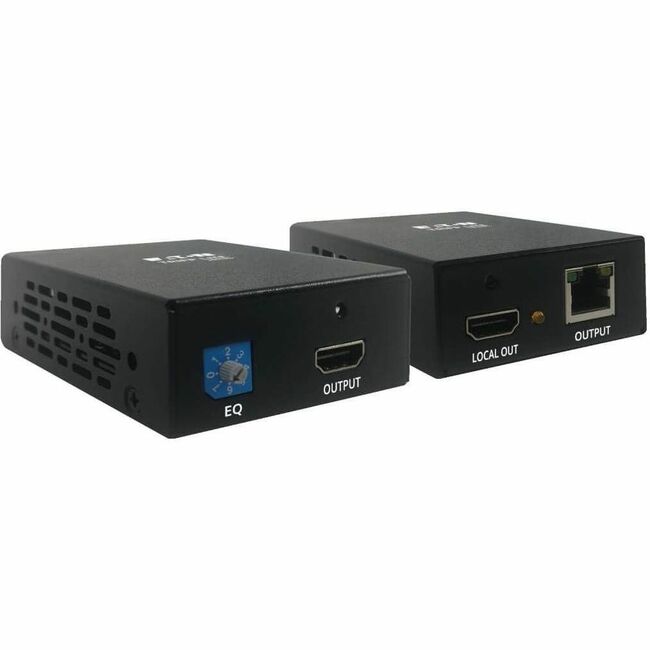

Eaton B126-1A1-POC Tripp Lite Series HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, PoC, Up to 125 ft. (38 m), TAA

Name: Eaton B126-1A1-POC Tripp Lite Series HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, PoC, Up to 125 ft. (38 m), TAA
Brand: Eaton
SKU: B126-1A1-POC
Price: 356.31 USD
Availability: InStock

Part Number:

B126-1A1-POC

49 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

49 pieces ready to ship - additional units ship in 7-10 business days.

$356.31

USD + Applicable Tax

Eaton Tripp Lite Series HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, PoC, Up to 125 ft. (38 m), TAA - 1 Input Device - 1 Output Device - 125 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 2 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant

Built-in Power over Cable (PoC) technology powers the receiver
Supports high-definition video resolutions up to 1080p (@ 60 Hz)
Supports stereo and 7.1-channel surround sound audio
Built-in equalization control lets you adjust monitor image
Plug and play-no software or drivers to install

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	B126-1A1-POC
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	B126-1A1-POC
Product Name	B126-1A1-POC Video Extender Transmitter/Receiver
Marketing Information	The B126-1A1-POC HDMI over Cat5 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow. HDMI cable (see Tripp Lite's P569-Series) connects an optional local display and the audio/video source, such as a Blu-ray™ player, to the transmitter's HDMI ports and a remote display to the receiver. Cat5e/6/6a cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Built-in Power over Cable (POC) technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed. The B126-1A1-POC can extend a high-definition 1080p (@ 60 Hz) signal up to 125 feet. In addition to crystal-clear video, the B126-1A1-POC delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM). Built-in equalization control lets you fine-tune the image quality at the remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Features Extends High-Definition Signals Extends a 1080p (@ 60 Hz) signal up to 125 ft. Transmitter and receiver connect with one Cat5e/6/6a cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series) Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio Supports 24-bit True Color (8 bits per channel) and HDCP Built-in equalization control lets you adjust the image on the local monitor Easy to Set Up and Use Plug-and-play engineering-no software or drivers to download and install Works with all operating systems and HDMI video sources Units connect quickly to monitors with HDMI cable, such as Tripp Lite's P569-Series LEDs indicate at a glance when the units are receiving power and an HDMI signal Included mounting hardware lets you install the units on a wall, rack or pole TAA Compliant Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases More from the Manufacturer
Product Type	Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	125 ft mm

Video

Graphics Modes	Full HD
Maximum Video Resolution	1920 x 1080

Interfaces/Ports

Network (RJ-45)	Yes
HDMI In	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	2
Number of HDMI Inputs	1
Number of HDMI Outputs	2

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6a

Physical Characteristics

Form Factor	Rack-mountable
Form Factor	Wall Mountable
Form Factor	Pole-mountable

Miscellaneous

Package Contents	Transmitter Unit Receiver Unit Screwdriver for Adjusting Equalization External Power Supply with NEMA 1-15P Plug and 5 ft. Cord (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A) Mounting Hardware Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

1 Year
