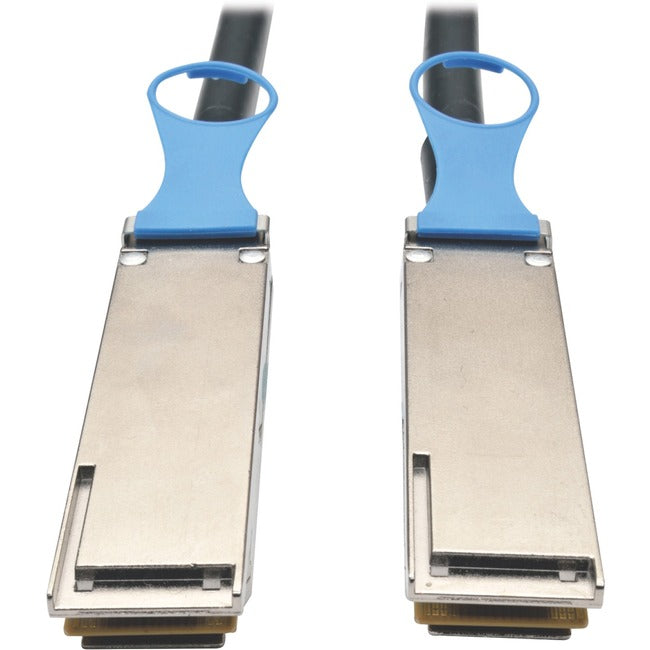

Eaton N282-20N-28-BK Tripp Lite by Eaton QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M) 0.5 m (20 in.)

Name: Eaton N282-20N-28-BK Tripp Lite by Eaton QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M) 0.5 m (20 in.)
Brand: Eaton
SKU: N282-20N-28-BK
Price: 473.86 USD
Availability: InStock

Part Number:

N282-20N-28-BK

94 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

94 pieces ready to ship - additional units ship in 7-10 business days.

$473.86

USD + Applicable Tax

Tripp Lite by Eaton QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M) 0.5 m (20 in.) - 1.70 ft InfiniBand Network Cable for Network Device - First End: 1 x QSFP+ Network - Male - Second End: 1 x QSFP+ Network - Male - 100 Gbit/s - 26 AWG - Black

Supports serial data rates up to 100 Gbps
Complies with MSA SFF-8665 specifications
Meets or exceeds 100GBASE-CR4 standards
Multi-platform support for 128G Fibre Channel and EDR InfiniBand
Pull-tab ejectors for quick, easy connections

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	N282-20N-28-BK
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	N282-20N-28-BK
Product Name	QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 0.5 m (20 in)
Marketing Information	The N282-20N-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets. This half-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position "board-as-connector" design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand. Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-20N-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj. More from the Manufacturer
Product Type	Network Cable

Technical Information

Cable Type	InfiniBand
Cable Length	1.70 ft mm
Connector Type on First End	QSFP+ Network - Male
Connector on First End Details	1 x QSFP+ Network - Male
Connector Type on Second End	QSFP+ Network - Male
Connector on Second End Details	1 x QSFP+ Network - Male
Device Supported	Network Device
American Wire Gauge	26 AWG
Data Transfer Rate	100 Gbit/s Bps
Features	Flexible
Features	Crosstalk Protection
Features	Passive

Physical Characteristics

Color Family	Black
Product Color	Black

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	China
