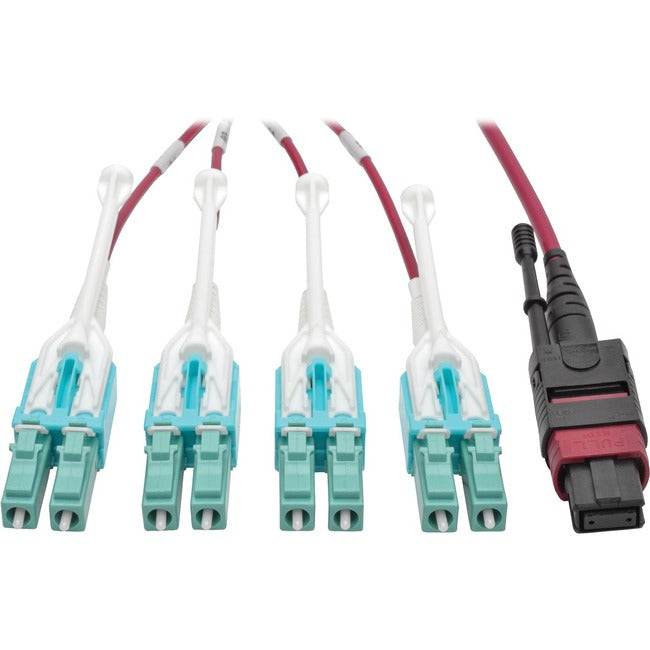

Eaton N845-03M-8L-MG Tripp Lite Series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable, 40GBASE-SR4, Push/Pull Tabs, Magenta, 3 m

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton N845-03M-8L-MG Tripp Lite Series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable, 40GBASE-SR4, Push/Pull Tabs, Magenta, 3 m

Part Number:

N845-03M-8L-MG

19 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

19 pieces ready to ship - additional units ship in 7-10 business days.

$334.09

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Eaton Tripp Lite Series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable, 40GBASE-SR4, Push/Pull Tabs, Magenta, 3 m - Fiber Optic for Network Device, Switch - Fan-out Cable - 9.84 ft - 1 x MTP/MPO Female Network - 8 x LC Male Network - Magenta

  • Push/pull tab connectors install/remove with one hand
  • Plenum-rated jacket for connecting in ceilings, walls and ducts
  • Magenta color for easy OM4 identification
  • Slim, space-saving uniboot design for neat cable management
  • Premium-grade ceramic ferrule designed for fast applications

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number N845-03M-8L-MG
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Model N845-03M-8L-MG
Product Name N845-03M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable, Magenta, 3 m
Marketing Information The three-meter N845-03M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one male MTP/MPO and eight male LC connectors, this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction.

Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-03M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim, space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts. The sturdy plastic housing is built to last a long time.

More from the Manufacturer
Product Type Network Cable

Technical Information

Cable Type Fiber Optic
Cable Characteristic Fan-out Cable
Fiber Optic Mode Multi-mode
Cable Length 10 ft mm
Connector Type on First End MTP/MPO Network - Female
Connector on First End Details 1 x MTP/MPO Network - Female
Connector Type on Second End LC Network - Male
Connector on Second End Details 8 x LC Network - Male
Device Supported Network Device
Device Supported Switch
Data Transfer Rate 40 Gbit/s Bps
Features Uniboot Connector

Physical Characteristics

Color Family Pink
Product Color Magenta

Miscellaneous

Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin China

Warranty

Limited Warranty Lifetime
