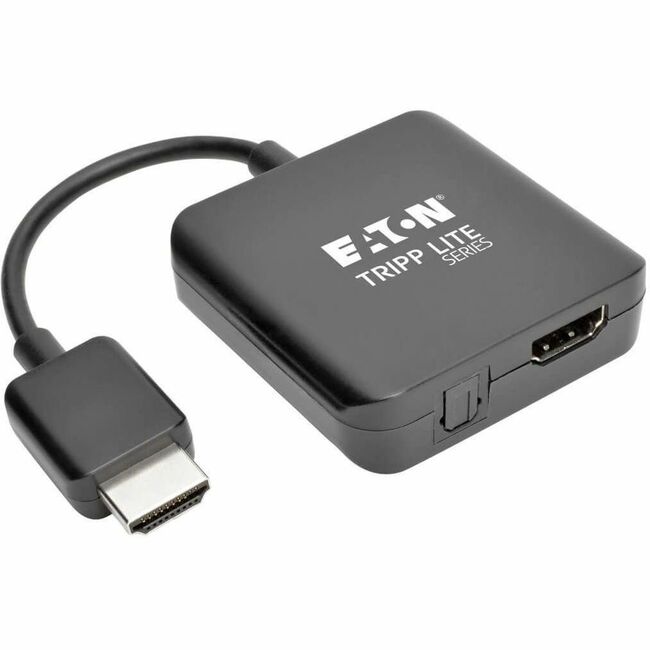

Eaton P130-06N-AUDIO Tripp Lite Series 4K HDMI Audio De-Embedder/Extractor with TOSLINK and 3.5 mm Stereo Output, 5.1 Channel, HDCP, 4K 30Hz, 6-in. (15.24 cm)

Name: Eaton P130-06N-AUDIO Tripp Lite Series 4K HDMI Audio De-Embedder/Extractor with TOSLINK and 3.5 mm Stereo Output, 5.1 Channel, HDCP, 4K 30Hz, 6-in. (15.24 cm)
Brand: Eaton
SKU: P130-06N-AUDIO
Price: 92.7 USD
Availability: InStock

Part Number:

P130-06N-AUDIO

90 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

90 pieces ready to ship - additional units ship in 7-10 business days.

$92.70

USD + Applicable Tax

Eaton Tripp Lite Series 4K HDMI Audio De-Embedder/Extractor with TOSLINK and 3.5 mm Stereo Output, 5.1 Channel, HDCP, 4K 30Hz, 6-in. (15.24 cm) - Functions: Audio Embedding, Audio Extraction - USB - Audio Line Out - External

Built-in 6 in. HDMI cable connects to audio/video source
Supports multi-channel audio up to 5.1 surround sound
Features 3.5 mm stereo and TOSLINK optical audio outputs
Transmits UHD video resolutions up to 3840 x 2160 (4K x 2K)
Powered via USB Micro-B connection

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	P130-06N-AUDIO
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	P130-06N-AUDIO
Product Name	P130-06N-AUDIO UHD 4K x 2K HDMI Audio De-Embedder/Extractor
Marketing Information	The low-profile P130-06N-AUDIO UHD 4K x 2K HDMI Audio De-Embedder/Extractor is recommended for connecting an HDMI source, such as a Blu-ray™ player or desktop computer, to audio speakers that don't have an HDMI input. It separates the audio track from the HDMI signal and sends it directly to an alternate digital or analog system. It features 3.5 mm stereo and TOSLINK digital optical audio outputs to match most non-HDMI receivers and audio systems. The P130-06N-AUDIO supports two-channel stereo and multi-channel audio up to 5.1 surround sound. It also supports uncompressed audio, such as LPCM, and compressed audio formats, including DTS® and Dolby Digital®. An LED indicates when the unit is receiving power, transmitting an audio/video signal or transmitting 5.1-channel surround sound. On the video side, the HDCP 1.4-compliant P130-06N-AUDIO transmits UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. It supports 24-bit True Color (8 bits per channel) at 4K x 2K, 36-bit Deep Color (12 bits per channel) at 1080p, and optional 3D formats up to 300 MHz. Connect the included USB Micro-B cable between the P130-06N-AUDIO and a USB port on the HDMI source or a USB charger to power the unit. Features Extracts Audio from an HDMI Signal and Sends It to a Separate Audio System Recommended for connecting HDMI source to speakers that don't have HDMI input 3.5 mm stereo and TOSLINK optical outputs connect to analog or digital non-HDMI audio equipment LED indicates the unit is receiving power or transmitting an audio/video signal Built-in 6 in. HDMI cable connects to audio/video source Included 3 ft. USB Micro-B cable provides power to the unit Versatile Audio Options Supports 2-channel stereo and multi-channel audio up to 5.1 surround sound Supports uncompressed, such as LPCM, and compressed audio, including DTS and Dolby Digital Vibrant UHD Video Transmits UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz Supports 24-bit True Color (8 bits per channel) at 4K x 2K Supports 36-bit Deep Color (12 bits per channel) at 1080p Supports optional 3D formats up to 300 MHz Complies with HDCP 1.4 standards More from the Manufacturer
Product Type	Signal Extractor

Technical Information

Functions	Audio Embedding
Functions	Audio Extraction

Interfaces/Ports

USB	Yes
HDMI	Yes
Audio Line Out	Yes

Physical Characteristics

Form Factor

External

Miscellaneous

Package Contents	P130-06N-AUDIO UHD 4K x 2K HDMI Audio De-Embedder/Extractor USB Micro-B Cable, 0.5 ft. Owner's Manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
