Eaton PDUMV30HVNETLX Tripp Lite by Eaton PDU 5.5kW Single-Phase Switched PDU - LX Interface 208/230V Outlets (20 C13 & 4 C19) L6-30P 0U TAA

Name: Eaton PDUMV30HVNETLX Tripp Lite by Eaton PDU 5.5kW Single-Phase Switched PDU - LX Interface 208/230V Outlets (20 C13 & 4 C19) L6-30P 0U TAA
Brand: Eaton
SKU: PDUMV30HVNETLX
Price: 1533.64 USD
Availability: InStock

Part Number:

PDUMV30HVNETLX

74 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

74 pieces ready to ship - additional units ship in 7-10 business days.

$1,533.64

USD + Applicable Tax

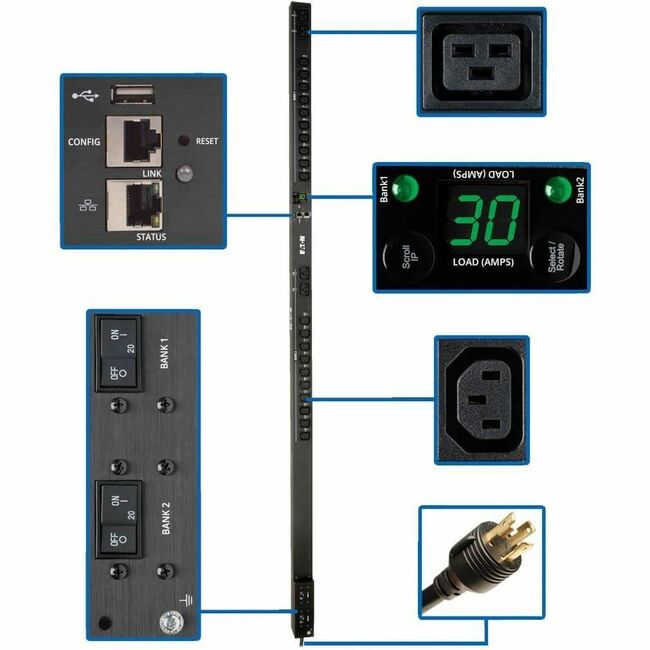

Tripp Lite by Eaton PDU 5.5kW Single-Phase Switched PDU - LX Interface 208/230V Outlets (20 C13 & 4 C19) L6-30P 0U TAA - Switched - NEMA L6-30P - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 5800 VA - 0U - Vertical - Rack Mount - TAA Compliant

5/5.8kW 208/240V 30A switched PDU
24 individually controllable outlets-20 C13, 4 C19
Built-in LX Platform interface for remote access
Digital ammeter for on-site load monitoring in real time
NEMA L6-30P input with 10 ft. AC power cord

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMV30HVNETLX
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Model	PDUMV30HVNETLX
Product Name	PDUMV30HVNETLX 24-Outlet PDU
Marketing Information	The PDUMV30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19). LEDs indicate each outlet's on/off power status. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Single Phase
Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Detail	4 x IEC 60320 C19
Receptacle Detail	20 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	230 V AC
Output Voltage	230 V AC
Power Rating (Watt)	5800 W
Input Current	30 A

Management

Protocols:

HTTP
HTTPS
SMTP
SNMPv1
SNMPv2
SNMPv3
telnet
SSH
FTP
DHCP
NTP

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	70" mm
Width	2.2" mm
Depth	2.6" mm
Weight (Approximate)	11.50 lb g

Miscellaneous

Package Contents	PDUMV30HVNETLX 24-Outlet PDU Configuration Cable 24 x Cable Ties 2 x Cord Retention Brackets Rack-mounting Hardware Mounting Bracket Accessory Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
