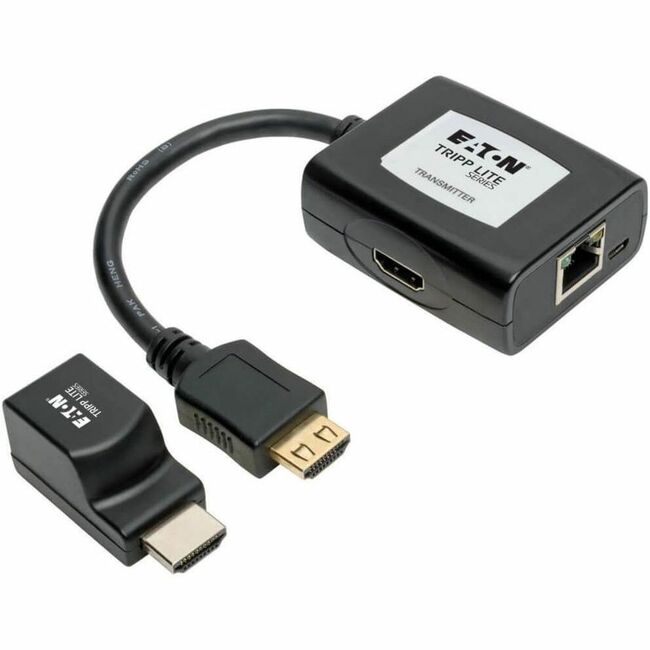

Eaton B126-1P1M-U-POC Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver for Video/Audio, PoC, Up to 100 ft. (30 m), TAA

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton B126-1P1M-U-POC Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver for Video/Audio, PoC, Up to 100 ft. (30 m), TAA

Part Number:

B126-1P1M-U-POC

1343 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

1343 pieces ready to ship - additional units ship in 7-10 business days.

$135.85

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Eaton Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver for Video/Audio, PoC, Up to 100 ft. (30 m), TAA - 1 Input Device - 1 Output Device - 100 ft Range - 2 x Network (RJ-45) - 1 x HDMI InHDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - TAA Compliant

  • Transmitter extends HDMI A/V signal to low-profile receiver
  • Recommended for digital signs, trade shows, classrooms, churches, offices, retail settings and other HDMI A/V applications
  • Extends a 1080p (@ 60 Hz) signal up to 50 ft. from source
  • Extends a 1080i signal up to 100 ft. from source
  • Supports 7.1-channel surround sound (multi-channel or PCM) audio
  • HDCP and 3D compliant

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number B126-1P1M-U-POC
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Model B126-1P1M-U-POC
Product Name HDMI over Cat5/Cat6 Extender Kit, Power over Cable, 1080p @ 60 Hz, TAA
Marketing Information The B126-1P1M-U-POC HDMI over Cat5/Cat6 Extender Kit includes a transmitter and a low-profile receiver that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is recommended for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow.

HDMI cable (see Tripp Lite's P568-Series) connects the audio/video source, such as a Blu-ray™ player, and optional local display to the transmitter's HDMI ports. Cat5e/6/6a cable connects the transmitter to the receiver's RJ45 port (for best results, use 24 AWG solid-wire Cat6 cable, such as Tripp Lite's N202-Series). The receiver plugs directly into the display's HDMI input port. Built-in PoC technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed.

The B126-1P1M-U-POC can extend a high-definition 1080p (at 60 Hz) signal up to 50 feet and a 1080i signal up to 100 feet. In addition to crystal-clear video, the B126-1P1M-U-POC delivers full, rich audio up to 7.1-channel surround sound (multi-channel or PCM) and supports 3D and HDCP standards. Easy to set up with no software or drivers to install. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

More from the Manufacturer
Product Type Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology Wired
Number of Input Devices Supported 1
Number of Output Devices Supported 1
Maximum Operating Distance 100 ft mm

Video

Graphics Modes Full HD
Maximum Video Resolution 1920 x 1080

Interfaces/Ports

Network (RJ-45) Yes
HDMI In Yes
HDMI Out Yes
Number of Network (RJ-45) Ports 2
Number of HDMI Inputs 1

Media & Performance

Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 6a

Miscellaneous

Package Contents
  • Transmitter Unit
  • Receiver Unit
  • USB Micro-B cable, 1 ft.
  • USB Micro-B cable, 3 ft.
  • Owner's Manual
Country of Origin Taiwan
TAA Compliant Yes

Warranty

Limited Warranty 1 Year
