Eaton PDU3EVSR6L2130 Tripp Lite by Eaton PDU 10kW 200-240V 3PH Switched PDU - LX Interface Gigabit 30 Outlets L21-30P Input LCD 1.8 m Cord 0U 1.8 m Height TAA

Name: Eaton PDU3EVSR6L2130 Tripp Lite by Eaton PDU 10kW 200-240V 3PH Switched PDU - LX Interface Gigabit 30 Outlets L21-30P Input LCD 1.8 m Cord 0U 1.8 m Height TAA
Brand: Eaton
SKU: PDU3EVSR6L2130
Price: 2449.8 USD
Availability: InStock

Part Number:

PDU3EVSR6L2130

12 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

12 pieces ready to ship - additional units ship in 7-10 business days.

$2,449.80

USD + Applicable Tax

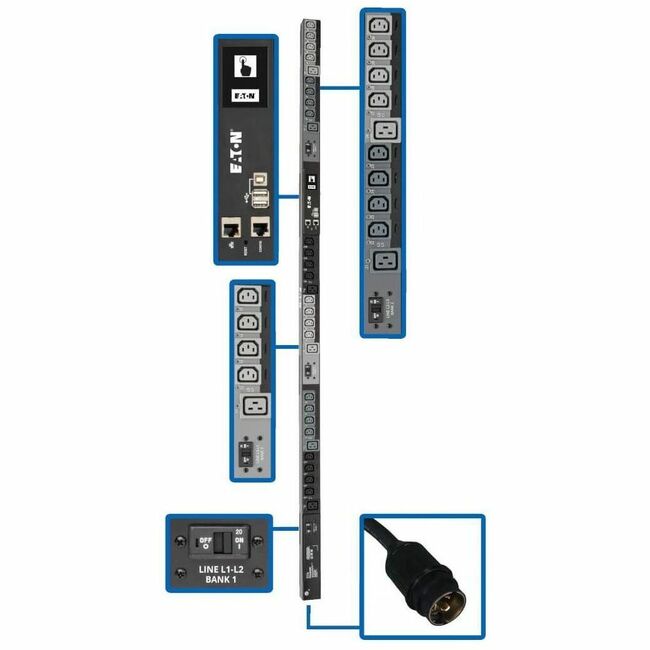

Tripp Lite by Eaton PDU 10kW 200-240V 3PH Switched PDU - LX Interface Gigabit 30 Outlets L21-30P Input LCD 1.8 m Cord 0U 1.8 m Height TAA - Switched - NEMA L21-30P - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant

10kW 200/208/240V 3-phase switched 0U PDU
30 individually controllable outlets-24 C13, 6 C19
Built-in LX Platform interface for remote access
NEMA L21-30P input with 6 ft. AC power cord
Touchscreen LCD with mobile access option via QR code

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDU3EVSR6L2130
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Model	PDU3EVSR6L2130
Product Name	PDU3EVSR6L2130 30-Outlet PDU
Marketing Information	The PDU3EVSR6L2130 10kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 30 switched outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with NEMA L21-30P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A color touchscreen LCD lets you toggle between menus to monitor input and output current levels, as well as environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device. The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Three Phase
Plug/Connector Type	NEMA L21-30P
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Detail	6 x IEC 60320 C19
Receptacle Detail	24 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	230 V AC
Output Voltage	200 V AC
Output Voltage	208 V AC
Output Voltage	240 V AC
Power Rating (Watt)	10 kW
Input Current	24 A

Management

Protocols:

HTTP
HTTPS
SMTP
SNMPv1
SNMPv2
SNMPv3
telnet
SSH
FTP
DHCP
NTP

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	70" mm
Width	2.2" mm
Depth	2.9" mm
Weight (Approximate)	16.55 lb g

Miscellaneous

Package Contents	PDU3EVSR6L2130 30-Outlet PDU Built-in LX Platform Interface Configuration Cable 30 x Plug-lock Insert Sleeves Rack-mounting Hardware Mounting Bracket Accessory Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
