Eaton N392-38M-3X8-AP Tripp Lite Series MTP/MPO (APC) Singlemode Slim Trunk Cable, 24-Strand, 40/100 GbE, 40/100GBASE-PLR4, Plenum, 6mm Dual Jacket, 38 m (124 ft.)

Name: Eaton N392-38M-3X8-AP Tripp Lite Series MTP/MPO (APC) Singlemode Slim Trunk Cable, 24-Strand, 40/100 GbE, 40/100GBASE-PLR4, Plenum, 6mm Dual Jacket, 38 m (124 ft.)
Brand: Eaton
SKU: N392-38M-3X8-AP
Price: 1175.71 USD
Availability: InStock

Part Number:

N392-38M-3X8-AP

8 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

8 pieces ready to ship - additional units ship in 7-10 business days.

$1,175.71

USD + Applicable Tax

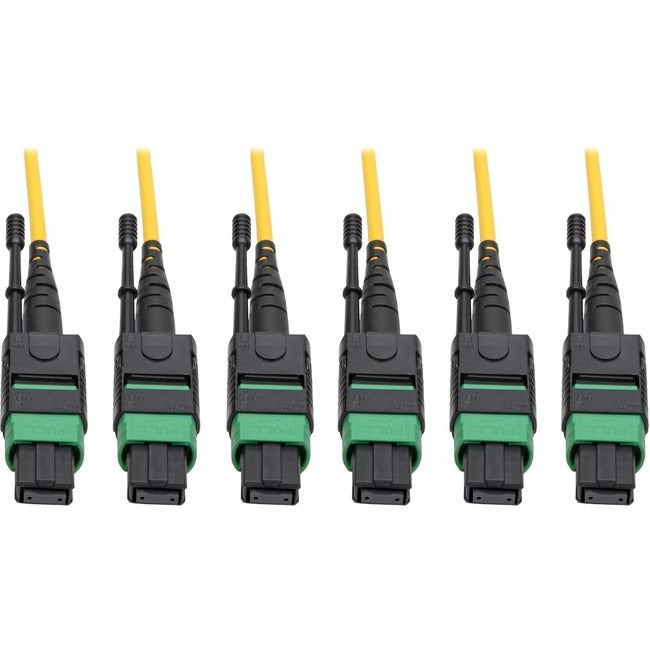

Eaton Tripp Lite Series MTP/MPO (APC) Singlemode Slim Trunk Cable, 24-Strand, 40/100 GbE, 40/100GBASE-PLR4, Plenum, 6mm Dual Jacket, 38 m (124 ft.) - Fiber Optic for Network Device - 12.50 GB/s - Patch Cable - 124.67 ft - 3 x MTP/MPO Female Network - 3 x MTP/MPO Female Network - 8.3/125 µm - Yellow

Offers dependable network connectivity for stable performance, supporting uninterrupted operations and consistent data flow across connected systems
Features fiber optic cable type to deliver high-bandwidth data transmission with minimal signal loss, ensuring optimal performance in network setups
Provides 90-degree angled connectivity for space-saving installation, helping maintain a clean and organized connection layout
With MTP/MPO Network - Female connector, it is compatible with a network device, providing a secure link for uninterrupted operation

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	N392-38M-3X8-AP
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	N392-38M-3X8-AP
Product Name	N392-38M-3X8-AP Fiber Optic Patch Network Cable
Marketing Information	The N392-38M-3X8-AP MTP/MPO (APC) Singlemode Slim Trunk Cable (3xF/3xF) supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. With three female MTP/MPO connectors on each end, this singlemode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames). The factory-terminated 8-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. The APC connectors are angled to prevent infrared light entering the fiber from bouncing back into the laser. Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks, this cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. The N392-38M-3X8-AP is colored yellow for instant identification in a crowded switch or patch panel as a singlemode cable. Push/pull tab connectors are easily accessible in high-density data center applications and make the plug-and-play cable easy to install and remove with one hand. The 6-millimeter dual plenum-rated jacket and bend-insensitive fiber are perfect for connecting high-speed network components in ceilings, walls and ducts. Features 8.3/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications Designed to extend high-density connections between network equipment in telecom rooms and data centers Recommended for patching between data center MDFs and IDFs Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks 6 mm dual plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts Yellow-colored for identification as a singlemode cable Factory-Terminated MTP/MPO APC Connectors with Push/Pull Tabs 8-fiber female connectors 12 times denser than SC connectors Push/pull tab connectors easy to install and remove with one hand Angled connectors prevent light from reflecting back into laser 100% tested for low insertion loss and back reflection Package Includes N392-38M-3X8-AP MTP/MPO Singlemode Slim Trunk Cable, Yellow, 38 m More from the Manufacturer
Product Type	Network Cable

Technical Information

Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Fiber Optic Mode	Single-mode
Fiber Optic Cable Core/Cladding Specification	8.3/125 µm
Cable Length	124.70 ft mm
Connector Type on First End	MTP/MPO Network - Female
Connector on First End Details	3 x MTP/MPO Network - Female
Connector Type on Second End	MTP/MPO Network - Female
Connector on Second End Details	3 x MTP/MPO Network - Female
Device Supported	Network Device
Data Transfer Rate	100 Gbit/s Bps
Features	Angled Connector

Physical Characteristics

Color Family	Yellow
Product Color	Yellow

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	China
