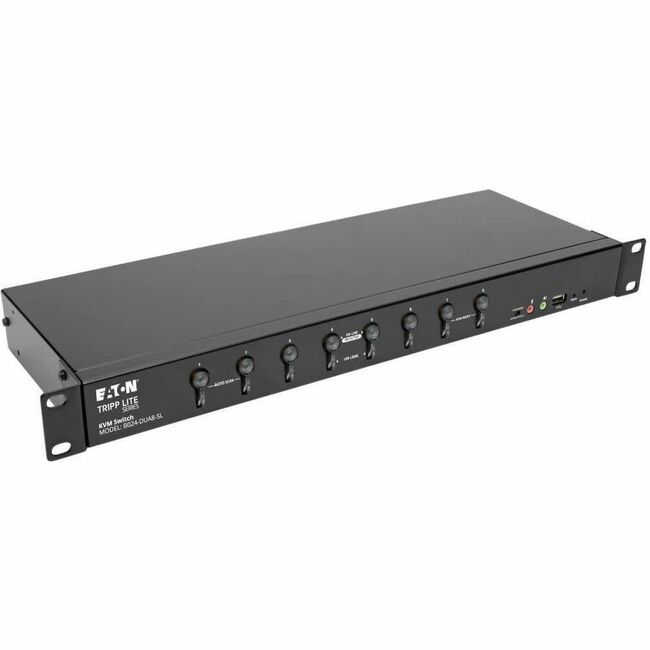

Eaton B024-DUA8-SL Tripp Lite by Eaton 8-Port DVI/USB KVM Switch with Audio and USB 2.0 Peripheral Sharing 1U Rack-Mount Single-Link 1920 x 1200 (1080p)

Name: Eaton B024-DUA8-SL Tripp Lite by Eaton 8-Port DVI/USB KVM Switch with Audio and USB 2.0 Peripheral Sharing 1U Rack-Mount Single-Link 1920 x 1200 (1080p)
Brand: Eaton
SKU: B024-DUA8-SL
Price: 1010.67 USD
Availability: InStock

Part Number:

B024-DUA8-SL

29 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

29 pieces ready to ship - additional units ship in 7-10 business days.

$1,010.67

USD + Applicable Tax

Tripp Lite by Eaton 8-Port DVI/USB KVM Switch with Audio and USB 2.0 Peripheral Sharing 1U Rack-Mount Single-Link 1920 x 1200 (1080p) - 8 Computer(s) - 1 Local User(s) - 2048 x 1536 - 11 x USB - 9 x DVI1 x VGA - Rack-mountable - 1U

8-port KVM switch recommended for IT managers needing centralized access to a variety of digital and analog servers
Switch between connected computers via front-panel buttons, keyboard hotkeys or OSD
Supports digital video resolutions up to 1920 x 1200 (1080p) and analog video resolutions up to 2048 x 1536
Supports 2.1-channel surround sound with full bass response
Also supports VGA display when connected to a DVI to VGA adapter
Expand the number of controlled computers by cascading up 3 levels of KVM switches
Allows stacking of up to 4 KVMs for connecting computers with up to 4 DVI outputs and displaying video on up to 4 console monitors
2-port front-panel USB 2.0 hub allows sharing of devices (printers, hard drives, scanners, webcams) between connected computers
OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian and French
Text-based interface offers direct access to every connected computer

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	B024-DUA8-SL
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	B024-DUA8-SL
Product Name	B024-DUA8-SL DVI/USB 8-Port KVM Switch
Marketing Information	The B024-DUA8-SL DVI/USB KVM Switch allows you to control eight computers with audio using a single DVI monitor, USB keyboard and USB mouse. Plus, by cascading up to three levels of KVM switches, you can control up to 512 computers at the same time. Recommended for IT managers needing centralized access to a variety of digital and analog servers, this DVI/USB KVM switch also supports a VGA display when connected to a DVI to VGA adapter (such as Tripp Lite's P556-Series). The DVI-I single-link connector supports digital video resolutions up to 1920 x 1200, including 1080p, and analog video resolutions up to 2048 x 1536. The multi-view installation feature lets you stack up to four KVM switches for connecting computers with up to four DVI outputs and displaying video on up to four console monitors, giving you flexibility in video output. A 3.5 mm microphone jack provides audio input to connected computers. A 3.5 mm audio jack provides 2.1-channel sound to connected speakers. The OSD presents a text-based interface in eight different languages and allows backup of KVM configuration and user profile information. Dual-tier password protection enhances security for an administrator and up to four users. A DB9 cable is included for firmware upgrades that keep the KVM switch up to date with the latest technology. Easy front-panel access to USB 2.0 hub ports allows quick connection of two USB devices, such as flash drives and printers. More from the Manufacturer
Product Type	KVM Switchbox

Technical Information

Number of Computers Supported	8
Number of Local Users Supported	1

Video

Maximum Video Resolution

2048 x 1536

Interfaces/Ports

USB	Yes
DVI	Yes
VGA	Yes
Number of USB Ports	11
Number of DVI Ports	9
Number of VGA Ports	1

Power Description

Input Voltage Range

120V AC to 230V AC

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	1U
Height	1.7" mm
Width	17.2" mm
Depth	6.3" mm
Weight (Approximate)	6.20 lb g

Miscellaneous

Package Contents	B024-DUA8-SL DVI/USB 8-Port KVM Switch 2 x DVI/USB KVM Cable Kits, 6 ft. External Power Supply w/NEMA 1-15P Plug and 5 ft. Cord (Input:100-240V, 50/60 Hz, 0.5A; Output: 5.3V 2.4A) RJ11 to DB9 Firmware Upgrade Cable, 6 ft. Grounding Wire Rack-Mounting Hardware Rubber Feet Owner's Manual
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
