Eaton PDUMNV20HV2LX Tripp Lite by Eaton PDU 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform 18 C13 2 C19 Outlets C20 / L6-20P Inputs 0U 900mm Height TAA

Name: Eaton PDUMNV20HV2LX Tripp Lite by Eaton PDU 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform 18 C13 2 C19 Outlets C20 / L6-20P Inputs 0U 900mm Height TAA
Brand: Eaton
SKU: PDUMNV20HV2LX
Price: 705.64 USD
Availability: InStock

Part Number:

PDUMNV20HV2LX

60 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

60 pieces ready to ship - additional units ship in 7-10 business days.

$705.64

USD + Applicable Tax

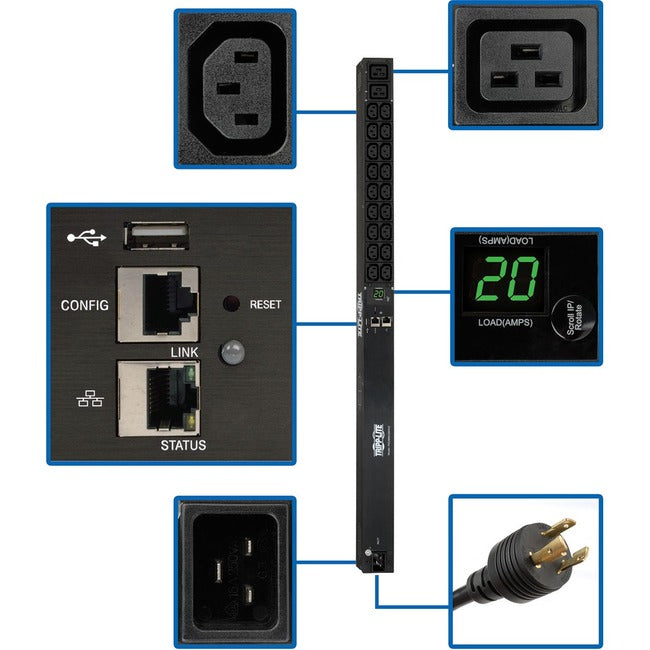

Tripp Lite by Eaton PDU 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform 18 C13 2 C19 Outlets C20 / L6-20P Inputs 0U 900mm Height TAA - Monitored - NEMA L6-20P, IEC 60320 C20 - 2 x IEC 60320 C19, 18 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant

3.3/3.7kW 208/230V single-phase monitored 90cm 0U PDU
20 outlets-18 C13, 2 C19-with plug-lock insert sleeves
Built-in Java-free LX Platform interface for remote access 24/7
Digital ammeter for on-site load monitoring in real time
C20 inlet input with detachable 10 ft. NEMA L6-20P power cord

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMNV20HV2LX
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Model	PDUMNV20HV2LX
Product Name	PDUMNV20HV2LX 20-Outlet PDU
Marketing Information	The PDUMNV20HV2LX 3.3/3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime. Recommended for your IT or industrial application, the 0U PDU features 20 outlets (18 C13 and 2 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-foot cord with NEMA L6-20P plug is included. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Single Phase
Plug/Connector Type	NEMA L6-20P
Plug/Connector Type	IEC 60320 C20
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Detail	2 x IEC 60320 C19
Receptacle Detail	18 x IEC 60320 C13

Power Description

Input Voltage	230 V AC
Output Voltage	208 V AC
Output Voltage	230 V AC
Power Rating (Watt)	3700 W
Input Current	20 A

Management

Protocols:

IPv4
IPv6
HTTP
HTTPS
SMTP
SNMPv1
SNMPv2
SNMPv3
telnet
SSH
FTP
DHCP
NTP

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	35.5" mm
Width	2.2" mm
Depth	1.9" mm
Weight (Approximate)	6.50 lb g

Miscellaneous

Package Contents	PDUMNV20HV2LX 20-Outlet PDU Built-in LX Platform Interface Detachable NEMA L6-20P to C19 Power Cord, 10 ft. Configuration Cable 20 x Plug-lock Inserts Rack-mounting hardware Mounting Bracket Accessory Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
