Eaton PDUMVR20NETLX Tripp Lite by Eaton PDU 1.9kW Single-Phase Switched PDU LX Platform Outlet Monitoring 120V Outlets (24 NEMA 5-15/20R) L5-20P Plug 0U TAA

Name: Eaton PDUMVR20NETLX Tripp Lite by Eaton PDU 1.9kW Single-Phase Switched PDU LX Platform Outlet Monitoring 120V Outlets (24 NEMA 5-15/20R) L5-20P Plug 0U TAA
Brand: Eaton
SKU: PDUMVR20NETLX
Price: 1822.52 USD
Availability: InStock

Part Number:

PDUMVR20NETLX

124 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

124 pieces ready to ship - additional units ship in 7-10 business days.

$1,822.52

USD + Applicable Tax

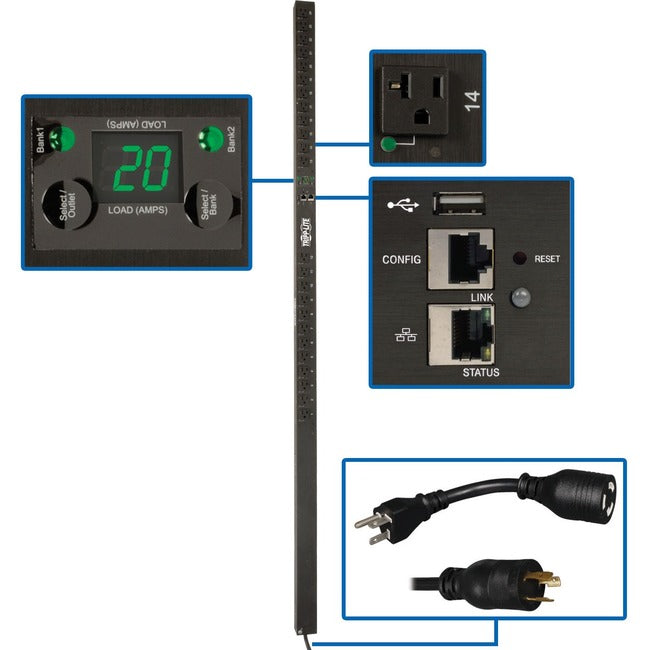

Tripp Lite by Eaton PDU 1.9kW Single-Phase Switched PDU LX Platform Outlet Monitoring 120V Outlets (24 NEMA 5-15/20R) L5-20P Plug 0U TAA - Switched - NEMA 5-20P, NEMA L5-20P - 24 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant

1.9kW 120V single-phase switched 70-inch 0U PDU
24 controllable NEMA 5-15/20R outlets in 2 load banks
Built-in Java-free LX Platform interface for 24/7 remote access
Digital ammeter for on-site load monitoring in real time
10 ft. power cord with NEMA L5-20P plug and 5-20P adapter

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMVR20NETLX
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Model	PDUMVR20NETLX
Product Name	PDUMVR20NETLX 24-Outlet PDU
Marketing Information	The PDUMVR20NETLX 1.9kW Single-Phase Switched PDU with individual outlet metering provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime. The switched PDU features 24 individually controllable NEMA 5-15/20R outlets with cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-20P plug and optional 5-20P adapter connects the PDU to an AC source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each load bank's current, each outlet's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Single Phase
Plug/Connector Type	NEMA 5-20P
Plug/Connector Type	NEMA L5-20P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	24 x NEMA 5-15/20R

Power Description

Input Voltage	120 V AC
Output Voltage	100 V AC
Output Voltage	120 V AC
Output Voltage	127 V AC
Power Rating (Watt)	2030 W
Input Current	20 A

Management

Protocols:

IPv4
IPv6
HTTP
HTTPS
SMTP
SNMPv1
SNMPv2
SNMPv3
telnet
SSH
FTP
DHCP
NTP

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	70" mm
Width	2.2" mm
Depth	2" mm
Weight (Approximate)	9.60 lb g

Miscellaneous

Package Contents	PDUMVR20NETLX 24-Outlet PDU Built-in LX Platform Interface NEMA 5-20P Plug Adapter Configuration Cable Cord Retention Brackets 24 x Cable Ties Rack-mounting Hardware Mounting Bracket Accessory Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
