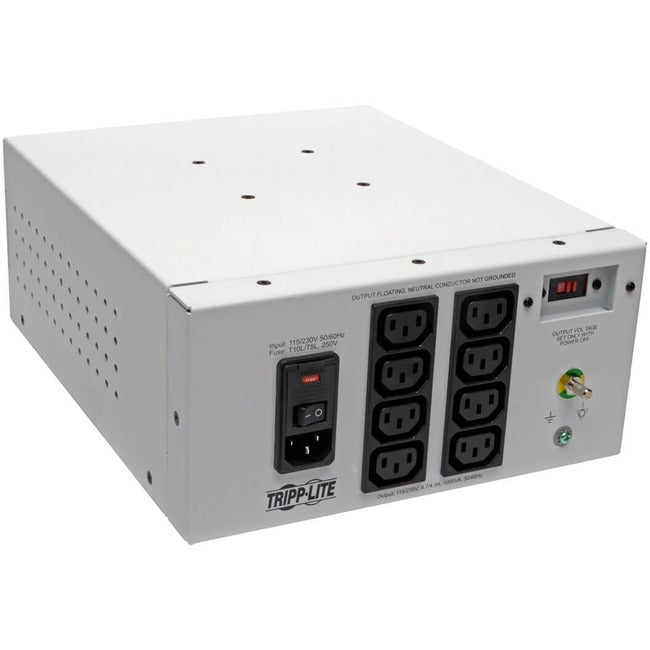

Eaton IS1000HGDV Tripp Lite Series Isolator Series Dual-Voltage 115/230V 1000W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 8 C13 Outlets

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton IS1000HGDV Tripp Lite Series Isolator Series Dual-Voltage 115/230V 1000W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 8 C13 Outlets

Part Number:

IS1000HGDV

132 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

132 pieces ready to ship - additional units ship in 7-10 business days.

$1,459.22

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Eaton Tripp Lite Series Isolator Series Dual-Voltage 115/230V 1000W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 8 C13 Outlets - 1000 VA - 120 V AC, 230 V AC Input - 115 V AC, 230 V AC Output

  • Protects sensitive equipment from EMI/RFI line noise and surges
  • Cumulative leakage current less than 80 µA
  • Automatically shuts down all outlets in case of overload
  • Offers complete isolation from input AC mains power
  • Ideal for use in any industrial, network or medical environment

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number IS1000HGDV
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Line Isolator
Product Model IS1000HGDV
Product Name Isolator IS1000HGDV Isolation Transformer
Marketing Information The IS1000HGDV Isolator® Series Dual-Voltage 115/230V 1000W 50/60Hz Medical-Grade™ Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage, step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering, its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment.

An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS1000HGDV and connected equipment to levels less than 80 microamps, while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions.

Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS1000HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode.

Components connect to eight C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial, medical, office, network or audio/video environment. Requires a C14-to-C13 AC input cord (sold separately).

More from the Manufacturer
Product Type Isolation Transformer

Technical Information

Power Rating 1000 VA W
Input Receptacle Type IEC 60320 C14
Output Receptacle Type IEC 60320 C13

Power Description

Input Voltage 120 V AC
Input Voltage 230 V AC
Output Voltage 115 V AC
Output Voltage 230 V AC
Maximum Line Current 10 A

Physical Characteristics

Height 5.1" mm
Width 9.8" mm
Depth 11.8" mm
Form Factor Cabinet
Weight (Approximate) 30.25 lb g

Miscellaneous

Package Contents
  • Isolator IS1000HGDV Isolation Transformer
  • 2 x Fuse Sets (115V and 230V Operation)
  • Input/Output Cable Selector Data Sheet
  • Owner's Manual
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty 2 Year
