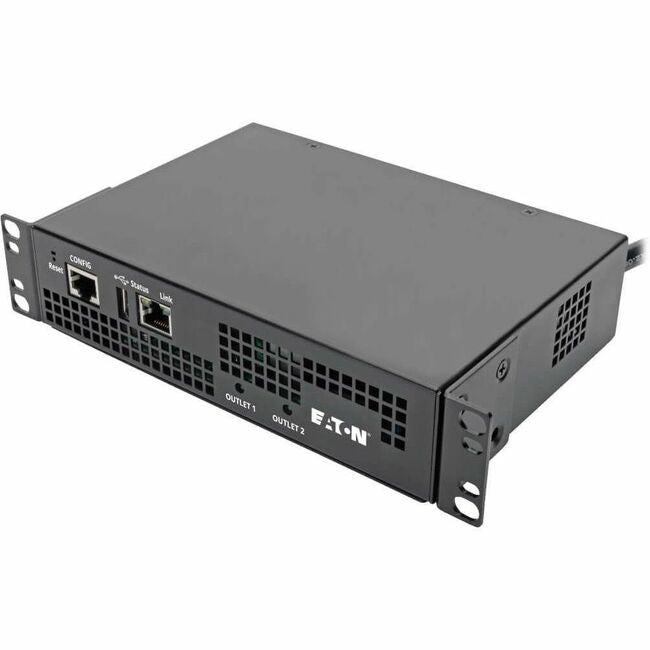

Eaton PDU15NETLX Tripp Lite by Eaton PDU 1.4kW 120V Single-Phase Switched Mini PDU - LX Platform Interface NEMA 5-15P 6 ft. (1.83 m) Cord 0U TAA

Name: Eaton PDU15NETLX Tripp Lite by Eaton PDU 1.4kW 120V Single-Phase Switched Mini PDU - LX Platform Interface NEMA 5-15P 6 ft. (1.83 m) Cord 0U TAA
Brand: Eaton
SKU: PDU15NETLX
Price: 382.72 USD
Availability: InStock

Part Number:

PDU15NETLX

599 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

599 pieces ready to ship - additional units ship in 7-10 business days.

$382.72

USD + Applicable Tax

Tripp Lite by Eaton PDU 1.4kW 120V Single-Phase Switched Mini PDU - LX Platform Interface NEMA 5-15P 6 ft. (1.83 m) Cord 0U TAA - Switched - NEMA 5-15P - 2 x NEMA 5-15R - 120 V AC - 0U - Vertical - Under-counter Mount - Rack-mountable, Wall-mountable - TAA Compliant

Built-in LX Platform interface allows full remote access 24/7 with email notifications
2 switched NEMA 5-15R outlets can be remotely rebooted, locked or shut down
NEMA 5-15P input with 6 ft. cord connects to mains power, generator or UPS system
Mounts on wall, under counter or in 0U of rack space using included brackets
Ideal low-cost option for small-scale installations requiring no more than 2 outlets

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDU15NETLX
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Model	PDU15NETLX
Product Name	PDU15NETLX 2-Outlet PDU
Marketing Information	Switched PDU Provides Advanced Network Control and Remote Power Monitoring This 0U PDU is an ideal low-cost option for small-scale network configurations where only one or two outlets are needed. It features two NEMA 5-15R individually switched outlets, which can be remotely controlled to turn on, turn off, recycle or lock out power to unresponsive devices. Front-panel LEDs indicate each outlet's on/off status. Built-In LX Platform Network Interface Offers 24/7 Access The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Automated alerts help prevent accidental overloads, power loss and downtime. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration lets you assign network settings to the card automatically, reducing the need for manual configuration. Reduce Service Calls with Auto Probe Autonomous Device Management The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA). Easy Connection to an AC Power Source A six-foot power cord with NEMA 5-15P plug connects the PDU15NETLX 0U PDU to a compatible AC power source, generator or protected UPS. Flexible Installation Options The switched PDU mounts vertically in 0U of rack space, on a wall or under a counter using the included mounting brackets and user-supplied hardware. Its half-width rack-mount form factor allows you to place it on a shelf or desktop. TAA-Compliant for GSA Schedule Purchases The PDU15NETLX is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 2-Year Warranty and Environmentally Responsible Design The rugged metal PDU15NETLX comes with a 2-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Single Phase
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	2 x NEMA 5-15R

Power Description

Input Voltage	120 V AC
Output Voltage	100 V AC
Output Voltage	120 V AC
Output Voltage	127 V AC
Power Rating (Watt)	1520 W
Input Current	15 A

Management

Protocols:

IPv4
IPv6
HTTP
HTTPS
SMTP
SNMPv1
SNMPv2
SNMPv3
telnet
SSH
FTP
DHCP
NTP
DHCP/Manual

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Mount Type	Wall-mountable
Placement	Under-counter
Rack Height	0U
Height	1.7" mm
Width	7" mm
Depth	5" mm
Weight (Approximate)	2.64 lb g

Miscellaneous

Package Contents	PDU15NETLX 2-Outlet PDU 2 x Mounting Brackets w/Screws Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
