Eaton PDU3XEVSRHWB Tripp Lite Series 28.8kW 220-240V 3PH Switched PDU - LX Interface, Gigabit, 30 Outlets, Hardwire 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA

Name: Eaton PDU3XEVSRHWB Tripp Lite Series 28.8kW 220-240V 3PH Switched PDU - LX Interface, Gigabit, 30 Outlets, Hardwire 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA
Brand: Eaton
SKU: PDU3XEVSRHWB
Price: 2574.16 USD
Availability: InStock

Part Number:

PDU3XEVSRHWB

9 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

9 pieces ready to ship - additional units ship in 7-10 business days.

$2,574.16

USD + Applicable Tax

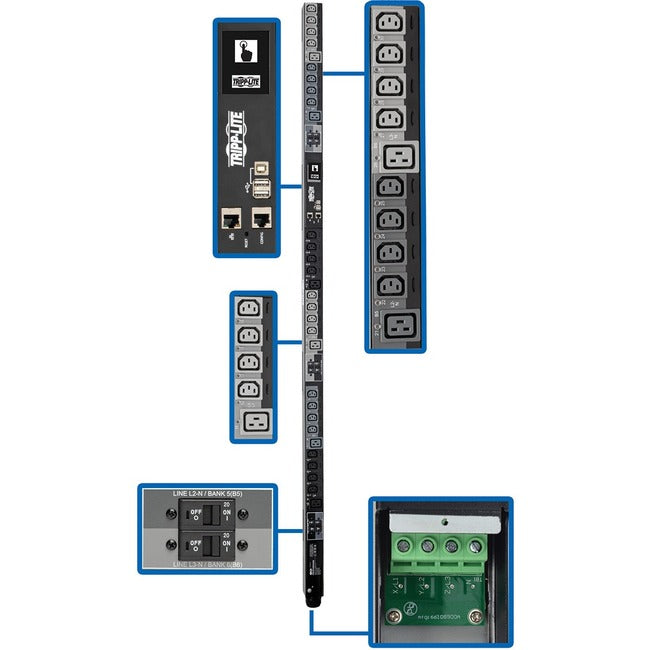

Eaton Tripp Lite Series 28.8kW 220-240V 3PH Switched PDU - LX Interface, Gigabit, 30 Outlets, Hardwire 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA - Switched - Hardwired - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 380 V AC, 400 V AC, 415 V AC - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant

28.8kW 220/230/240V 3-phase switched 1.8m 0U PDU
30 individually controllable outlets-24 C13, 6 C19
Built-in LX Platform interface for remote access 24/7
Hardwire 380/400/415V input
Touchscreen LCD with mobile access option via QR code

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDU3XEVSRHWB
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	PDU3XEVSRHWB
Product Name	PDU3XEVSRHWB 30-Outlet PDU
Marketing Information	The PDU3XEVSRHWB 28.8kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime. The 0U PDU features 30 switched 220/230/240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. Hardwire 380/400/415V input connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device. More from the Manufacturer
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Three Phase
Plug/Connector Type	Hardwired
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Detail	6 x IEC 60320 C19
Receptacle Detail	24 x IEC 60320 C13
Protection Type	Overload Protection

Power Description

Input Voltage	380 V AC
Input Voltage	400 V AC
Input Voltage	415 V AC
Output Voltage	220 V AC
Output Voltage	230 V AC
Output Voltage	240 V AC
Power Rating (Watt)	28.80 kW
Input Current	40 A

Management

Protocols:

IPv4
IPv6
HTTP
HTTPS
SMTP
SNMPv1
SNMPv2
SNMPv3
telnet
SSH
FTP
DHCP
NTP

Physical Characteristics

Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	70" mm
Width	2.2" mm
Depth	2.5" mm
Weight (Approximate)	13.50 lb g

Miscellaneous

Package Contents	PDU3XEVSRHWB 30-Outlet PDU Built-in LX Platform Interface Configuration Cable 30 x Plug-lock Insert Sleeves Rack-mounting Hardware Mounting Bracket Accessory Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
