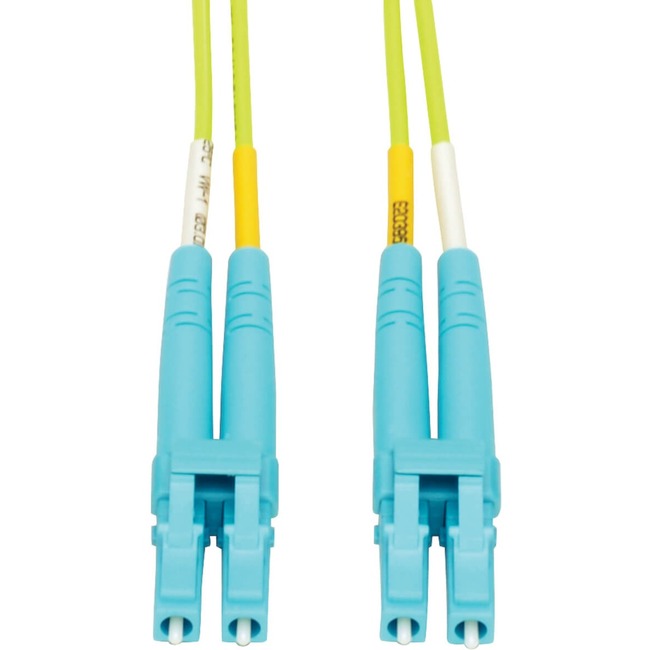

Eaton N820-10M-OM5 Tripp Lite by Eaton 100G Duplex Multimode 50/125 OM5 LSZH Fiber Optic Cable (LC/LC) Lime Green 10 m

Name: Eaton N820-10M-OM5 Tripp Lite by Eaton 100G Duplex Multimode 50/125 OM5 LSZH Fiber Optic Cable (LC/LC) Lime Green 10 m
Brand: Eaton
SKU: N820-10M-OM5
Price: 84.62 USD
Availability: InStock

Part Number:

N820-10M-OM5

408 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

408 pieces ready to ship - additional units ship in 7-10 business days.

$84.62

USD + Applicable Tax

Tripp Lite by Eaton 100G Duplex Multimode 50/125 OM5 LSZH Fiber Optic Cable (LC/LC) Lime Green 10 m - Fiber Optic for Network Device - 12.50 GB/s - Patch Cable - 32.81 ft - 2 x LC Male Network - 2 x LC Male Network - 50/125 µm - Lime Green

Rated OM5 to offer a wideband 50/125 multimode fiber solution
For 40/100 Gb speeds up to 300 meters (at 850 nm)
Laser-optimized for use with cost-effective VCSEL light sources
Lime green jacket for easy OM5 identification; 10 m (33 ft.) cable
Backward compatible with OM3 and OM4 applications

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	N820-10M-OM5
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	N820-10M-OM5
Product Name	N820-10M-OM5 Fiber Optic Duplex Patch Network Cable
Marketing Information	Support Higher Bandwidths in Data Networks with OM5 Multimode 50/125 Fiber Patch Cable As the amount of traffic in data networks grows, so does the need for next generation devices and fiber cables to support higher bandwidths. Tripp Lite's OM5 Duplex Multimode 50/125 Fiber Patch Cable is a wideband multimode fiber (WBMMF) solution that supports at least four wavelengths in the 850-950 nm range. This LC to LC multimode fiber optic patch cable is well-suited for 40/100 Gb Ethernet applications up to 300 meters (at 850 nm). Use with VCSEL Light Sources for a Cost-Effective, High-Bandwidth Solution The N820-10M-OM5 is a laser-optimized multimode fiber (LOMMF) cable designed for use with vertical-cavity surface-emitting lasers (VCSELs) to offer a cost-effective, high-bandwidth solution over extended distances in the 850-950 nm wavelength range. It is commonly used in LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. Experience Reliable Performance with Premium Construction Premium materials ensure this multimode fiber cable reliably carries data and voice signals. The cable has duplex male LC connectors on each end and features a low-smoke zero-halogen (LSZH) jacket that limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The lime green color of the jacket identifies the cable as OM5 rated. It meets current IEEE 802.3ae and TIA LOMMF standards. Employ OM5 Cable for Backward Compatibility and Future Proofing Rated OM5, the N820-10M-OM5 cable is backward compatible with existing OM3- and OM4-rated 50/125 fiber solutions. This LC to LC multimode fiber optic cable can also be used with shortwave wavelength division multiplexing (SWDM) technology to provide transmission over longer distances in the 850-950 nm wavelength range than OM3- and OM4-rated cables. Plus, the OM5 cables will be compatible with SWDM solutions in future networks with even higher bandwidths. Lifetime Warranty The N820-10M-OM5 is backed by a lifetime limited warranty, ensuring reliability and performance. More from the Manufacturer
Product Type	Network Cable

Technical Information

Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Fiber Optic Mode	Multi-mode
Fiber Optic Cable Core/Cladding Specification	50/125 µm
Cable Length	32.80 ft mm
Connector Type on First End	LC Network - Male
Connector on First End Details	2 x LC Network - Male
Connector Type on Second End	LC Network - Male
Connector on Second End Details	2 x LC Network - Male
Device Supported	Network Device
Data Transfer Rate	100 Gbit/s Bps
Features	Halogen Free

Physical Characteristics

Color Family	Green
Product Color	Lime Green

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	China

Warranty

Limited Warranty

Lifetime
