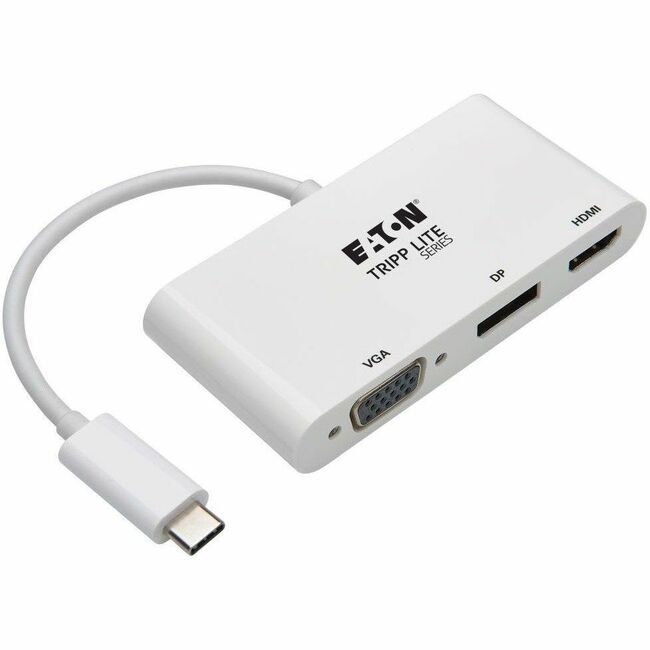

Eaton U444-06N-HVDPW Tripp Lite by Eaton USB-C Triple Display Adapter 4K 60Hz HDMI Displayport and VGA with MST

Name: Eaton U444-06N-HVDPW Tripp Lite by Eaton USB-C Triple Display Adapter 4K 60Hz HDMI Displayport and VGA with MST
Brand: Eaton
SKU: U444-06N-HVDPW
Price: 125.12 USD
Availability: InStock

Part Number:

U444-06N-HVDPW

191 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

191 pieces ready to ship - additional units ship in 7-10 business days.

$125.12

USD + Applicable Tax

Tripp Lite by Eaton USB-C Triple Display Adapter 4K 60Hz HDMI Displayport and VGA with MST - 1 x USB Type C Male Thunderbolt 3 - 1 x HDMI Female Digital Audio/Video, 1 x DisplayPort Female Digital Audio/Video, 1 x HD-15 Female VGA - 3840 x 2160 Supported - Nickel Connector - White

Transmits video signals from laptops and tablets supporting USB-C DisplayPort Alt Mode
Connects DisplayPort/HDMI/VGA with no need to carry separate adapters for each display
DisplayPort/HDMI ports deliver UHD quality at resolutions up to 3840 x 2160 (4K x 2K)
VGA port delivers HD quality at video resolutions up to 1920 x 1200 (including 1080p)
Supports DisplayPort MST mode for playing video on multiple displays at once
3-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	U444-06N-HVDPW
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	U444-06N-HVDPW
Product Name	U444-06N-HVDPW USB-C Multiport Adapter - HDMI/DisplayPort/VGA, White
Marketing Information	Features USB-C All-in-One Adapter Connects DisplayPort/HDMI/VGA Displays to Your USB-C Device No more carrying around separate adapters to match various monitors, projectors and televisions. This USB-C all-in-one adapter connects the USB-C or Thunderbolt 3 port on your tablet, laptop, Chromebook, MacBook, smartphone or PC to a DisplayPort (DP), HDMI or VGA display-or all three at the same time. A simple all-in-one solution for displaying video content on a larger screen, the U444-06N-HVDPW is ideal for creating video walls, giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 4K x 2K. Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers. The U444-06N-HVDPW also supports DisplayPort MST (Multi-Stream Transport) mode, which allows you to show different video on each display, duplicate the same video on all displays, or combine all monitors into one large display. Transmits Crystal-Clear 4K HDMI and DisplayPort Video and Digital Audio To send digital audio and Ultra High Definition video to a 4K-ready HDMI and/or DP television, projector and/or monitor, connect the HDMI and DP ports to the displays with user-supplied cabling (such as Tripp Lite's P569-Series HDMI and P580-Series DP cables). The adapter supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz (HDMI) and 60 Hz (DP). You Can Keep Using Your Current VGA Monitor and Save Money The all-in-one unit also features an HD15 port, in addition to HDMI and DP. This allows you to continue using an existing VGA display, instead of investing money in something new. The HD15 port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Built-In USB-C Cable Connects in Either Direction Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Ready to Use Right Out of the Package The plug-and-play USB-C all-in-one adapter is specifically designed for use with the MacBook, Google Chromebook Pixel and other laptops, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software, drivers or external power. Its low-profile design makes it easy to carry in a briefcase or laptop bag for connecting on the go. Typical Applications Play video from your MacBook or Chromebook on HDMI, DisplayPort and VGA monitors Give a video presentation at a meeting, training session or conference Stream 4K video for digital signage at a trade show Create a video wall showing images from multiple security cameras More from the Manufacturer
Product Type	A/V Adapter

Technical Information

Adapter Type	DisplayPort/HDMI/USB/VGA
Connector Type on First End	USB 3.1 (Gen 1) Type C - Male
Connector on First End Details	1 x USB Type C USB 3.1 Thunderbolt 3 Male
Connector Type on Second End	HDMI 1.4 Digital Audio/Video - Female
Connector Type on Second End	DisplayPort 1.2 Digital Audio/Video - Female
Connector Type on Second End	HD-15 - Female
Connector on Second End Details	1 x HDMI HDMI 1.4 Digital Audio/Video Female
Connector on Second End Details	1 x DisplayPort DisplayPort 1.2 Digital Audio/Video Female
Connector on Second End Details	1 x 15-pin HD-15 VGA Female
Connector Plating	Nickel
Maximum Resolution Supported	3840 x 2160
Features	HDCP 2.2

Physical Characteristics

Color Family	White
Product Color	White
Product Material	Polyvinyl Chloride (PVC)
Product Material	Acrylonitrile Butadiene Styrene (ABS)
Weight (Approximate)	1.41 oz g

Miscellaneous

Package Contents	U444-06N-HVDPW USB-C Multiport Adapter - HDMI/DisplayPort/VGA, White Owner's manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
