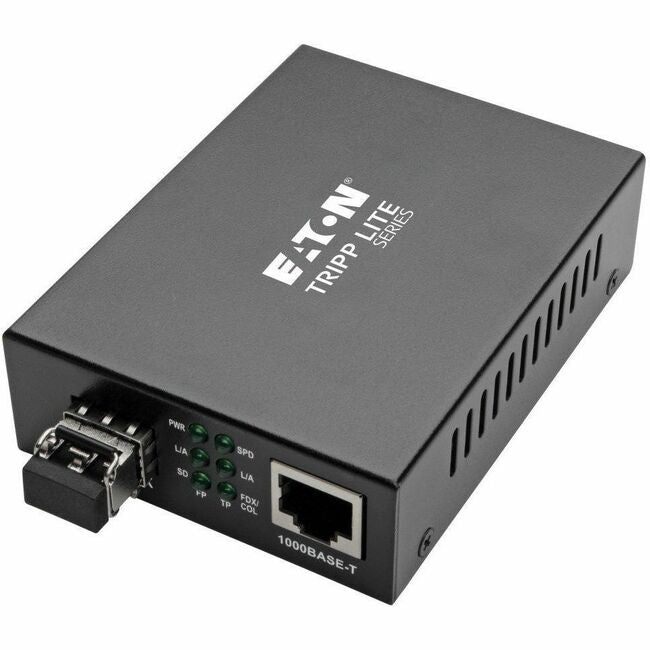

Eaton N785-INT-LC-MM Tripp Lite by Eaton Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 LC, International Power Supply, 850 nm, 550M (1804.46 ft.)

Name: Eaton N785-INT-LC-MM Tripp Lite by Eaton Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 LC, International Power Supply, 850 nm, 550M (1804.46 ft.)
Brand: Eaton
SKU: N785-INT-LC-MM
Price: 300.21 USD
Availability: InStock

Part Number:

N785-INT-LC-MM

700 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

700 pieces ready to ship - additional units ship in 7-10 business days.

$300.21

USD + Applicable Tax

Tripp Lite by Eaton Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 LC, International Power Supply, 850 nm, 550M (1804.46 ft.) - 1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T

Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	N785-INT-LC-MM
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	N785-INT-LC-MM
Product Name	N785-INT-LC-MM Transceivers/Media Converter
Marketing Information	The economical N785-INT-LC-MM Gigabit Multimode Fiber to Ethernet Media Converter allows you to extend your 10/100/1000 Mbps Ethernet connection up to 550 meters (1,804 feet) without the limitations of extra Cat5e/6 UTP cabling. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to use LC multimode fiber optic cabling for greater distances. Use copper UTP cabling to connect one 850 nm N785-INT-LC-MM converter to your network device, such as a computer, and another converter to a network switch. The two converters are connected by a multimode fiber optic cable with LC connectors. The N785-INT-LC-MM supports 50/125 multimode cable up to 550 meters and 62.5/125 multimode cable up to 400 meters. Monitoring and controlling your network nodes is easy with the converter's advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDI-X configuration. Six LEDs indicate the converter's Ethernet network and fiber link status at a glance. The N785-INT-LC-MM includes an external power supply with international plug adapters for North America (NEMA 5-15P), the United Kingdom (BS 1363), Europe (CEE 7/16 Schuko) and Australia (AS/NZS 3112). The plug-and-play fiber-to-copper media converter requires no software or drivers and is easy to set up. Features Extends a Gigabit Ethernet Signal up to 550 m (1,804 ft.) Using LC Multimode Cable Converts UTP copper connection to duplex fiber over long distance, then back to copper at opposite end while auto-sensing the proper speed Fiber optic technology more effective than Cat5e/6 over long distances Supports 50/125 multimode fiber optic cabling up to 550 m Supports 62.5/125 multimode fiber optic cabling up to 400 m Connection requires an N785-INT-LC-MM at both ends Advanced Monitoring and Control Supports automatic sensing of network speed Supports both full-duplex and half-duplex operation Supports automatic MDI/MDI-X configuration 6 LEDs indicate network and fiber link status at a glance Plug-and-Play Operation No additional software or drivers required Compact unit sets up in minutes Durable metal housing designed to last Power supply includes international plug adapters for North America, U.K., Europe and Australia More from the Manufacturer
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of LC Ports	1
LC Port Type	Duplex
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	850 nm mm
Maximum Distance Supported	0.55 km mm
Fiber Optic Cable Core/Cladding Specification	50/125 µm
Fiber Optic Cable Core/Cladding Specification	62.5/125 µm

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T

Power Description

Power Source

AC Adapter

Physical Characteristics

Height	2.5" mm
Width	11.9" mm
Depth	7" mm
Weight (Approximate)	7.20 oz g

Miscellaneous

Country of Origin

China
