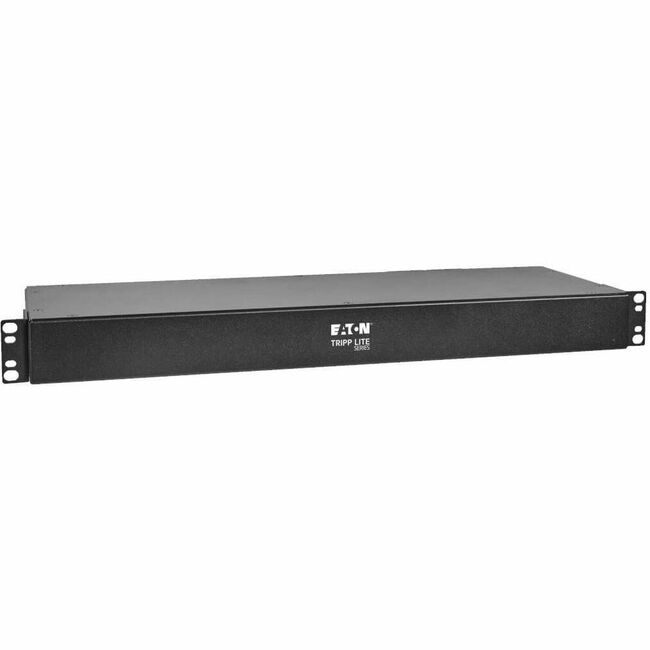

Eaton PDUMH20HVL66 Tripp Lite by Eaton PDU 3.7kW 208/230V Single-Phase Local Metered PDU - 8 C13 & 2 C19 Outlets L6-20P Input 6 ft. Cord 1U TAA

Name: Eaton PDUMH20HVL66 Tripp Lite by Eaton PDU 3.7kW 208/230V Single-Phase Local Metered PDU - 8 C13 & 2 C19 Outlets L6-20P Input 6 ft. Cord 1U TAA
Brand: Eaton
SKU: PDUMH20HVL66
Price: 307.28 USD
Availability: InStock

Part Number:

PDUMH20HVL66

63 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

63 pieces ready to ship - additional units ship in 7-10 business days.

$307.28

USD + Applicable Tax

Tripp Lite by Eaton PDU 3.7kW 208/230V Single-Phase Local Metered PDU - 8 C13 & 2 C19 Outlets L6-20P Input 6 ft. Cord 1U TAA - Metered - NEMA L6-20P - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Horizontal/Vertical - Wall-mountable, Rack-mountable - TAA Compliant

8 C13 and 2 C19 208/240V outlets distribute AC power to connected equipment
Digital ammeter for on-site real-time load monitoring helps prevent power overloads
6 ft. cord with NEMA L6-20P single-phase input connects to AC power source
Flexible installation options include 1U and 0U rack, under counter and on wall
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
2-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMH20HVL66
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	PDUMH20HVL66
Product Name	PDUMH20HVL66 10-Outlets PDU
Marketing Information	Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. Digital Load Meter Helps Prevent Potentially Expensive Overloads A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low. Versatile Installation Options Give You Plenty of Choices The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. The six-foot cord with NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system, generator or mains input source for reliable multi-outlet power distribution. TAA-Compliant for GSA Schedule Purchases The PDUMH20HVL66 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Type	PDU

Technical Information

PDU Type	Metered
Phase	Single Phase
Plug/Connector Type	NEMA L6-20P
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C19
Receptacle Detail	8 x IEC 60320 C13
Receptacle Detail	2 x IEC 60320 C19
Protection Type	Circuit Protection
Protection Type	Overload Protection
Protection Type	Accidental Power Shutdown

Power Description

Input Voltage	230 V AC
Output Voltage	208 V AC
Output Voltage	240 V AC
Power Rating (Watt)	3800 W
Input Current	20 A

Physical Characteristics

Mounting Orientation	Horizontal/Vertical
Mount Type	Wall-mountable
Mount Type	Rack-mountable
Placement	Under-counter
Rack Height	1U
Cord Length	6 ft mm
Height	1.8" mm
Width	17.5" mm
Depth	6.5" mm
Weight (Approximate)	6.80 lb g

Miscellaneous

Package Contents	PDUMH20HVL66 10-Outlets PDU 10 x Plug-lock Insert Sleeves Rack-mounting Hardware Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
