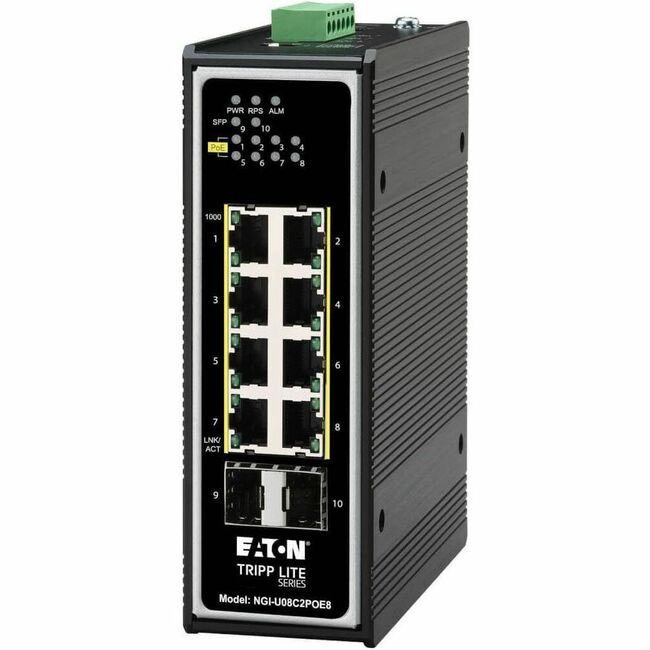

Eaton NGI-U08C2POE8 unmanaged industrial Ethernet switch with 8 ports, PoE+ support, SFP slots, DIN mount, and rugged design.

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton NGI-U08C2POE8 Tripp Lite by Eaton 8-Port Unmanaged Industrial Gigabit Ethernet Switch 10/100/1000 Mbps PoE+ 30W 2 GbE SFP Slots -40° to 75°C DIN Mount

Part Number:

NGI-U08C2POE8

4 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

4 pieces ready to ship - additional units ship in 7-10 business days.

$822.52

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Tripp Lite by Eaton 8-Port Unmanaged Industrial Gigabit Ethernet Switch 10/100/1000 Mbps PoE+ 30W 2 GbE SFP Slots -40° to 75°C DIN Mount - 8 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - 14 W Power Consumption - 240 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - DIN Rail Mountable - 3 Year Limited Warranty

  • Ethernet Switch supports increased network bandwidth availability through data switching
  • Allows connection between standard Ethernet ports to support network extension without changing existing cabling
  • Expand network capacity using 8 networking ports to accommodate additional devices within an existing wired setup
  • Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
  • DIN Rail Mountable form factor supports ease of placement according to installation needs
  • Unmanaged design enables immediate wired network expansion through fixed configuration without manual intervention
  • Gigabit Ethernet ports support higher network data rates than standard Ethernet connections
  • Optical fiber support enables network connections across longer distances for data transmission between network components

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number NGI-U08C2POE8
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Model NGI-U08C2POE8
Product Name NGI-U08C2POE8 Ethernet Switch
Marketing Information

8-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite Power over Ethernet (PoE) switch transmits both power and data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-U08C2POE8 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.

PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This unmanaged switch features eight PoE ports capable of powering compatible devices, such as cameras, sensors, clocks, digital signage and wireless access points, without the need to run separate power lines or install the devices near an AC outlet. The NGI-U08C2POE8 provides PoE+ compatibility up to 30W per port and a PoE budget of 120W at 24VDC or 240W at 48VDC.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U08C2POE8 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08C2POE8 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. A DIP switch supports an alarm relay output in which you can connect an alarm light or buzzer.

Pre-Installed DIN Rail Clip Allows for Convenient Installation
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 6-pin 24-57VDC terminal block supplies power input.
Product Type Ethernet Switch

Interfaces/Ports

Total Number of Network Ports 8
Network (RJ-45) Yes
Uplink Port Yes
Modular Yes
Port/Expansion Slot Details 8 x Gigabit Ethernet PoE+
Port/Expansion Slot Details 2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported Optical Fiber
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Network Technology 1000Base-X

I/O Expansions

Total Number of Expansion Slots 2
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 2

Network & Communication

Layer Supported 2
Networking Standards IEEE 802.3at
Networking Standards IEEE 802.3
Networking Standards IEEE 802.3u
Networking Standards IEEE 802.3ab
Networking Standards IEEE 802.3x
Networking Standards IEEE 802.3z
Networking Standards IEEE 802.1p
Networking Standards IEEE 802.3af
Networking Standards IEEE 802.3az

Management & Protocols

Manageable No

Power Description

PoE (RJ-45) Port Yes
PoE Budget 240 W
Power Consumption 14 W

Physical Characteristics

Product Material Aluminum
Form Factor DIN Rail Mountable
Height 6.3" mm
Width 2" mm
Depth 4.7" mm
Weight (Approximate) 2.03 lb g

Miscellaneous

Package Contents
  • NGI-U08C2POE8 Ethernet Switch
  • DIN Rail-mounting Clip (Pre-installed)
  • Owner's Manual
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin Taiwan
TAA Compliant Yes

Warranty

Limited Warranty 3 Year
