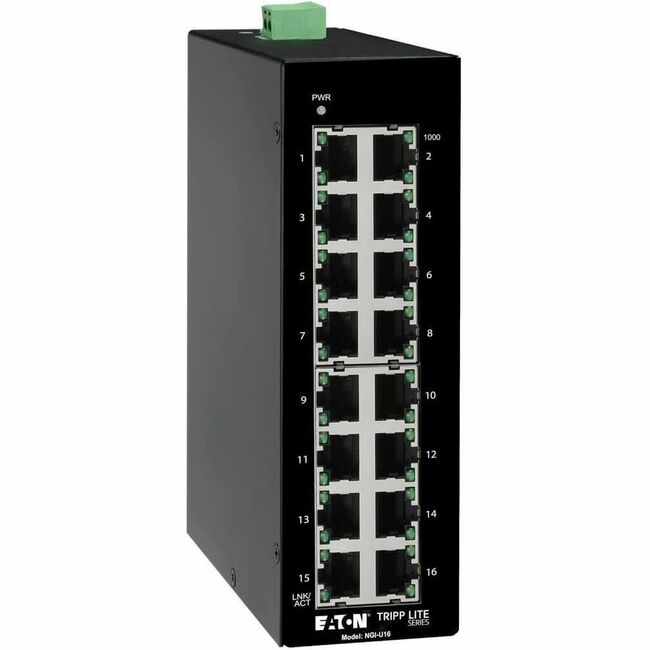

Eaton NGI-U16 16-port unmanaged industrial Gigabit Ethernet switch mounted on DIN rail with LED indicators

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton NGI-U16 Tripp Lite by Eaton 16-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps DIN Mount

Part Number:

NGI-U16

744 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

744 pieces ready to ship - additional units ship in 7-10 business days.

$632.05

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Tripp Lite by Eaton 16-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps DIN Mount - 16 Ports - Gigabit Ethernet - 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - 16 W Power Consumption - Twisted Pair - DIN Rail Mountable - 3 Year Limited Warranty

  • Ethernet Switch supports network continuity by maintaining data transmission during operation
  • Features 16 networking ports to establish a local wired network or extend connectivity within an existing layout
  • Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
  • DIN Rail Mountable form factor supports ease of placement according to installation needs
  • Unmanaged design enables immediate wired network expansion through fixed configuration without manual intervention
  • Gigabit Ethernet ports support higher network data rates than standard Ethernet connections
  • Twisted pair cable support enables cost?efficient network connections for data transmission across distances

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number NGI-U16
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Model NGI-U16
Product Name NGI-U16 Ethernet Switch
Marketing Information

16-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Sixteen auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Rugged Metal Housing Built to Last in Harsh Environments
The compact NGI-U16 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U16 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Pre-Installed DIN Rail Clip Allows for Convenient Installation
The NGI-U16 may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 2-pin 12-48VDC terminal block supplies power input. Device power must be supplied by LPS (Limited Power Source) circuit.

TAA-Compliant for GSA Schedule Purchases
The NGI-U16 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Type Ethernet Switch

Interfaces/Ports

Total Number of Network Ports 16
Network (RJ-45) Yes
Port/Expansion Slot Details 16 x Gigabit Ethernet Network

Media & Performance

Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T

Network & Communication

Layer Supported 2
Networking Standards IEEE 802.3
Networking Standards IEEE 802.3u
Networking Standards IEEE 802.3x

Management & Protocols

Manageable No

Power Description

Power Consumption 16 W

Physical Characteristics

Product Material Metal
Form Factor DIN Rail Mountable
Height 6.3" mm
Width 1.9" mm
Depth 4.7" mm

Miscellaneous

Package Contents
  • NGI-U16 Ethernet Switch
  • DIN Rail-mounting Clip (Pre-installed)
  • Owner's Manual
Environmentally Friendly Yes
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin Taiwan
TAA Compliant Yes

Warranty

Limited Warranty 3 Year
