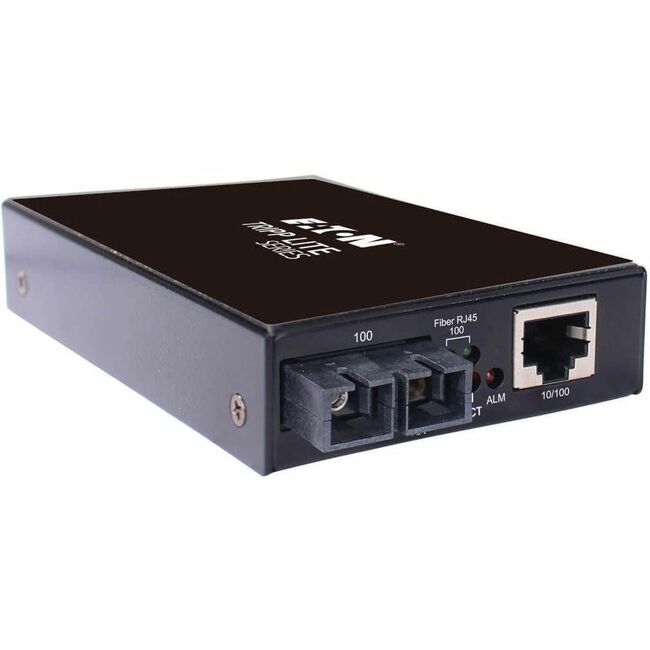

Eaton N784-H01-SCSM Tripp Lite Series Hardened Copper to Fiber Media Converter - 10/100 Mbps, RJ45/SC Singlemode, -10° to 60°C, 30 km (18.6 mi.), TAA

Name: Eaton N784-H01-SCSM Tripp Lite Series Hardened Copper to Fiber Media Converter - 10/100 Mbps, RJ45/SC Singlemode, -10° to 60°C, 30 km (18.6 mi.), TAA
Brand: Eaton
SKU: N784-H01-SCSM
Price: 264.95 USD
Availability: InStock

Part Number:

N784-H01-SCSM

83 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

83 pieces ready to ship - additional units ship in 7-10 business days.

$264.95

USD + Applicable Tax

Eaton Tripp Lite Series Hardened Copper to Fiber Media Converter - 10/100 Mbps, RJ45/SC Singlemode, -10° to 60°C, 30 km (18.6 mi.), TAA - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast Ethernet - 10/100Base-TX, 100Base-FX - Wall Mountable, DIN Rail Mountable, Desktop - TAA Compliant

With Twisted Pair cable, get the desired data transfer rate up to a required distance
Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
The Wall Mountable provides convenient installation

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	N784-H01-SCSM
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	N784-H01-SCSM
Product Name	N784-H01-SCSM Transceiver/Media Converter
Marketing Information	Features \| Extends a Network Connection up to 30 km over SC Singlemode Fiber Optic Cable This network media converter converts a copper Ethernet signal to a singlemode fiber optic signal and extends it to a second network device up to 30 kilometers (18.6 miles) away. Because copper Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N784-H01-SCSM with singlemode fiber cable to reach hubs, switches and other 10/100Base-TX/FX network devices located farther away. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling. Monitor Your Installation with Link Fault Signaling and Loop Back Functions Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off. LEDs Indicate Installation Performance and Diagnostic Functions Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power. Protective Metal Housing Built to Withstand a Variety of Hazards The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting. Works in Tandem with Tripp Lite's N785-CH12 Chassis House and power up to 12 Tripp Lite media converters, including the N784-H01-SCSM, using the N785-CH12 12-port chassis (sold separately) to create an organized installation. TAA-Compliant for GSA Schedule Purchases The N784-H01-SCSM is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm mm
Maximum Distance Supported	30 km mm

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX
Network Technology	100Base-FX

Power Description

Power Source	AC Adapter
Power Consumption	1.80 W
Plug/Connector Type	NEMA 1-15P

Physical Characteristics

Form Factor	Wall Mountable
Form Factor	DIN Rail Mountable
Form Factor	Desktop
Height	0.9" mm
Width	2.9" mm
Depth	4.3" mm
Weight (Approximate)	8.43 oz g

Miscellaneous

Package Contents	N784-H01-SCSM Transceiver/Media Converter L-shaped Bracket Rubber Foot SC Connector Cap External Power Supply with NEMA 1-15P Plug (Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC 1.5A) DIN Rail Kit Wall-mounting Hardware Quick Start Guide
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

2 Year
