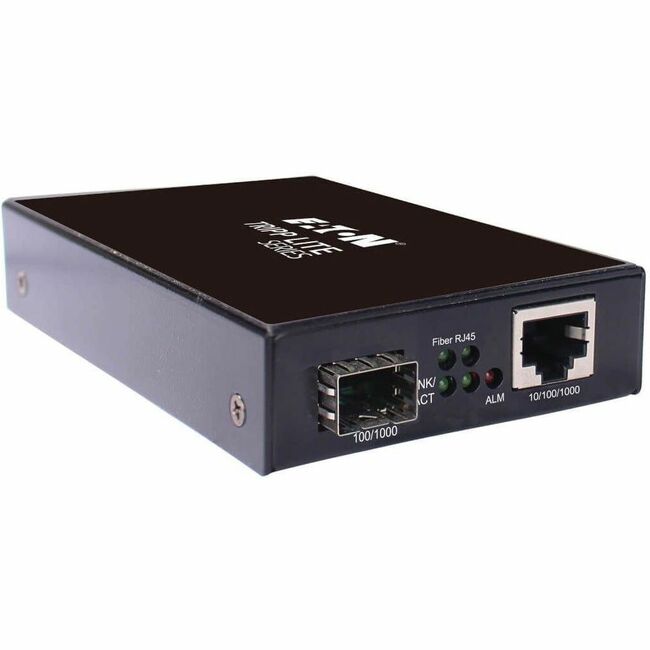

Eaton N785-H01-SFP Gigabit fiber to Ethernet media converter with RJ45 and SFP ports, suitable for industrial environments.

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton N785-H01-SFP Tripp Lite by Eaton Hardened Gigabit Fiber to Ethernet Media Converter 10/100/1000 Mbps RJ45/SFP -10° to 60°C

Part Number:

N785-H01-SFP

522 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

522 pieces ready to ship - additional units ship in 7-10 business days.

$215.79

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Tripp Lite by Eaton Hardened Gigabit Fiber to Ethernet Media Converter 10/100/1000 Mbps RJ45/SFP -10° to 60°C - 1 x Network (RJ-45) - Multi-mode, Single-mode - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - DIN Rail Mountable, Wall Mountable, Desktop - TAA Compliant

  • Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
  • Connect different types of media within a network with this single port
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
  • The DIN Rail Mountable provides convenient installation

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number N785-H01-SFP
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Model N785-H01-SFP
Product Name N785-H01-SFP Transceiver/Media Converter
Marketing Information

Features | Customize a Network Extension over Fiber Optic Cable
This network media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.

Monitor Your Installation with Link Fault Signaling and Loop Back Functions
Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.

LEDs Indicate Installation Performance and Diagnostic Functions
Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power.

Protective Metal Housing Built to Withstand a Variety of Hazards
The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting.

Works in Tandem with Tripp Lite's N785-CH12 Chassis
House and power up to 12 Tripp Lite media converters, including the N785-H01-SFP, using the N785-CH12 12-port chassis (sold separately) to create an organized installation.

TAA-Compliant for GSA Schedule Purchases
The N785-H01-SFP is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Type Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 1

Media & Performance

Media Type Supported Twisted Pair
Media Type Supported Optical Fiber
Fiber Mode Supported Multi-mode
Fiber Mode Supported Single-mode
Maximum Distance Supported 0.10 km mm

I/O Expansions

Total Number of Expansion Slots 1
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 1

Network & Communication

Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Network Technology 100/1000Base-X

Power Description

Power Source AC Adapter
Power Consumption 1.80 W
Plug/Connector Type NEMA 5-15P

Physical Characteristics

Form Factor DIN Rail Mountable
Form Factor Wall Mountable
Form Factor Desktop
Height 0.9" mm
Width 2.9" mm
Depth 4.3" mm
Weight (Approximate) 8.43 oz g

Miscellaneous

Package Contents
  • N785-H01-SFP Transceiver/Media Converter
  • L-shaped Bracket
  • Rubber Foot
  • SFP Connector Cap
  • External Power Supply with NEMA 1-15P Plug
  • DIN Rail Kit
  • Wall-mounting Hardware
  • Quick Start Guide
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin Taiwan
TAA Compliant Yes

Warranty

Limited Warranty 2 Year
